Stop Lamp Switch Replacement (Non-Adjustable Pedal)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

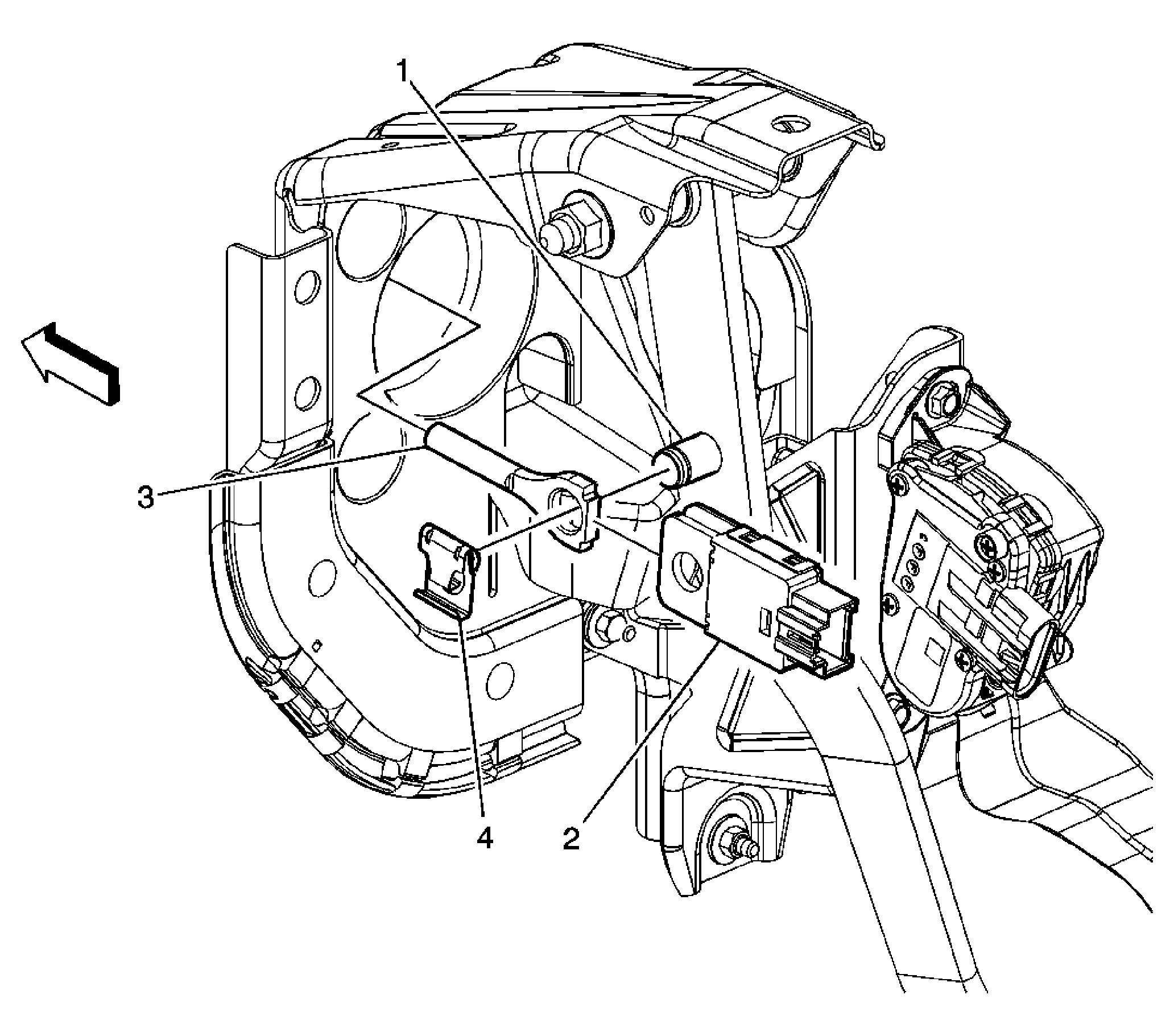

Fig 1: Stop Lamp Switch Replacement (Non-Adjustable Pedal)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Pin
2	Stop Lamp Switch Assembly Tip: Disconnect electrical connector.
3	Brake Booster Push Rod
4	Stop Lamp Switch Assembly Retainer
