Antilock Brake System Schematics

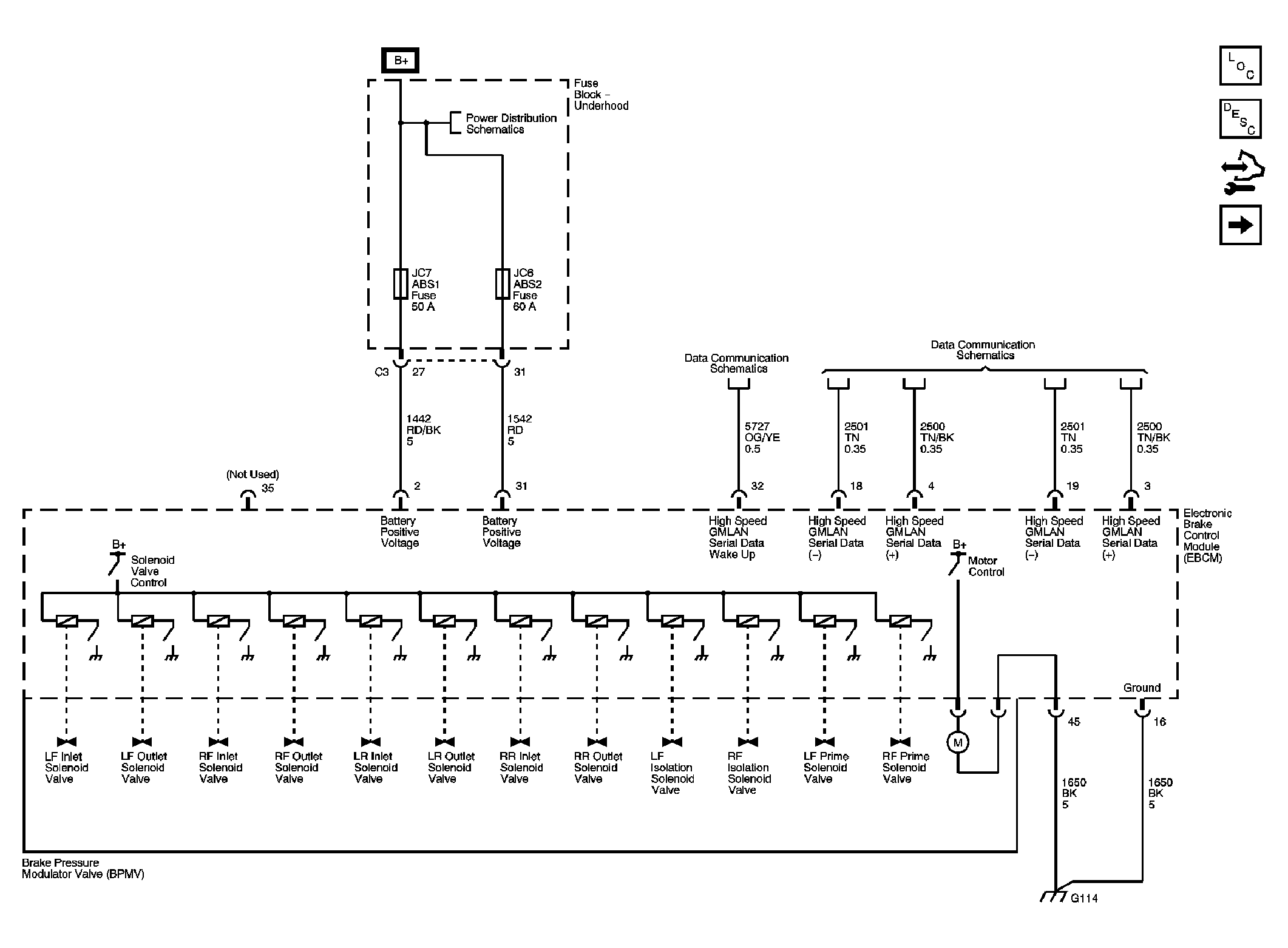

Fig 1: Power and Ground Schematics

Courtesy of GENERAL MOTORS CORP.

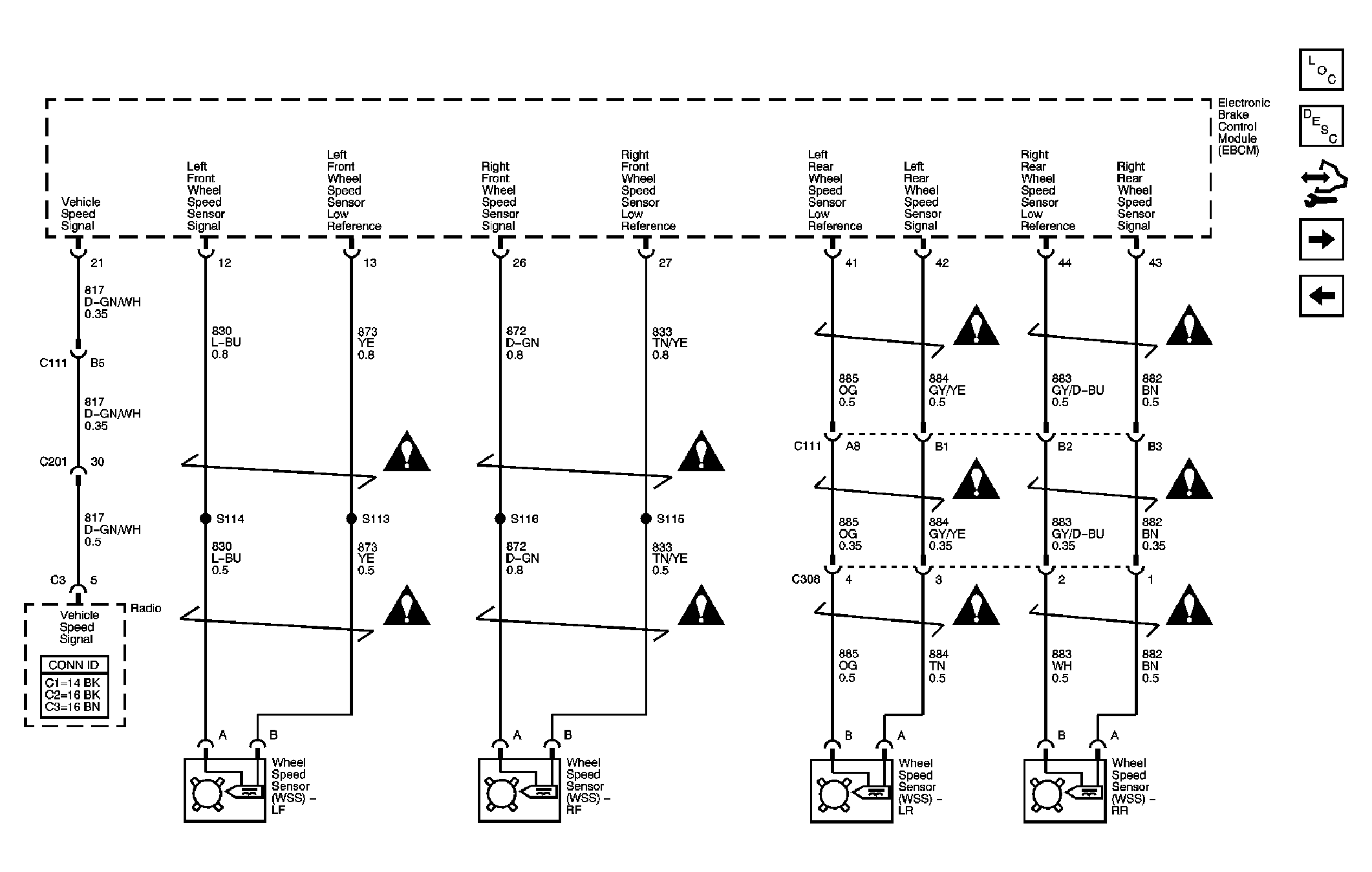

Fig 2: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

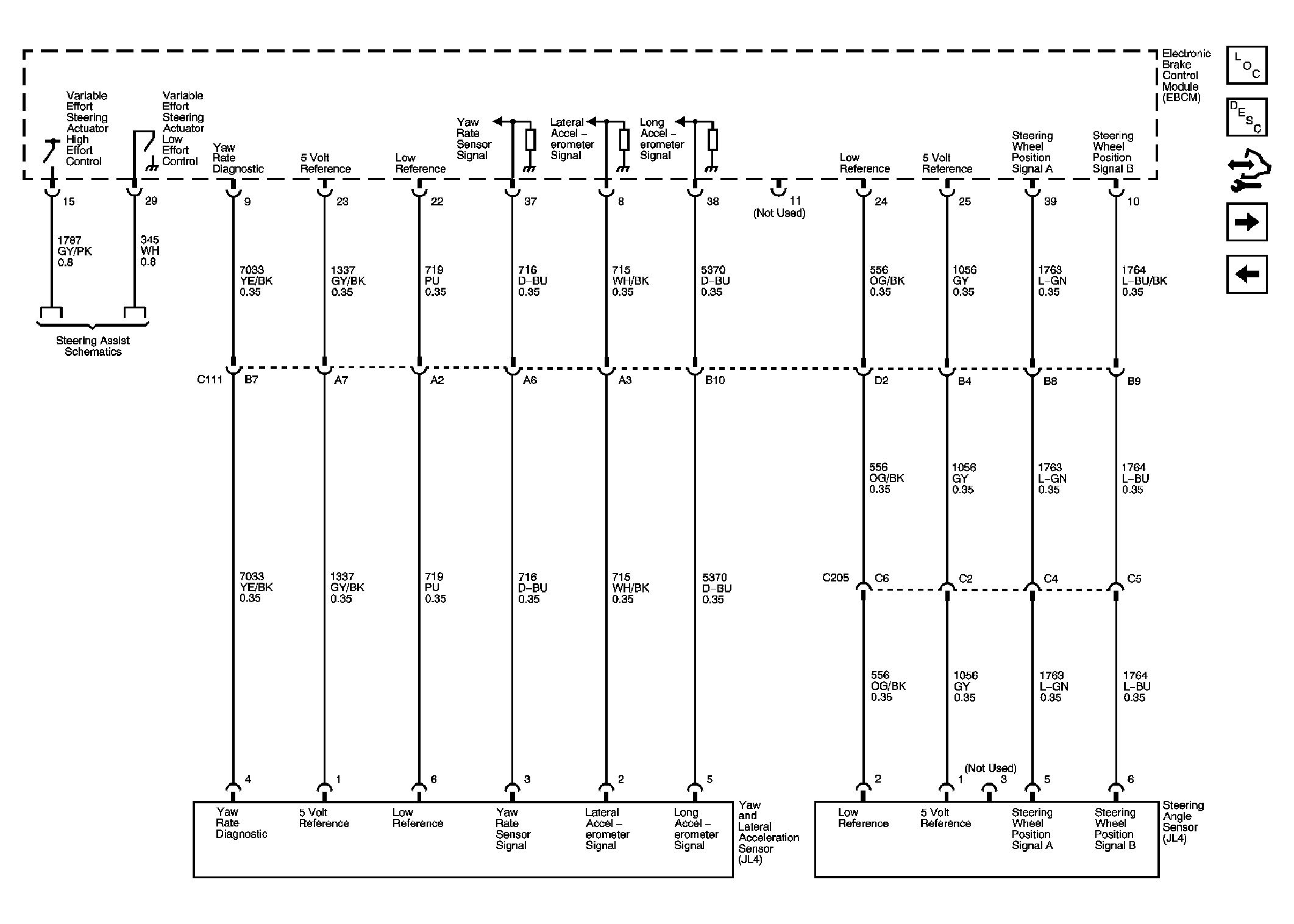

Fig 3: Yaw and Lateral Acceleration, Steering Angle Sensor Schematics

Courtesy of GENERAL MOTORS CORP.

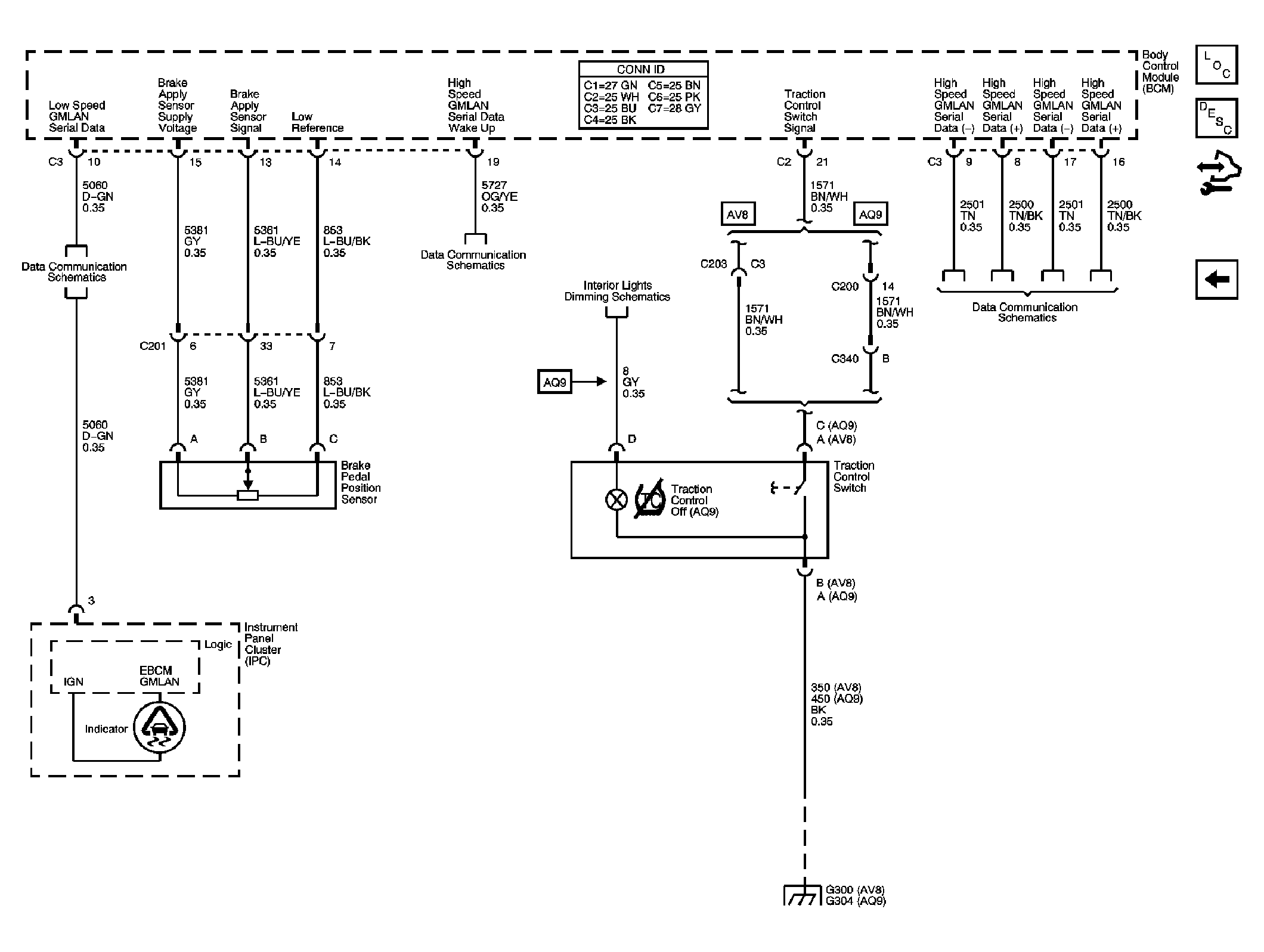

Fig 4: Brake Pedal Position, Traction Control Switch, Data Link Communications Schematics

Courtesy of GENERAL MOTORS CORP.
