Cruise Control Schematics

WARNING: This page is about a different car, the 2006 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

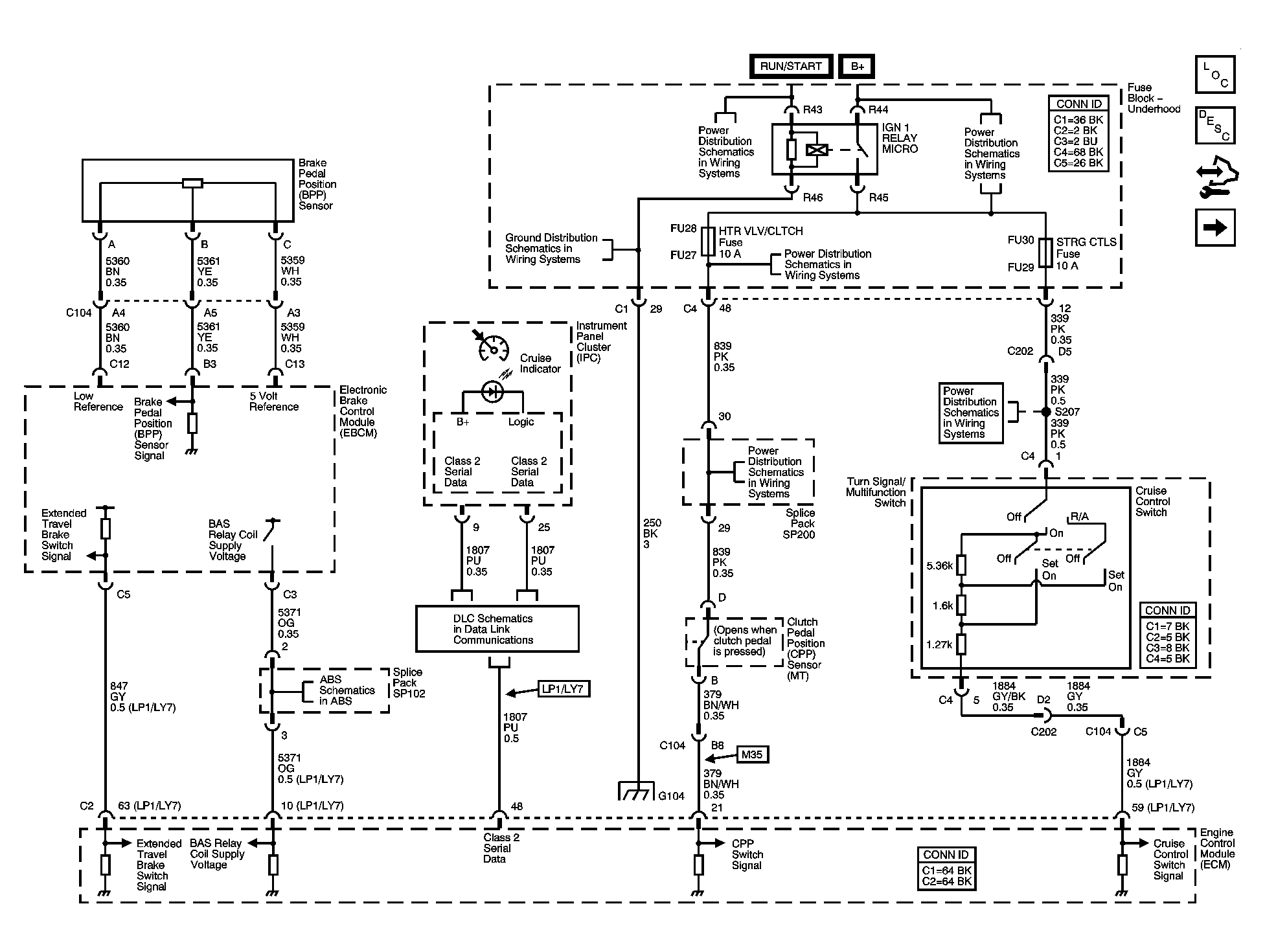

Fig 1: Cruise Control System - 2.8L/3.6L (LP1/LY7)
GM1471103Courtesy of GENERAL MOTORS CORP.

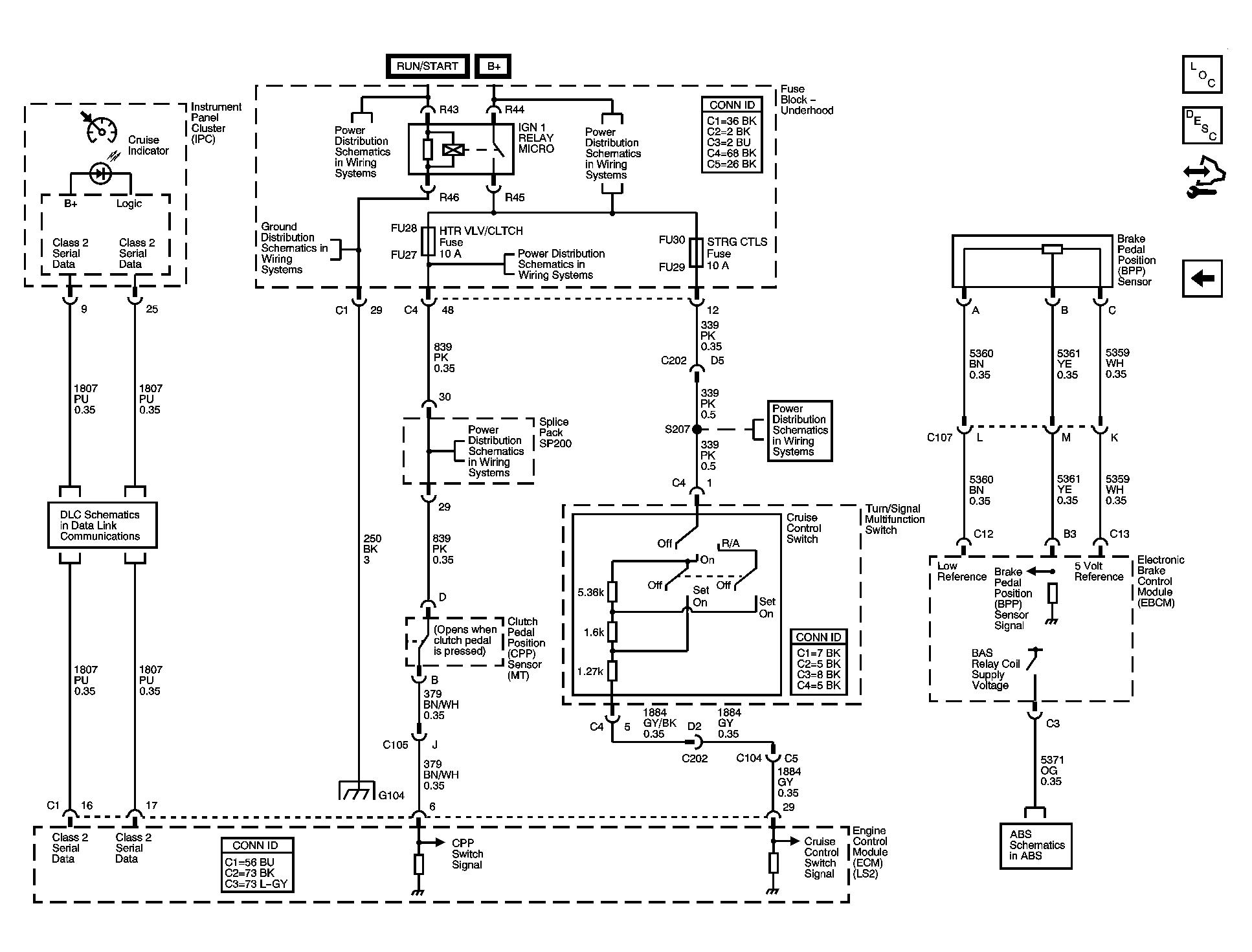

Fig 2: Cruise Control System - 6.0L (LS2)
GM1615095Courtesy of GENERAL MOTORS CORP.
