Steering Wheel Secondary/Configurable Control Schematics

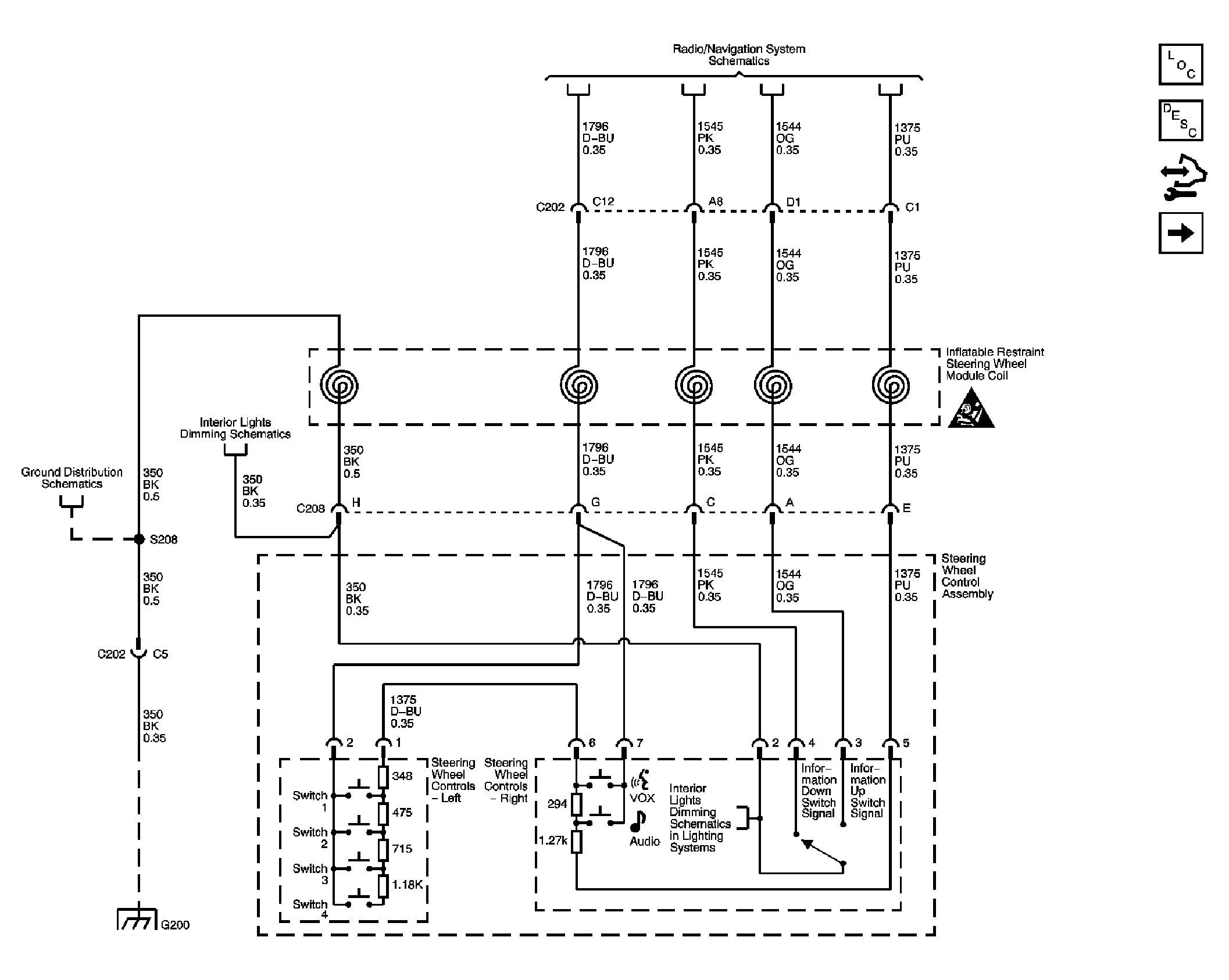

Fig 1: Steering Wheel Secondary/Configurable Controls - LP1/LY7 (2.8L/3.6L)
GM1784971Courtesy of GENERAL MOTORS CORP.

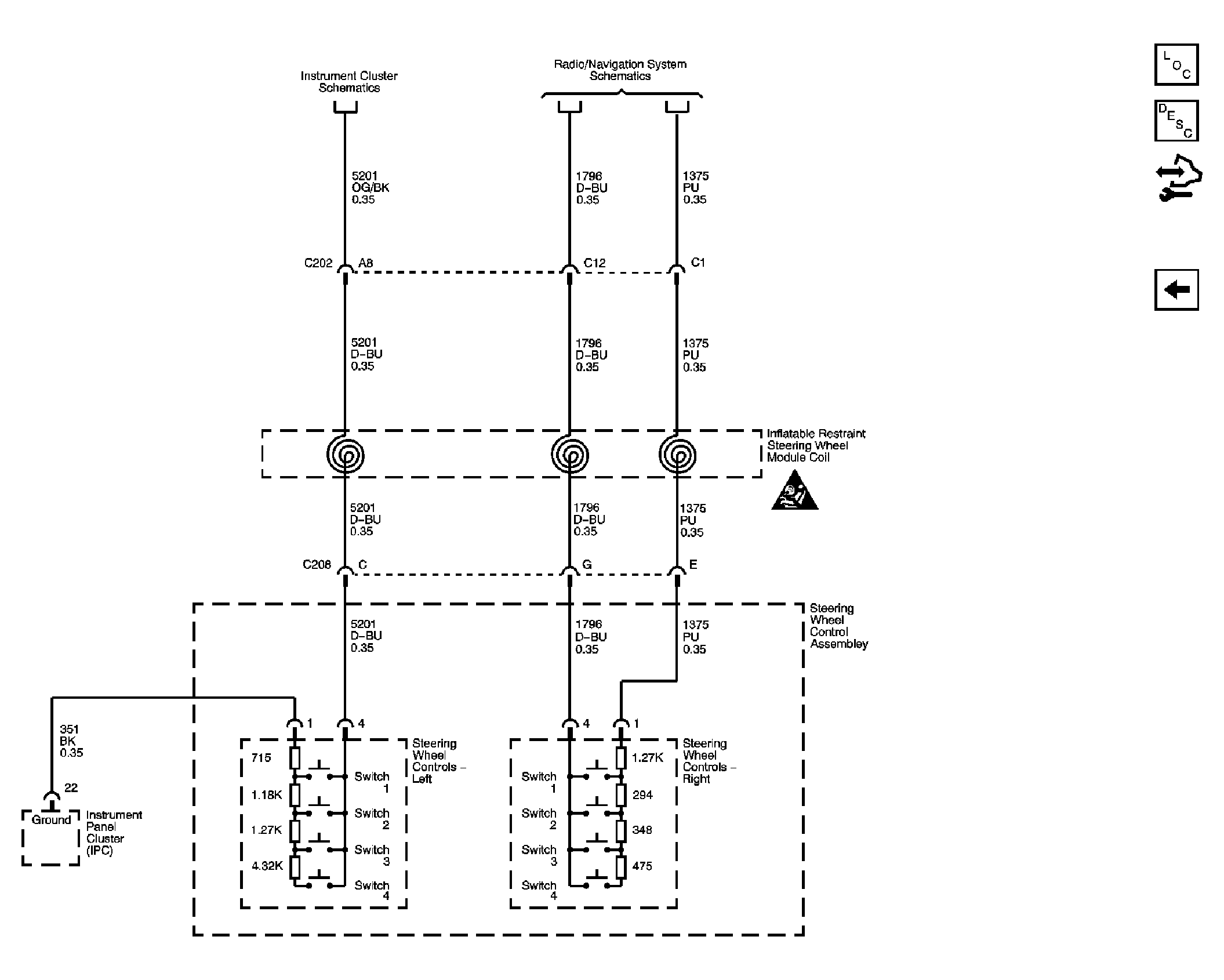

Fig 2: Steering Wheel Secondary/Configurable Controls - 6.0L (LS2)
GM1784977Courtesy of GENERAL MOTORS CORP.
