Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

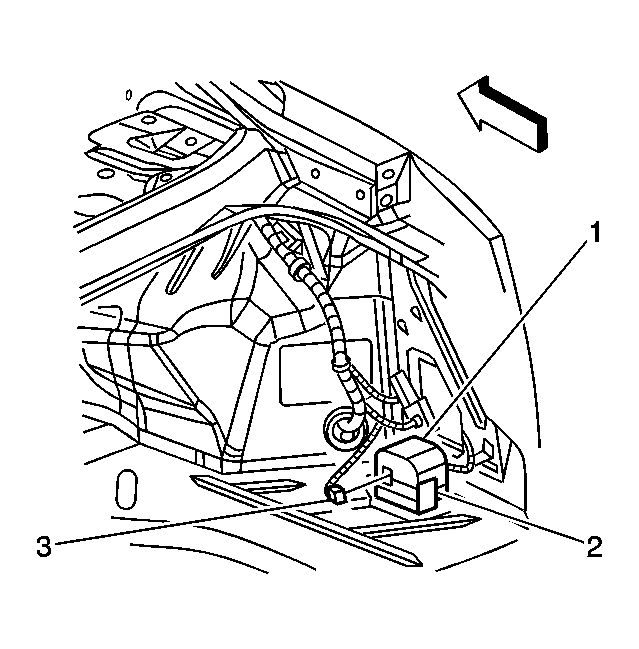

    Fig 1: Identifying Theft Deterrent Inclination Sensor & Theft Deterrent Alarm
    GM899939Courtesy of GENERAL MOTORS CORP.
  1. Reconnect the electrical connector to the sensor.
  2. Install the inclination sensor (2) onto the theft deterrent alarm (1).
  3. Install the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
