SIR Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

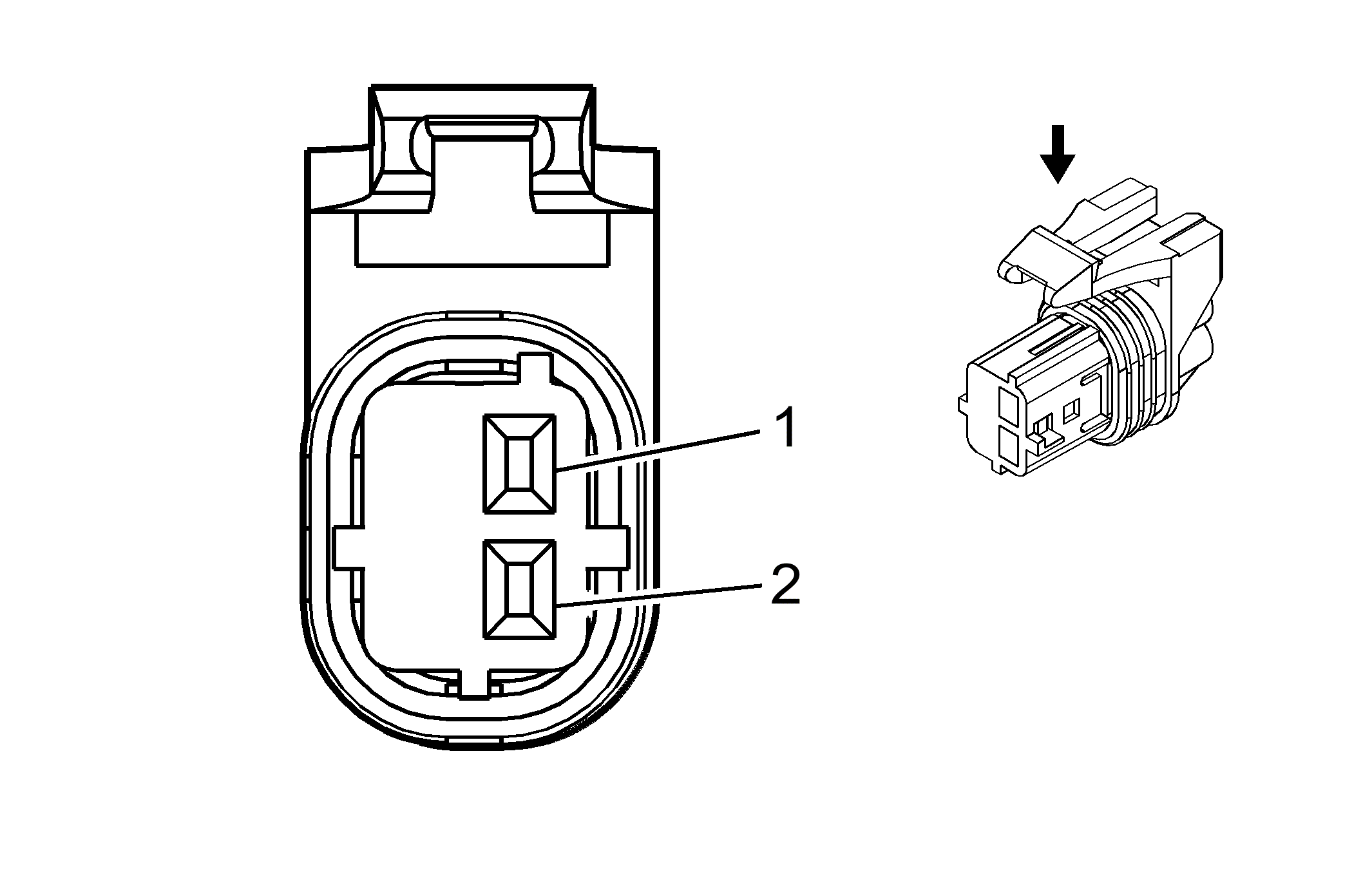

Inflatable Restraint Front End Sensor Terminal Identification - Left

GM1409647Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356726
  • 2-Way F GT 150 Series (YE)
Pin Wire Color Circuit No. Function
1 TN/OG 5045 Discriminating Sensor - Low Reference
2 YE 354 Discriminating Sensor - Signal
Inflatable Restraint Front End Sensor Terminal Identification - Right

GM1409647Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356726
  • 2-Way F GT 150 Series (YE)
Pin Wire Color Circuit No. Function
1 GY 5600 Discriminating Sensor - Low Reference
2 D-GN 1409 Discriminating Sensor Signal
Inflatable Restraint I/P Module Terminal Identification

GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336476
  • 4-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function
A1 YE 3025 I/P Module - Stage 1 - High Control
A2 OG 3024 I/P Module - Stage 1 - Low Control
B1 GY 3027 I/P Module - Stage 2 - High Control
B2 PU 3026 I/P Module - Stage 2 - Low Control
Inflatable Restraint Roof Rail Module Terminal Identification - Left (AY0)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function
A PU/WH 5019 Roof Rail Module - Left - High Control
B PK 5020 Roof Rail Module - Left - Low Control
Inflatable Restraint Roof Rail Module Terminal Identification - Right (AY0)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function
A YE/BK 5021 Roof Rail Module - Right - High Control
B WH/BK 5022 Roof Rail Module - Right - Low Control
Inflatable Restraint Sensing and Diagnostic Module (SDM) Terminal Identification

GM1283879Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15430738
  • 34-Way F Micro-Pack 100W Series (YE)
Pin Wire Color Circuit No. Function
1 PK 1139 Ignition 1 Voltage
2 - - Not Available
3 TN/WH 238 Seat Belt Switch - Left
4 - - Not Available
5 YE 354 Discriminating Sensor - Signal
6 D-GN 1409 Discriminating Sensor - Right - Signal
7 YE 2131 Side Impact Sensing Module - Left - Voltage
8 TN 2133 Side Impact Sensing Module - Right - Voltage
9 YE 3025 I/P Module - Stage 1 - High Control
10 OG 3024 I/P Module - Stage 1 - High Control
11 PK 5017 Seat Belt Switch - Left - Low Reference
12 BN 3020 Steering Wheel Module - Stage 1 - Low Control
13 TN 3021 Steering Wheel Module - Stage 1 - High Control
14 GY 2103 Side Impact Module - Right - High Control
15 D-BU 2104 Side Impact Module - Right - Low Control
16 BN 2106 Side Impact Module - Left - Low Control
17 D-GN 2105 Side Impact Module - Left - High Control
18 YE/BK 5021 Roof Rail Module - Right - High Control
19 WH/BK 5022 Roof Rail Module - Right - Low Control
20 PK 5020 Roof Rail Module - Left - Low Control
21 PU/WH 5019 Roof Rail Module - Left - High Control
22 PU 1807 Class 2 Serial Data
23 PU 1807 Class 2 Serial Data
24-25 - - Not Available
26 TN/OG 5045 Discriminating Sensor - Low Reference
27 GY 5600 Discriminating Sensor - Low Reference
28 WH 2132 Side Impact Sensing Module - Left - Signal
29 D-GN 2134 Side Impact Sensing Module - Right - Signal
30 GY 3027 I/P Module - Stage 2 - High Control
31 PU 3026 I/P Module - Stage 2 - Low Control
32 BK/WH 1751 Ground
33 PK 3022 Steering Wheel Module - Stage 2 - Low Control
34 WH 3023 Steering Wheel Module - Stage 2 - High Control
35 L-GN 2116 Seat Belt Pretensioner - Right - High Control
36 OG 2117 Seat Belt Pretensioner - Right - Low Control
37 OG/BK 2119 Seat Belt Pretensioner - Left - Low Control
38 TN/WH 2118 Seat Belt Pretensioner - Left - High Control
39-42 - - Not Available
Inflatable Restraint Seat Belt Pretensioner Terminal Identification - Left

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA252912048
  • 2-Way F (PU/YE)
Pin Wire Color Circuit No. Function
1 BK 2118 Seat Belt Pretensioner - Left - High Control
2 WH 2119 Seat Belt Pretensioner - Left - Low Control
Inflatable Restraint Seat Belt Pretensioner Terminal Identification - Right

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA252912048
  • 2-Way F (PU/YE)
Pin Wire Color Circuit No. Function
1 BK 2116 Seat Belt Pretensioner - Right - High Control
2 WH 2117 Seat Belt Pretensioner - Right - Low Control
Inflatable Restraint Side Impact Module Terminal Identification - Left

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA252912048
  • 2-Way F (PU/YE)
Pin Wire Color Circuit No. Function
1 WH 2105 Side Impact Module - Left - High Control
2 D-GN 2106 Side Impact Module - Left - Low Control
Inflatable Restraint Side Impact Module Terminal Identification - Right

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA252912048
  • 2-Way F (PU/YE)
Pin Wire Color Circuit No. Function
1 WH 2103 Side Impact Module - Right - High Control
2 D-GN 2104 Side Impact Module - Right - Low Control
Inflatable Restraint Side Impact Sensing Module (SISM) Terminal Identification - Left

GM744046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356723
  • 2-Way F GT 150 Series, Sealed (YE)
Pin Wire Color Circuit No. Function
A WH 2132 Side Impact Sensing Module - Left - Signal
B YE 2131 Side Impact Sensing Module - Left - Voltage
Inflatable Restraint Side Impact Sensing Module (SISM) Terminal Identification - Right

GM744046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356723
  • 2-Way F GT 150 Series, Sealed (YE)
Pin Wire Color Circuit No. Function
A D-GN 2134 Side Impact Sensing Module - Right - Signal
B TN 2133 Side Impact Sensing Module - Right - Voltage
Inflatable Restraint Steering Wheel Module C1 Terminal Identification

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA-252-92-4R
  • 2-Way F (GY/YE)
Pin Wire Color Circuit No. Function
1 TN 3021 Steering Wheel Module - Stage 1 - High Control
2 BN 3020 Steering Wheel Module - Stage 1 - Low Control
Inflatable Restraint Steering Wheel Module C2 Terminal Identification

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA-252-92-5Q
  • 2-Way F (PU/YE)
Pin Wire Color Circuit No. Function
1 WH 3023 Steering Wheel Module - Stage 2 - High Control
2 PK 3022 Steering Wheel Module - Stage 2 - Low Control
