Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Folding Seat Horizontal Motor Assembly (AM0) Terminal Identification

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 YE 5464 Folding Seat Horizontal Motor Rearward Control
2 WH 5465 Folding Seat Horizontal Motor Forward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 OG 5471 Folding Seat Horizontal Position Sensor Signal
Folding Seat Recline Motor Assembly (AM0) Terminal Identification

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 YE/BK 5468 Folding Seat Back Recline Motor Forward Control
2 GY 5469 Folding Seat Back Recline Motor Rearward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 PK 5472 Folding Seat Recline Position Sensor Signal
Folding Seat Recline Switch (AM0) Terminal Identification

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C L-BU 5368 Folding Seat Recline Switch Signal
D - - Not Used
Folding Seat Rotation Motor Assembly (AM0) Terminal Identification

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 D-GN 5467 Folding Seat Back Rotation Motor Forward Control
2 D-BU 5466 Folding Seat Back Rotation Motor Rearward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 PU/WH 5473 Folding Seat Rotation Position Sensor Signal
Folding Seat Stow Switch Terminal Identification - Front (AM0)

GM1283883Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419483
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C D-BU 5366 Folding Seat Front Stow Switch Signal
D - - Not Used
Folding Seat Stow Switch Terminal Identification - Rear (AM0)

GM1283883Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419483
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C D-BU/WH 5367 Folding Seat Rear Stow Switch Signal
D - - Not Used
Heated Seat Control Module Terminal Identification - Driver C1 (KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A RD/WH 2440 Battery Positive Voltage
B BN 41 Ignition 3 Voltage
C L-BU/WH 181 Heated Seat Control Module Status Signal
D - - Not Used
E PK 1501 Driver Heated Seat High/Low Signal
F-J - - Not Used
K BK 550 Ground
Heated Seat Control Module Terminal Identification - Driver C2 (KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A YE 9529 Heated Seat Element Supply Voltage
B - - Not Used
C YE 9530 Heated Seat Element Control
D BK/RD 9534 Heated Seat Temperature Sensor Low Reference
E - - Not Used
F BK/RD 9533 Heated Seat Temperature Sensor Signal
Heated Seat Control Module Terminal Identification - Passenger C1 (KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A OG 2540 Battery Positive Voltage
B BN 41 Ignition 3 Voltage
C L-BU/WH 2181 Passenger Heated Seat Control Module Status Signal
D - - Not Used
E PK 1503 Passenger Heated Seat High/Low Signal
F-J - - Not Used
K BK 550 Ground
Heated Seat Control Module Terminal Identification - Passenger C2 (KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A YE 9529 Heated Seat Element Supply Voltage
B - - Not Used
C YE 9530 Heated Seat Element Control
D BK/RD 9534 Heated Seat Temperature Sensor Low Reference
E - - Not Used
F BK/RD 9533 Heated Seat Temperature Sensor Signal
Memory Seat Module Terminal Identification - Driver C1 (A45)

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 3740 Battery Positive Voltage
B BK 550 Ground
Memory Seat Module Terminal Identification - Driver C2 (A45)

GM258912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110113
  • 32-Way F Micro-Pack 100 Series (RD)
Pin Wire Color Circuit No. Function
A1 D-GN 1518 Power Seat Front Vertical Up Switch Signal
A2 YE 1519 Power Seat Rear Vertical Up Switch Signal
A3 D-BU 1520 Power Seat Front Vertical Down Switch Signal
A4 L-BU 1521 Power Seat Rear Vertical Down Switch Signal
A5 TN 1522 Power Seat Horizontal Forward Switch Signal
A6 L-GN 1523 Power Seat Horizontal Rearward Switch Signal
A7 GY/BK 1269 Power Seat Recline Forward Switch Signal
A8 D-GN/WH 1270 Power Seat Recline Rearward Switch Signal
A9 D-BU 1064 Driver Seat Lumbar Rearward Switch Signal (AL2)
A10 YE 1065 Driver Seat Lumbar Forward Switch Signal (AL2)
A11-A12 - - Not Used
A13 GY 788 5-Volt Reference
A14 BN/WH 557 Front Vertical Seat Motor Position Sensor Signal
A15 TN 782 Memory Seat/Mirror Sensor Low Reference
A16 D-GN 569 Horizontal Seat Motor Position Sensor Signal
B1 TN 568 Rear Vertical Seat Motor Position Sensor Signal
B2 WH/BK 570 Driver Seat Recline Motor Position Sensor Signal
B3 YE 1063 Driver Seat Lumbar Horizontal Position Sensor Signal (AL2)
B4 D-GN 5953 Adjustable Accelerator Pedal Position Sensor Signal (JF4)
B5 - - Not Used
B6 D-BU 5952 Adjustable Brake Pedal Position Sensor Signal
B7-B8 - - Not Used
B9 PU 5286 Adjustable Pedals Motor Forward Control (JF4)
B10 OG/BK 5285 Adjustable Pedals Motor Rearward Control (JF4)
B11 RD/WH 2840 Battery Positive Voltage
B12-B13 - - Not Used
B14 PU 1807 Class 2 Serial Data
B15-B16 - - Not Used
Memory Seat Module Terminal Identification - Driver C3 (A45)

GM283847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129431
  • 16-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 286 Driver Seat Front Vertical Motor Up Control
B D-BU 611 Driver Seat Lumbar Motor Forward Control (AL2)
C-E - - Not Used
F L-GN 276 Driver Seat Recline Motor Forward Control
G L-BU 277 Driver Seat Recline Motor Rearward Control
H YE 5129 Adjustable Pedals Relay Rearward Control (JF4)
J PU 5130 Adjustable Pedals Relay Forward Control (JF4)
K - - Not Used
L PK 610 Driver Seat Lumbar Motor Rearward Control (AL2)
M D-BU 287 Driver Seat Front Vertical Motor Down Control
N TN 285 Driver Seat Horizontal Motor Forward Control
P L-BU 283 Driver Seat Rear Vertical Motor Down Control
R YE 282 Driver Seat Rear Vertical Motor Up Control
S L-GN 284 Driver Seat Horizontal Motor Rearward Control
Memory Seat Switch (A45) Terminal Identification

GM814536Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174966
  • 4-Way F AMP Multi-Lock (BK)
Pin Wire Color Circuit No. Function
1 YE 1491 Backlight Lamps Control
2 PU 616 Memory 2 Switch Signal
3 BK/WH 351 Ground
4 WH 615 Memory 1 Switch Signal
Rear Seat Module C1 (AM0) Terminal Identification

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 140 Battery Positive Voltage
B BK 1050 Ground
Rear Seat Module C2 (AM0) Terminal Identification

GM73157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110114
  • 32-Way F Micro-Pack 100 Series (WH)
Pin Wire Color Circuit No. Function
C1-C3 - - Not Used
C4 PK 5472 Folding Seat Recline Position Sensor Signal
C5 PU/WH 5473 Folding Seat Rotation Position Sensor Signal
C6 - - Not Used
C7 OG 5471 Folding Seat Horizontal Position Sensor Signal
C8-C9 - - Not Used
C10 L-GN 5698 Load Floor Position Switch Signal
C11 PU 5470 Back Panel Position Switch Signal
C12 D-BU 5366 Folding Seat Front Stow Switch Signal
C13 L-BU 5368 Folding Seat Recline Switch Signal
C14 - - Not Used
C15 D-BU/WH 5367 Folding Seat Rear Stow Switch Signal
C16 PU 1807 Class 2 Serial Data
D1 YE/BK 5701 Load Floor Position Switch Supply Voltage
D2 L-BU/WH 5700 Back Panel Position Switch Supply Voltage
D3-D14 - - Not Used
D15 BN 5474 Folding Seat Position Sensor Low Reference
D16 - - Not Used
Rear Seat Module C3 (AM0) Terminal Identification

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16-Way F Metri-Pack 280 Series (GY)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C YE/BK 5468 Folding Seat Back Recline Motor Forward Control
D - - Not Used
E D-BU 5466 Folding Seat Back Rotation Motor Rearward Control
F-H - - Not Used
J WH 5465 Folding Seat Horizontal Motor Forward Control
K GY 5469 Folding Seat Back Recline Motor Rearward Control
L D-GN 5467 Folding Seat Back Rotation Motor Forward Control
M-N - - Not Used
P YE 5494 Folding Seat Horizontal Motor Rearward Control
R-S - - Not Used
Seat Adjuster Switch Terminal Identification - Driver (w/o A45)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 77 Driver Seat Recline Motor Rearward
B D-GN 76 Driver Seat Recline Motor Forward
C BK 550 Ground
D L-GN 290 Driver Seat Horizontal Motor Rearward Control
E TN 296 Driver Seat Horizontal Motor Forward Control
F RD/WH 3740 Battery Positive Voltage
G-H - - Not Used
J L-BU 289 Driver Seat Rear Vertical Motor Down Control
K YE 288 Driver Seat Rear Vertical Motor Up Control
L D-BU 298 Driver Seat Front Vertical Motor Down Control
M D-GN 297 Driver Seat Front Vertical Motor Up Control
Seat Adjuster Switch Terminal Identification - Driver (A45)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN/WH 1270 Power Seat Recline Rearward Switch Signal
B GY/BK 1269 Power Seat Recline Forward Switch Signal
C - - Not Used
D L-GN 1523 Power Seat Horizontal Rearward Switch Signal
E TN 1522 Power Seat Horizontal Forward Switch Signal
F RD/WH 2840 Battery Positive Voltage
G-H - - Not Used
J L-BU 1521 Power Seat Rear Vertical Down Switch Signal
K YE 1519 Power Seat Rear Vertical Up Switch Signal
L D-BU 1520 Power Seat Front Vertical Down Switch Signal
M D-GN 1518 Power Seat Front Vertical Up Switch Signal
Seat Adjuster Switch Terminal Identification - Passenger

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A OG 3740 Battery Positive Voltage
B L-GN 290 Passenger Seat Horizontal Motor Rearward Control
C TN 296 Passenger Seat Horizontal Motor Forward Control
D BK 550 Ground
E D-BU 77 Passenger Seat Recline Motor Rearward
F D-GN 76 Passenger Seat Recline Motor Forward
G D-BU 298 Passenger Seat Front Vertical Motor Down Control
H D-GN 297 Passenger Seat Front Vertical Motor Up Control
J L-BU 289 Passenger Seat Rear Vertical Motor Down Control
K YE 288 Passenger Seat Rear Vertical Motor Up Control
L-M - - Not Used
Seat Back Load Floor Position Switch (AM0) Terminal Identification

GM35451Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059251
  • 2-Way F Metri-Pack 150 Series (RD)
Pin Wire Color Circuit No. Function
A L-GN 5698 Load Floor Position Switch Signal
B YE/BK 5701 Load Floor Position Switch Supply Voltage
Seat Back Panel Position Switch (AM0) Terminal Identification

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU 5470 Back Panel Position Switch Signal
B L-BU/WH 5700 Back Panel Position Switch Supply Voltage

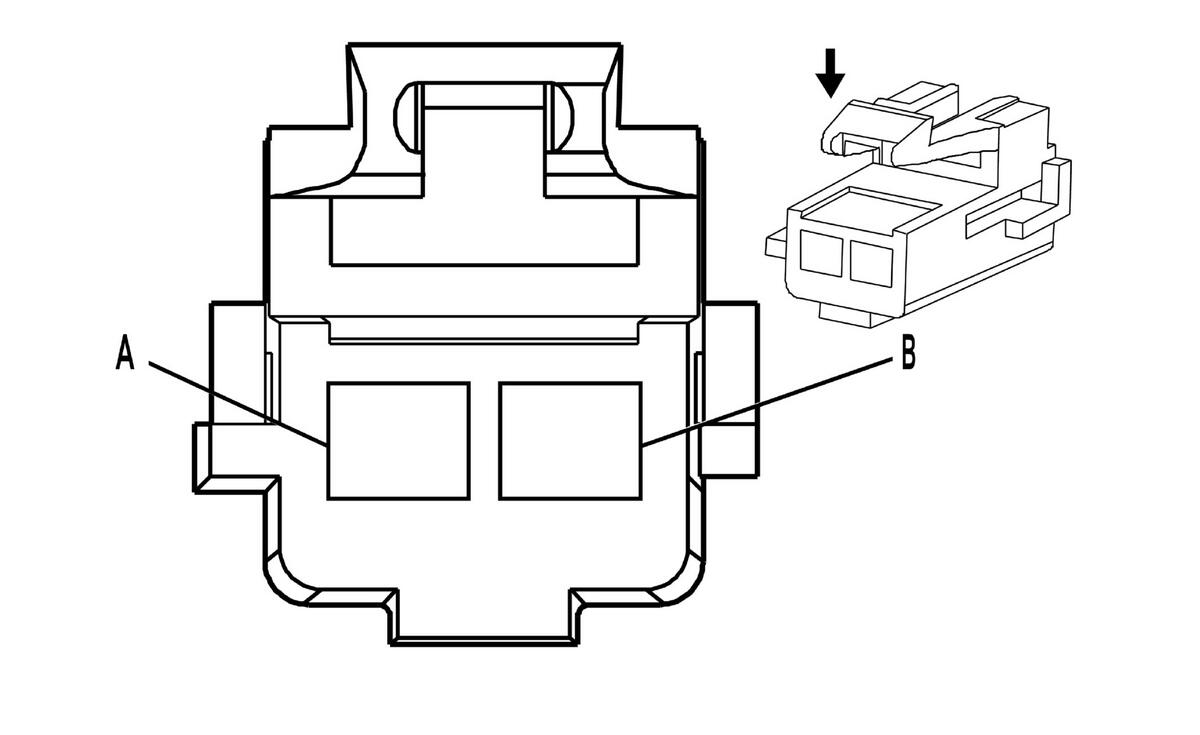

Seat Front Vertical Motor Terminal Identification - Driver

GM1542255Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129082
  • 2-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
A D-BU 287 Driver Seat Front Vertical Motor Down Control
B D-GN 286 Driver Seat Front Vertical Motor Up Control
Seat Front Vertical Motor Terminal Identification - Passenger

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A D-GN 297 Passenger Seat Front Vertical Motor Up Control
B D-BU 298 Passenger Seat Front Vertical Motor Down Control
Seat Front Vertical Position Sensor Terminal Identification - Driver (A45)

GM1332410Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059584
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Available
B TN 782 Memory Seat/Mirror Sensor Low Reference
C BN/WH 557 Front Vertical Seat Motor Position Sensor Signal
D GY 788 5-Volt Reference
Seat Horizontal Motor Terminal Identification - Driver

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A TN 285 Driver Seat Horizontal Motor Forward Control
B L-GN 284 Driver Seat Horizontal Motor Rearward Control
Seat Horizontal Motor Terminal Identification - Passenger

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 290 Passenger Seat Horizontal Motor Rearward Control
B TN 296 Passenger Seat Horizontal Motor Forward Control
Seat Horizontal Position Sensor Terminal Identification - Driver (A45)

GM1332415Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059581
  • 3-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A GY 788 5-Volt Reference
B D-GN 569 Horizontal Seat Motor Position Sensor Signal
C TN 782 Memory Seat/Mirror Sensor Low Reference
D - - Not Available
Seat Lumbar Motor Terminal Identification - Driver (AL2)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 610 Driver Seat Lumbar Motor Rearward Control
B PK 611 Driver Seat Lumbar Motor Forward Control
Seat Lumbar Motor Terminal Identification - Passenger (AL2)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 211 Passenger Seat Lumbar Motor Forward Control
B WH 210 Passenger Seat Lumbar Motor Rearward Control
Seat Lumbar Switch Terminal Identification - Driver (AL2)

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041429
  • 5-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B YE 1065 Driver Seat Lumbar Forward Switch Signal
C - - Not Used
D RD/WH 2840 Battery Positive Voltage
E D-BU 1064 Driver Seat Lumbar Rearward Switch Signal
Seat Lumbar Switch Terminal Identification - Passenger (AL2)

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041429
  • 5-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B D-BU 211 Passenger Seat Lumbar Motor Forward Control
C BK 550 Ground
D OG 3740 Battery Positive Voltage
E WH 210 Passenger Seat Lumbar Motor Rearward Control
Seat Rear Vertical Motor Terminal Identification - Driver

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A YE 282 Driver Seat Rear Vertical Motor Up Control
B L-BU 283 Driver Seat Rear Vertical Motor Down Control
Seat Rear Vertical Motor Terminal Identification - Passenger

GM1542255Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129082
  • 2-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
A L-BU 289 Passenger Seat Rear Vertical Motor Down Control
B YE 288 Passenger Seat Rear Vertical Motor Up Control
Seat Rear Vertical Position Sensor Terminal Identification - Driver (A45)

GM1332414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059582
  • 3-Way F Metri-Pack 150 Series (BU)
Pin Wire Color Circuit No. Function
A GY 788 5-Volt Reference
B TN 568 Rear Vertical Seat Motor Position Sensor Signal
C - - Not Available
D TN 782 Memory Seat/Mirror Sensor Low Reference
Seat Recline Motor Terminal Identification - Driver

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 276 Driver Seat Recline Motor Forward Control
B L-BU 277 Driver Seat Recline Motor Rearward Control
Seat Recline Motor Terminal Identification - Passenger

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 76 Passenger Seat Recline Motor Forward Control
B D-BU 77 Passenger Seat Recline Motor Rearward Control
Seat Recline Position Sensor Terminal Identification - Driver (A45)

GM401671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 39-01-4030
  • 3-Way F Molex (NA)
Pin Wire Color Circuit No. Function
1 TN 782 Memory Seat/Mirror Sensor Low Reference
2 GY 788 5-Volt Reference
3 WH/BK 570 Driver Seat Recline Motor Position Sensor Signal
scientia non olet · About Mike's Workshop Manuals
