Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the overhead console into the headliner opening.
  3. Ensure the locking tabs are properly positioned.
  4. Press upward on the overhead console (1) to secure the locking tabs to the console bracket.

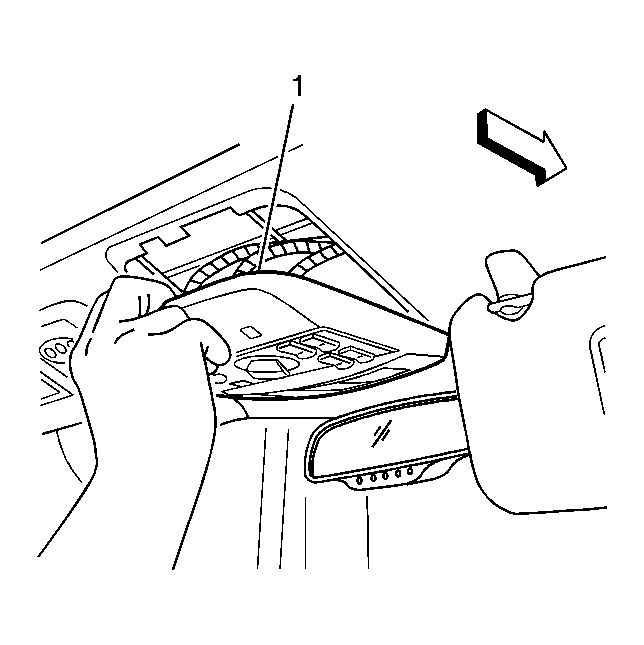

    5. Fig 1: View Of Overhead Console
    GM1234259Courtesy of GENERAL MOTORS CORP.
