Engine Controls Schematics

Fig 1: DLC, Ground, MIL, and Power

Courtesy of GENERAL MOTORS CORP.

Fig 2: 12-Volt and 5-Volt Reference Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS, and Brake Travel

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition System - Bank 1

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition System - Bank 2

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - CKP and KS Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

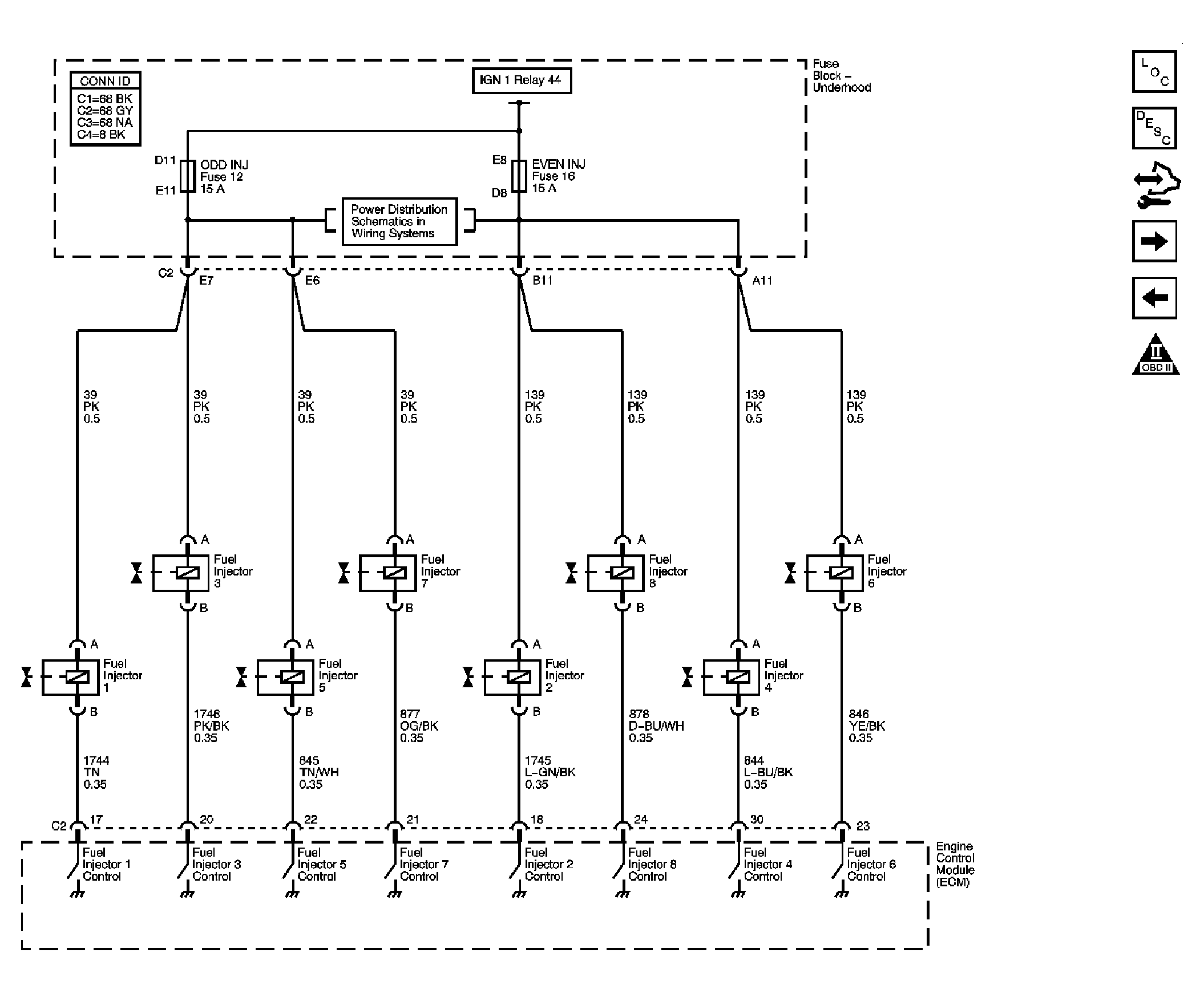

Fig 11: Fuel Controls - Fuel Injectors and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

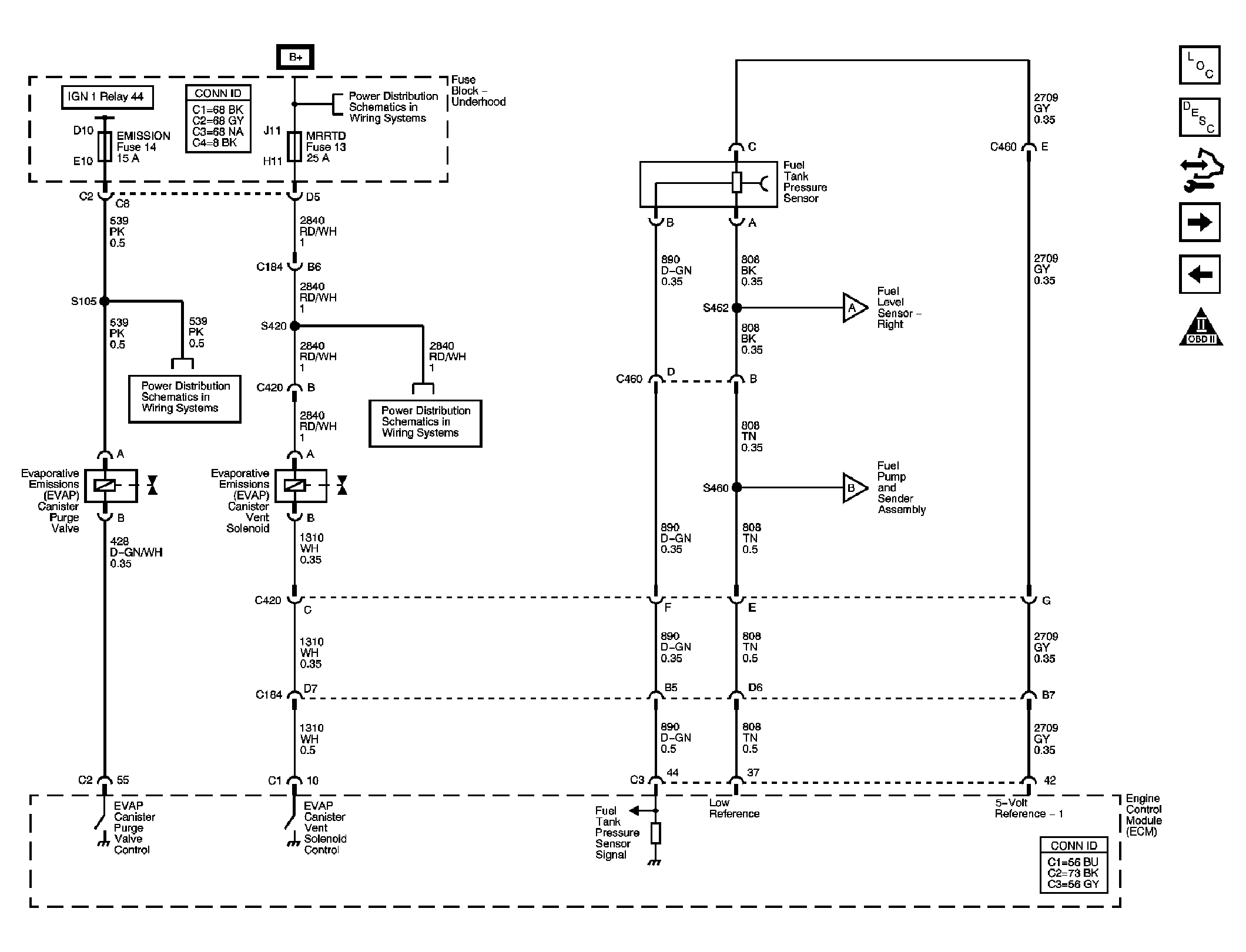

Fig 12: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

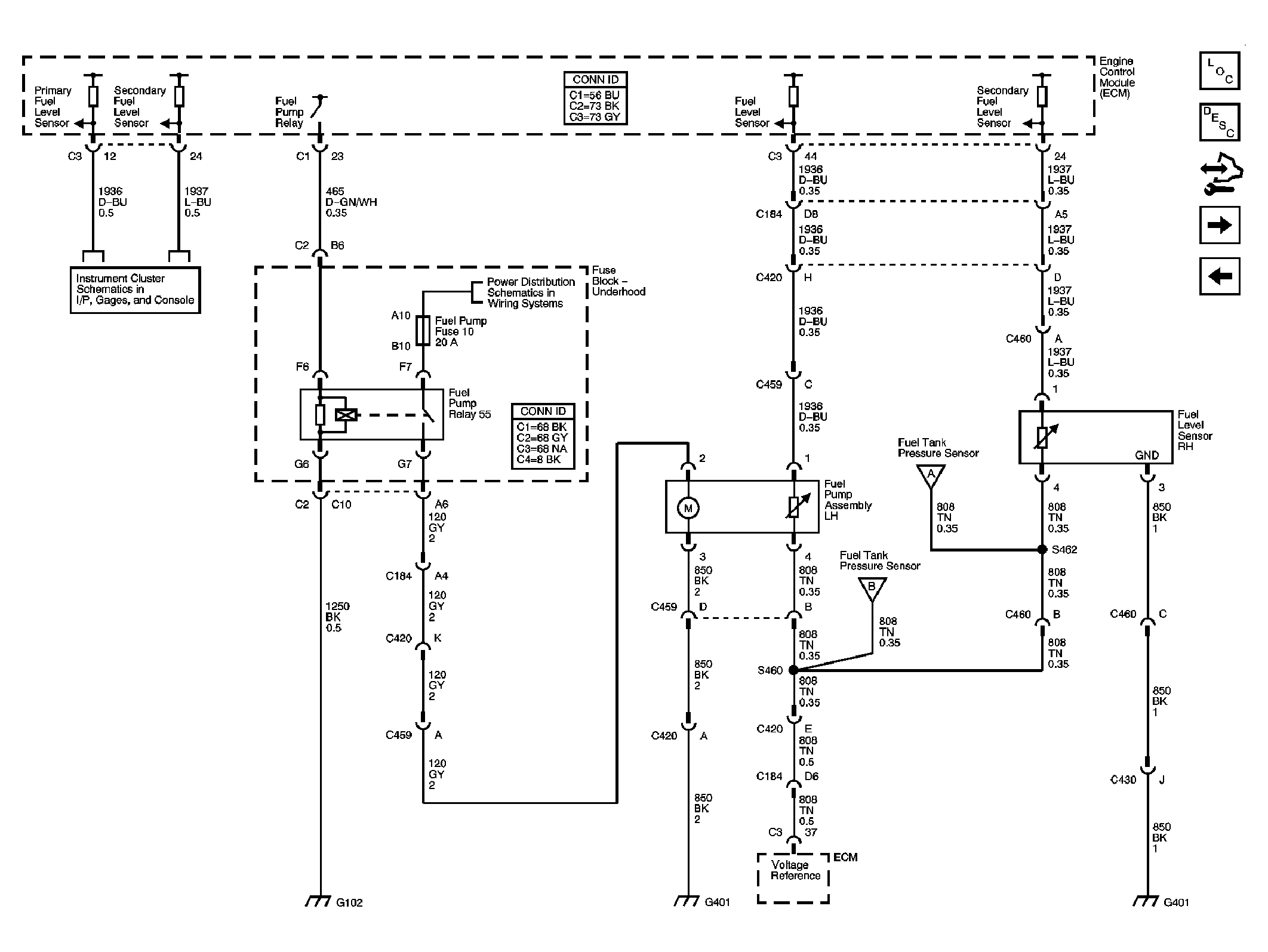

Fig 13: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

Fig 14: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
