Door Lock/Indicator Schematics

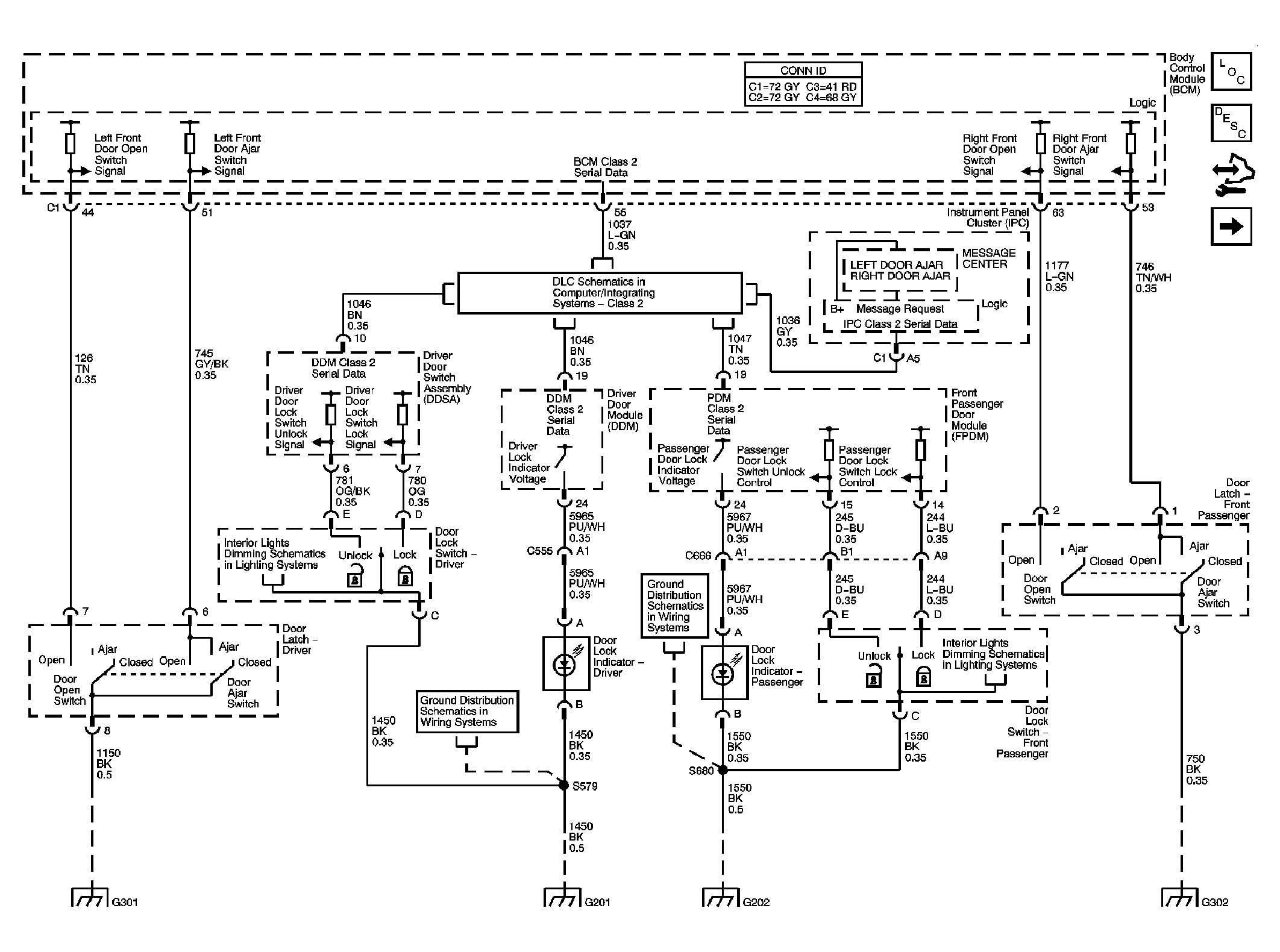

Fig 1: Indicators, Messages, and Ajar/Open/Lock Switches
Courtesy of GENERAL MOTORS CORP.

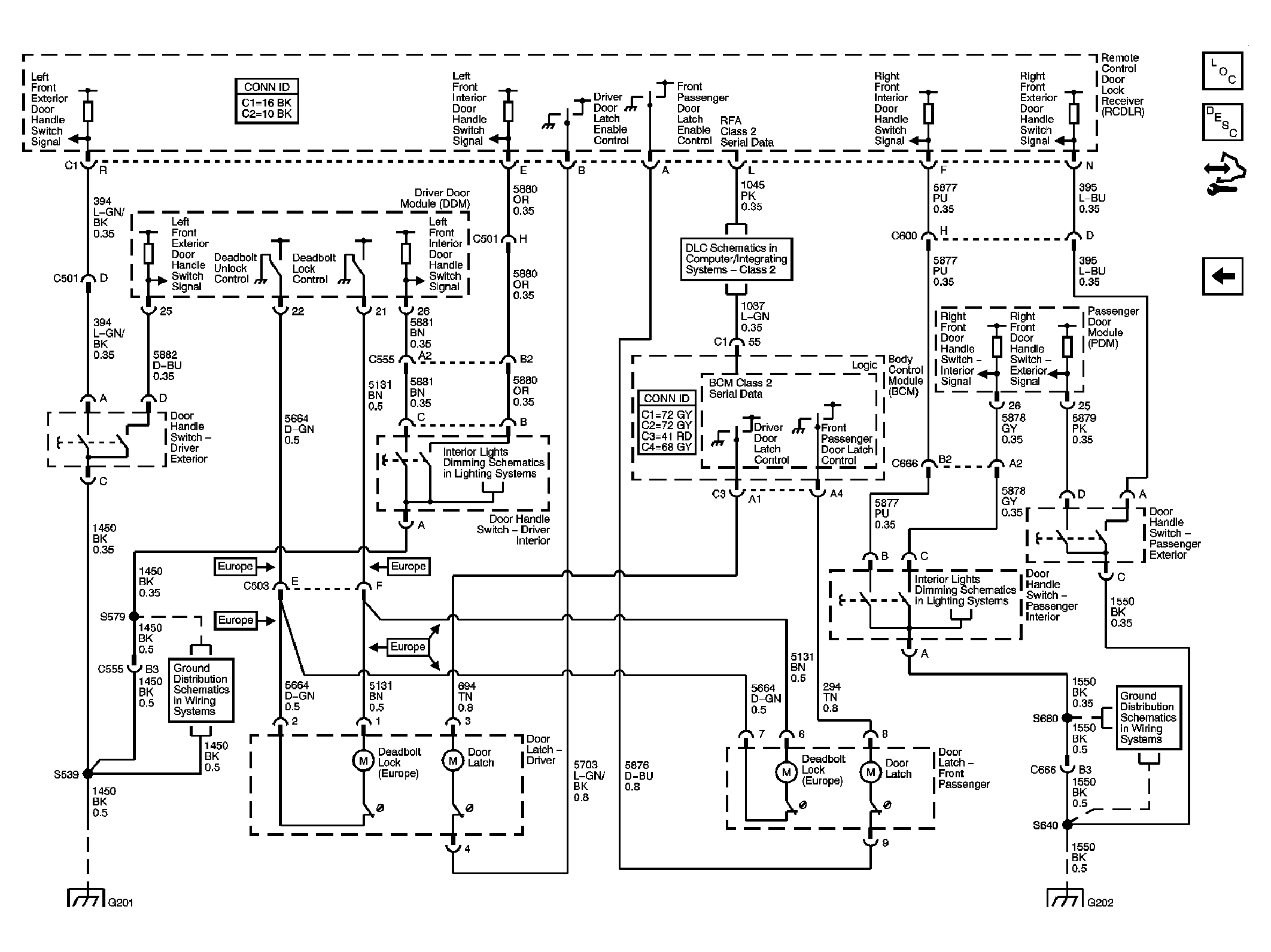

Fig 2: Actuators and Handle Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
