Front Side Door Hinge Replacement
Front Side Door Hinge Replacement

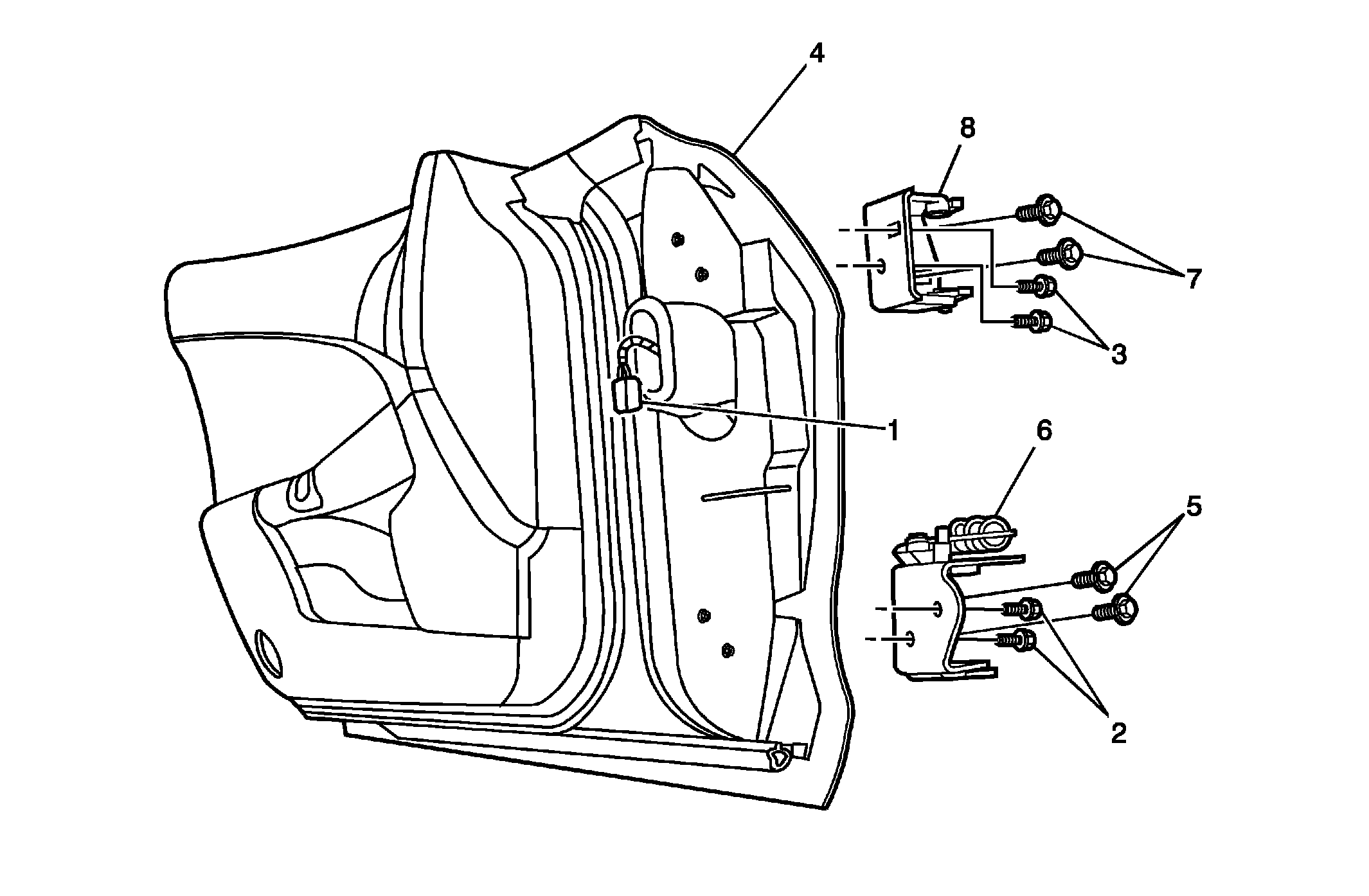

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Harness, Front Side Door Wiring |
| 2 | Bolt, Front Side Door Hinge Lower (Qty: 2) |
| 3 | Bolt, Front Side Door Hinge Upper (Qty: 2) |
| 4 | Door Assembly, Front Side |
| 5 | Bolt, Front Side Door Hinge Lower (Qty: 2) |
| 6 | Hinge Assembly, Front Side Door Lower |
| 7 | Bolt, Front Side Door Hinge Upper (Qty: 2) |
| 8 | Hinge Assembly, Front Side Door Upper |
