Removal Procedure

    IMPORTANT: When removing the power door lock switch, place the ignition switch in the OFF position.
  1. Remove the door trim panel. Refer to Door Trim Panel Replacement .
  2. Remove the retainer screws from the back of the upper trim panel.
  3. Remove the upper trim from the door.
    4. Fig 1: View Of Door Panel Inner Energy Absorber
    GM1272532Courtesy of GENERAL MOTORS CORP.
  4. Remove the inner energy absorber from the door panel.
  5. Remove 4 retaining screws from the rear of the armrest.
  6. Remove 1 retaining screw from the forward end of the armrest assembly.
    7. Fig 2: View Of Armrest Assembly & Screws
    GM1271088Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the armrest wire harness and remove the armrest assembly.

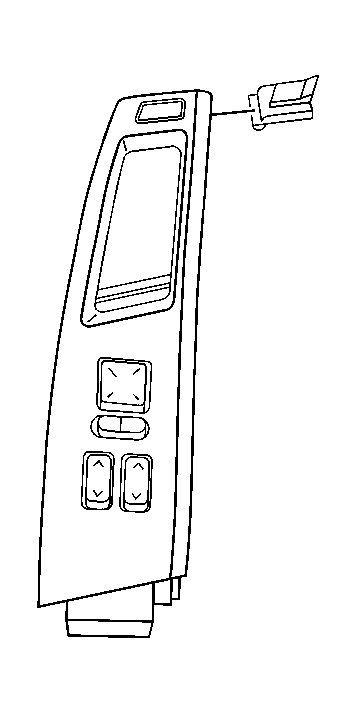

    8. Fig 3: View Of Power Door Lock Switch Assembly
    GM1271255Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use care when removing the power window switch assembly, because the mirror, the window, and the applique to the door lock switch plate can be easily damaged. Apply duct tape to protect the finish.
  8. Remove the power door lock switch assembly from the pocket in the door trim panel.
  9. Disconnect the wire harness to the power door lock switch.
    10. Fig 4: View Of Door Switch Assemblies & Door Switch Bezel
    GM1271233Courtesy of GENERAL MOTORS CORP.
  10. Remove the power door lock switch from the armrest switch plate applique.
