Navigation System Schematics

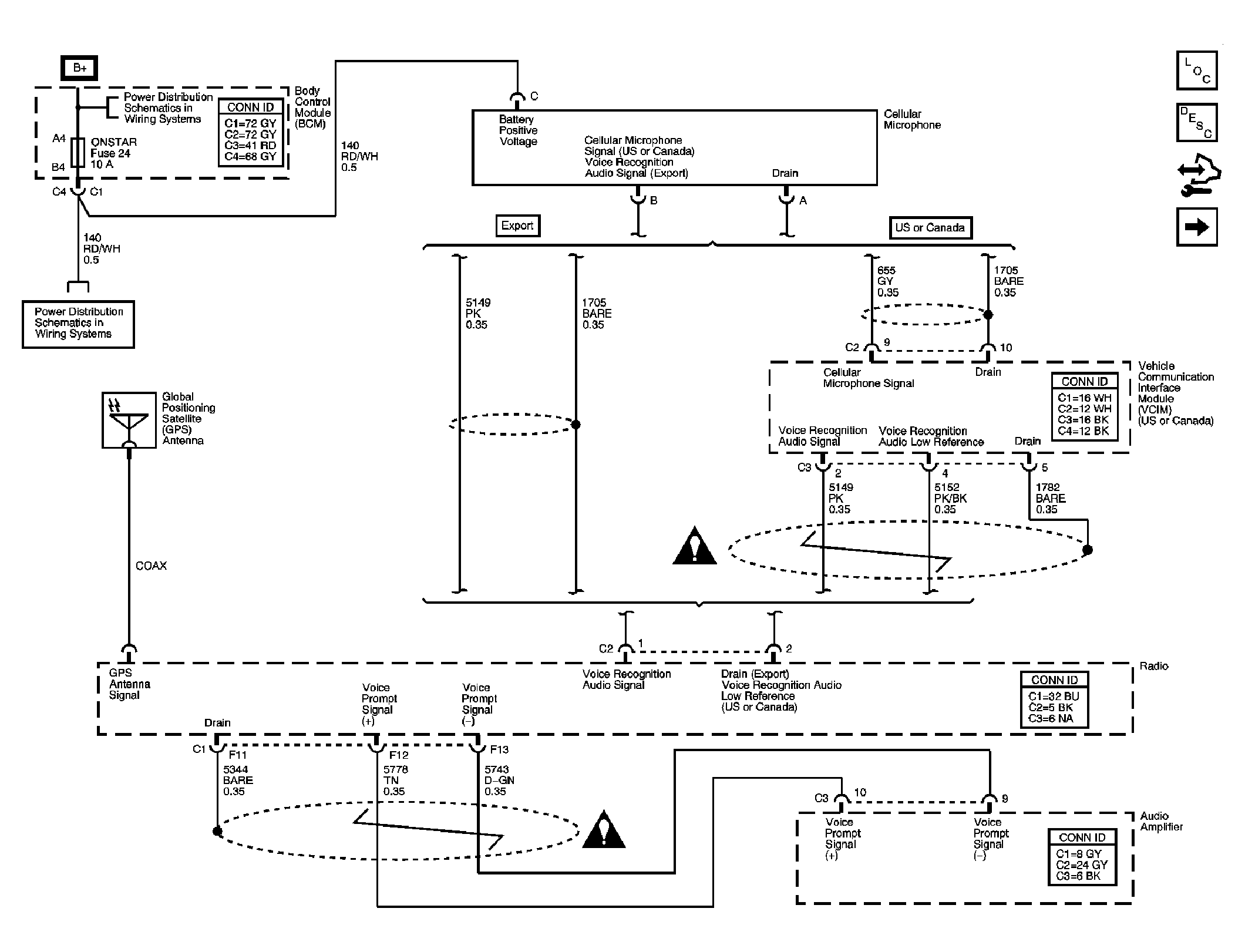

Fig 1: Navigation Systems - Except Japan

GM1480905

Courtesy of GENERAL MOTORS CORP.

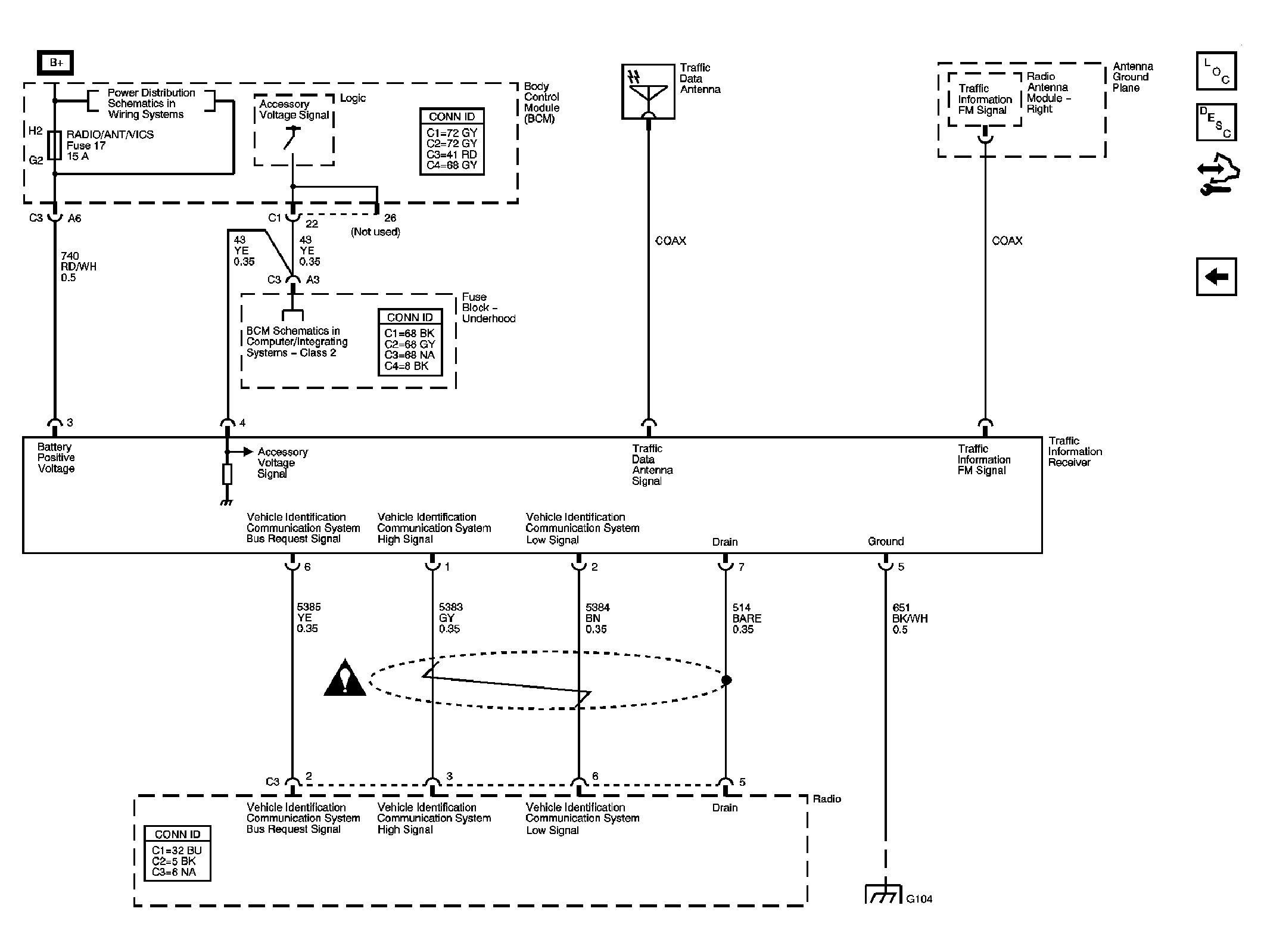

Fig 2: Navigation Systems - Japan

GM1480906

Courtesy of GENERAL MOTORS CORP.
