Data Link Connector Schematics

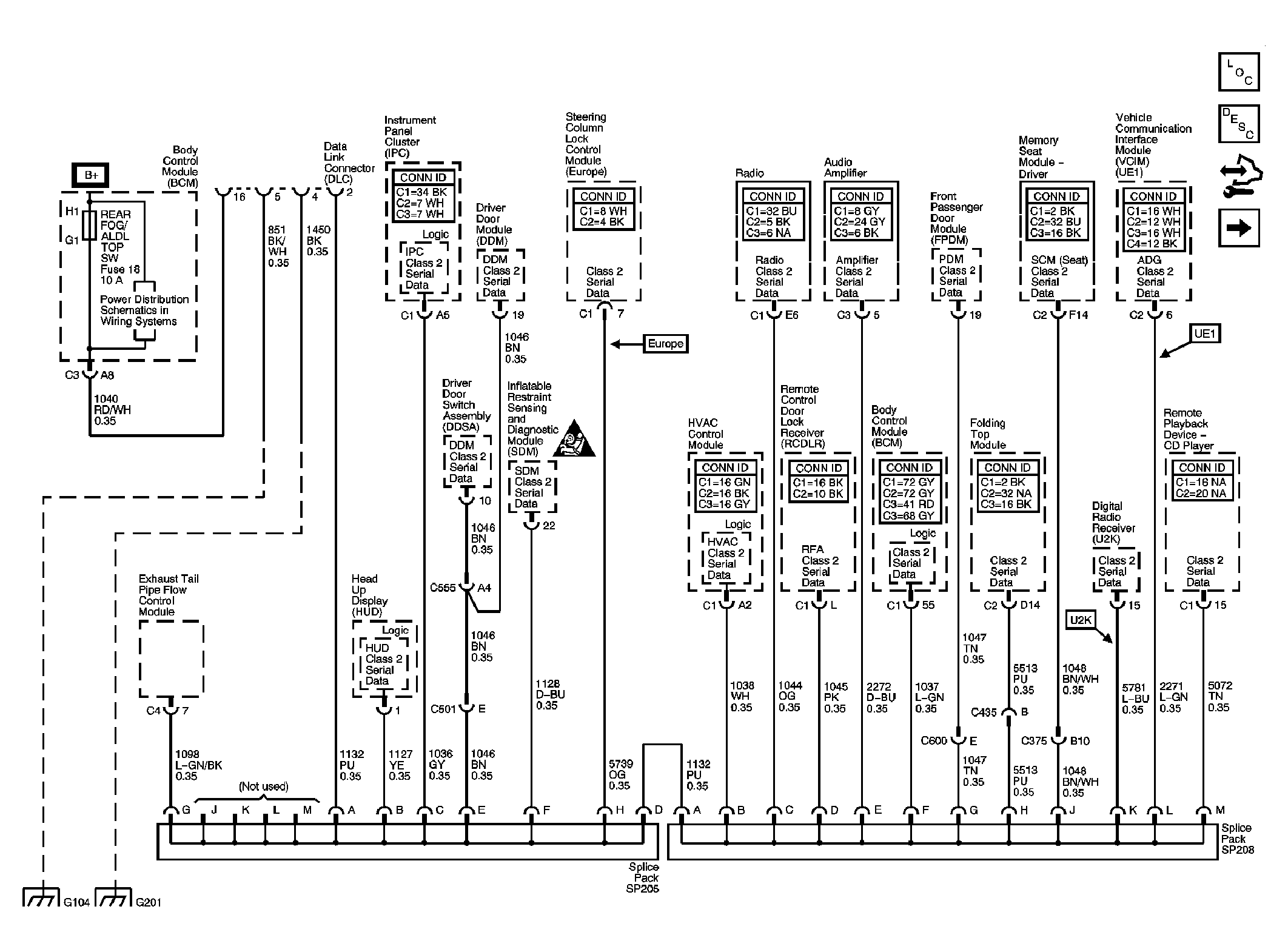

Fig 1: Class 2

GM1688317

Courtesy of GENERAL MOTORS CORP.

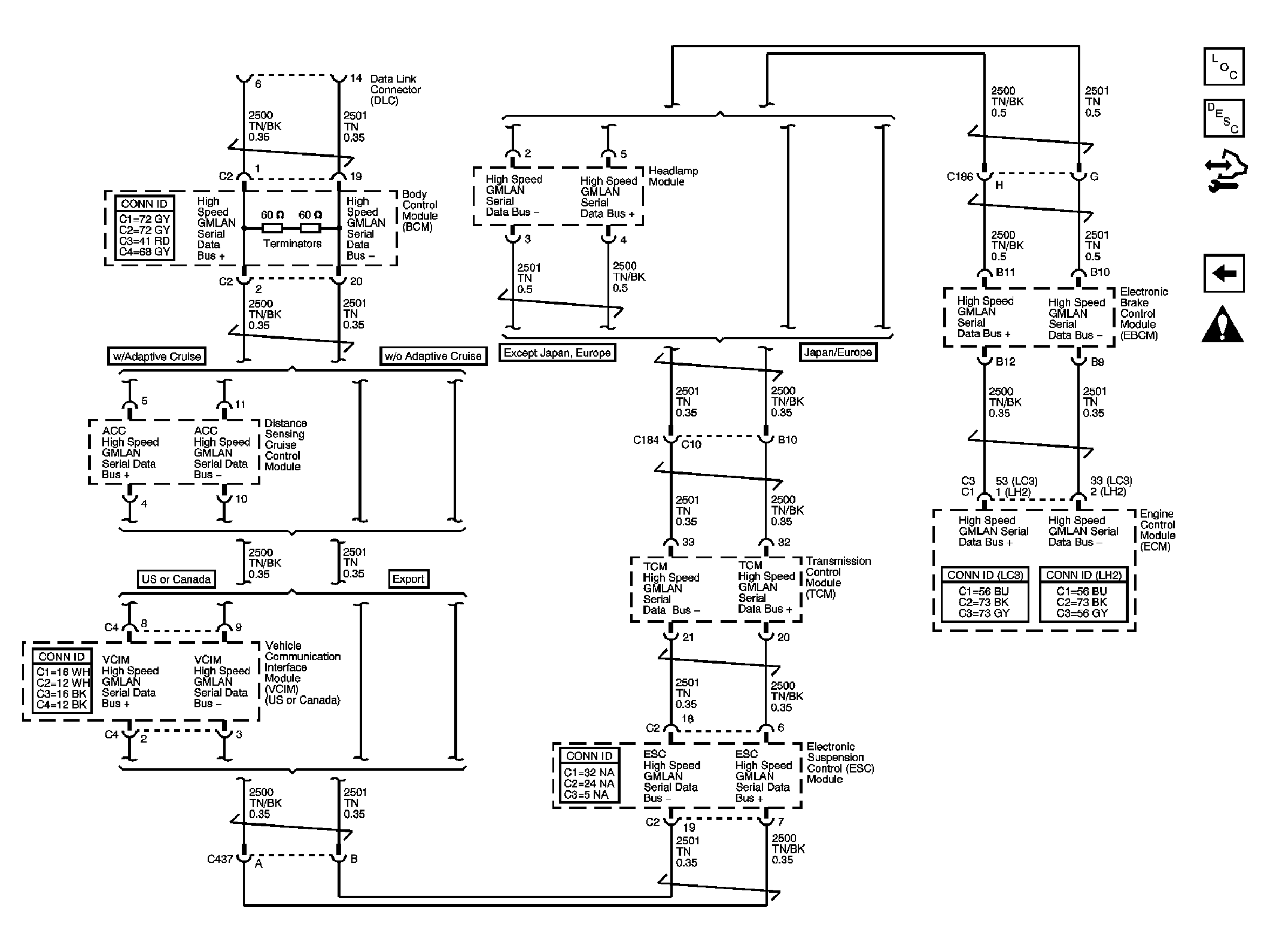

Fig 2: GMLAN

GM1658105

Courtesy of GENERAL MOTORS CORP.
