Power and Grounding Component Views

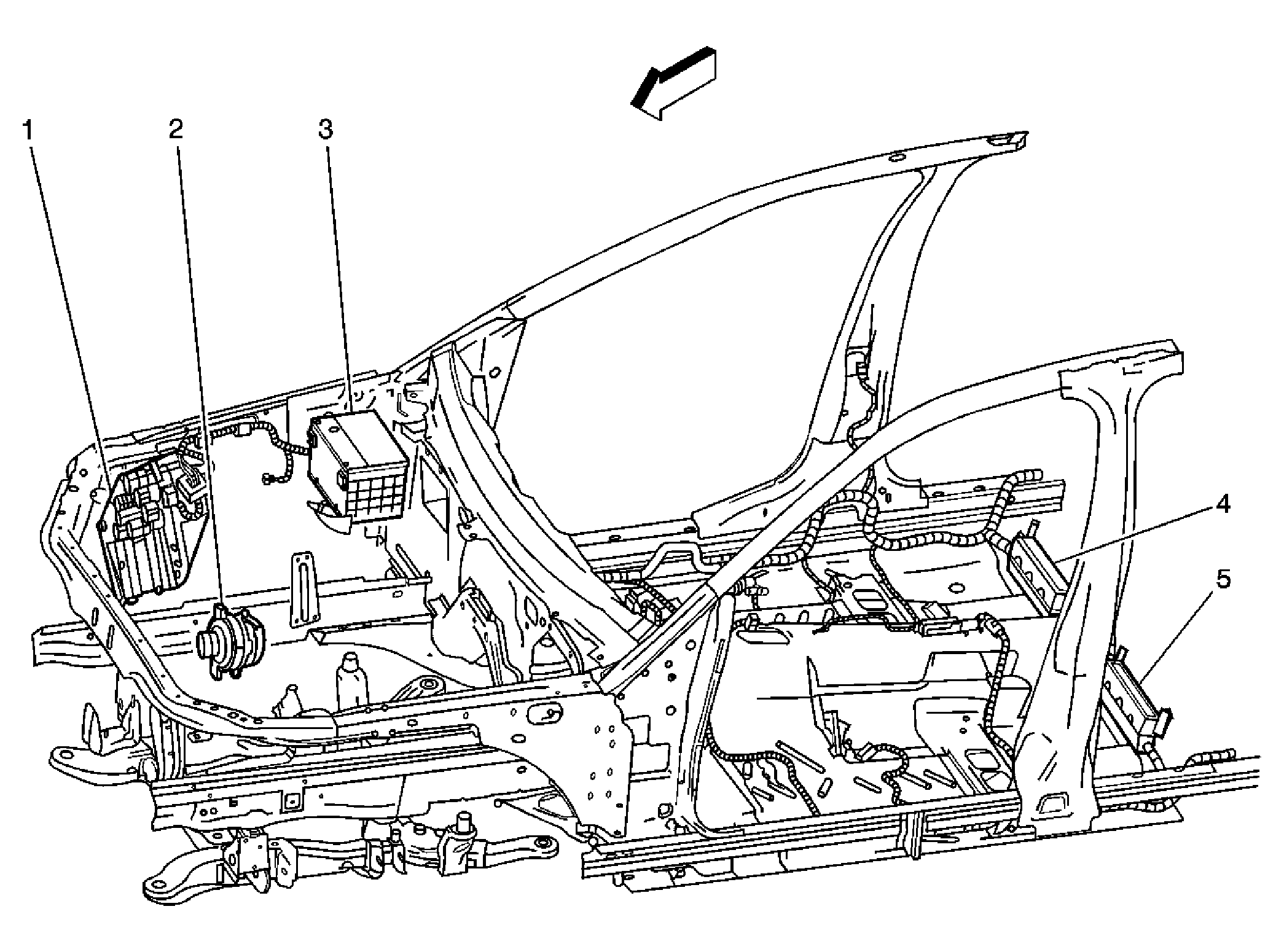

Fig 1: Front Of Engine Compartment & Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Generator
3	Battery
4	Fuse Block - Right Rear
5	Fuse Block - Left Rear

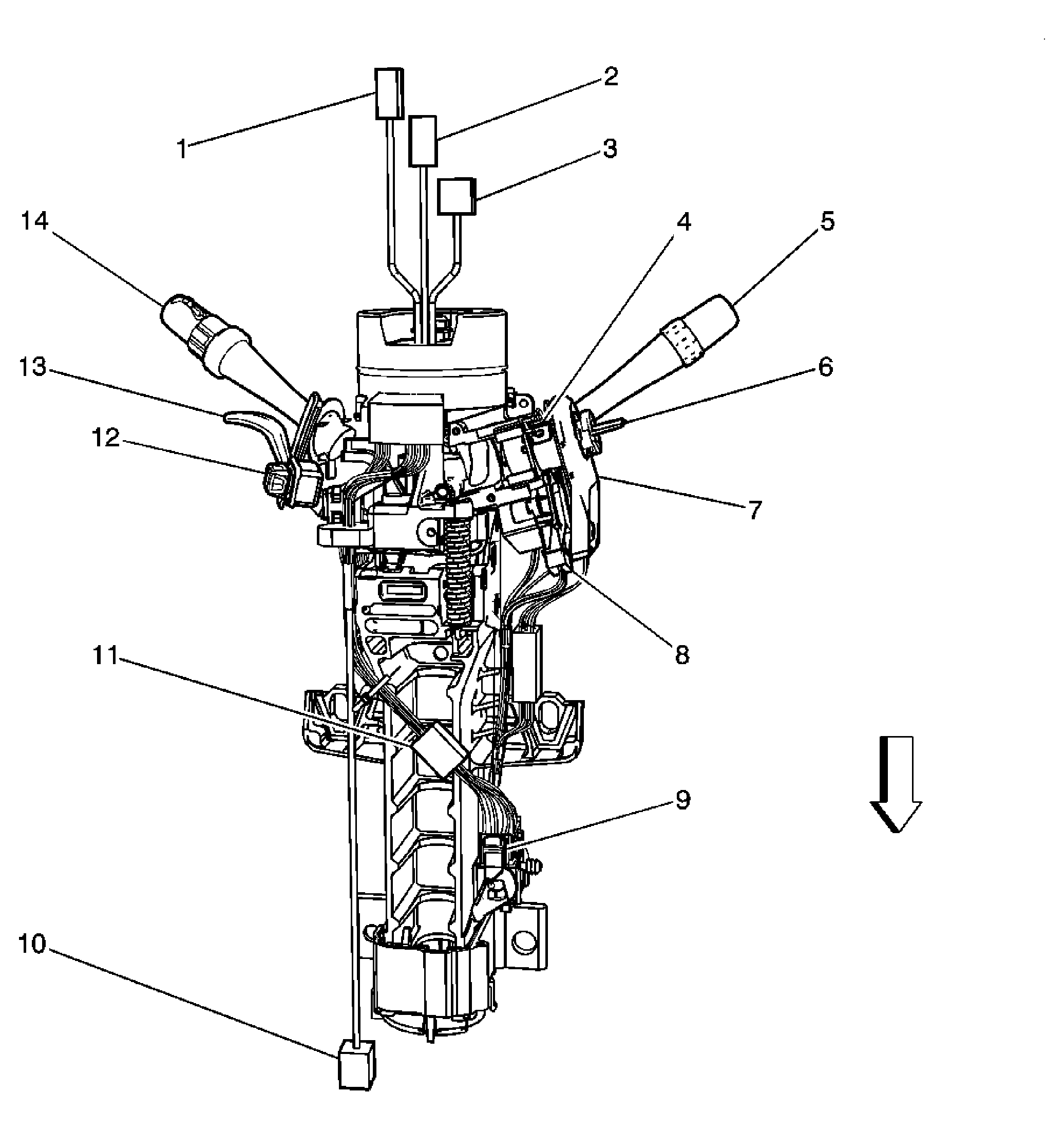

Fig 2: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil Connector
2	Inflatable Restraint Steering Wheel Module Coil Connector
3	C208
4	Ignition Lock Cylinder Control Actuator
5	Windshield Wiper Washer Switch
6	Ignition Lock Cylinder Case
7	Theft Deterrent Control Module
8	Ignition Switch Connector
9	C202
10	C203
11	Fuse Block - Steering Column
12	Adjustable Pedal Switch (JF4)
13	Steering Tilt Lever
14	Turn Signal/Multifunction Switch

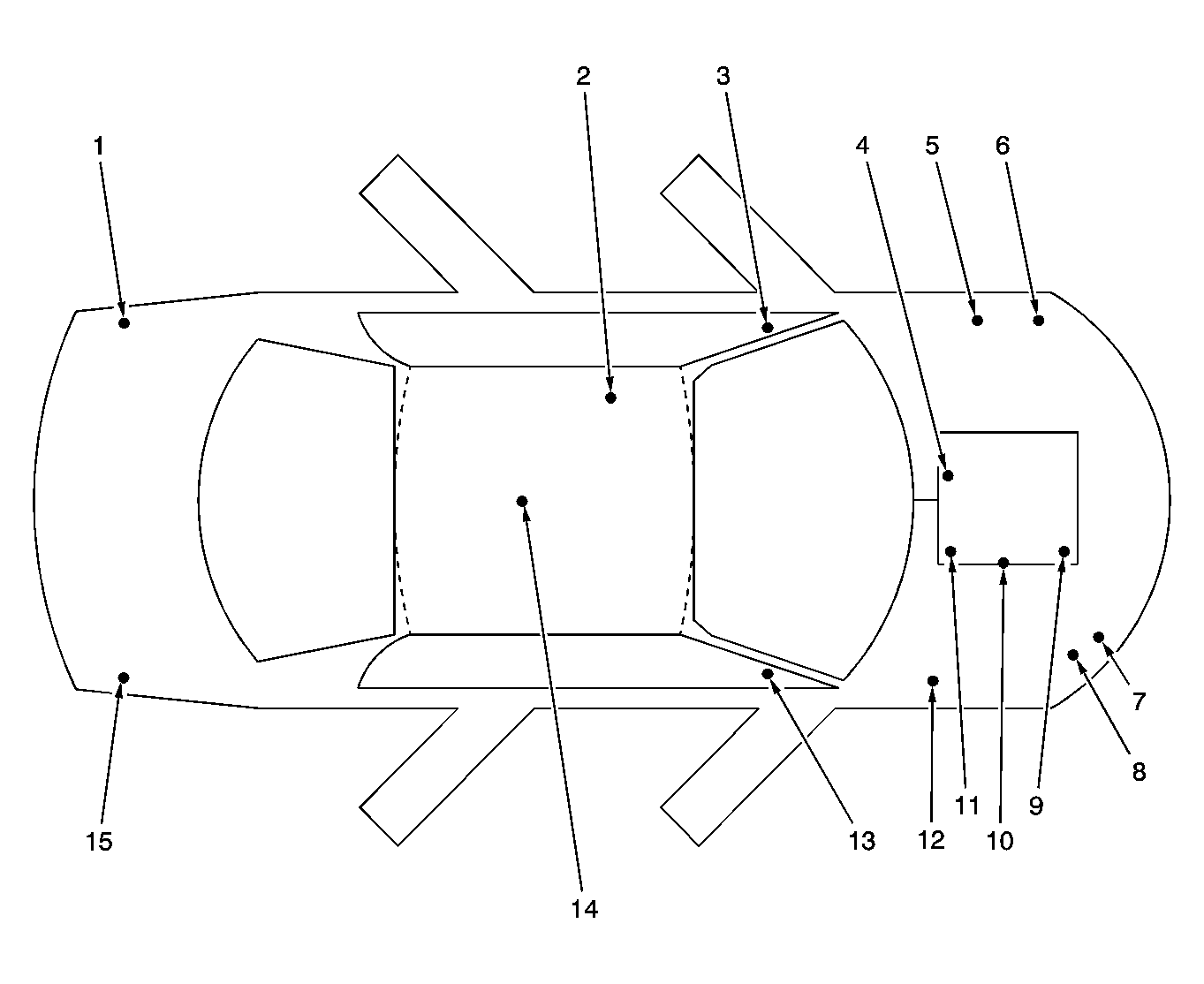

Fig 3: Ground Locations Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G402 (Left Rear Body Ground)
2	G307 (Left 2 Bar Ground)
3	G200 (Left Kickpad Ground)
4	G111/G112 (LY7 Even Ignition Coil Ground)
5	G101 (Left Body Rail)
6	G105 (Left Body Rail Ground RHD)
7	G104 (Right Body Rail Ground)
8	G110 (ABS Ground)
9	G113/G114 (LY7 Engine Ground)
10	Engine Control Module (ECM) Ground (LY7)
11	G100 (LH2), G107 (LH2), G108/G109 (LY7), and G102
12	G105 (Battery Ground)
13	G201 (Right Kickpad Ground)
14	G306 (SDM Bracket Ground)
15	G401 (Right Rear Body Ground)

Fig 4: Battery Negative Cable Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102 (LY7 shown, LH2 similar)
2	Battery Negative Cable Connection to Battery
3	G105
4	C103

Fig 5: Engine Grounds (LY7) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G108/G109
2	G111/G112
3	Engine Control Module (ECM)
4	G113/G114
5	ECM Case Ground
6	ECM Case Ground
7	ECM
8	G133

Fig 6: Rear Of Engine (LH2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	G100
3	G107
4	Engine Harness

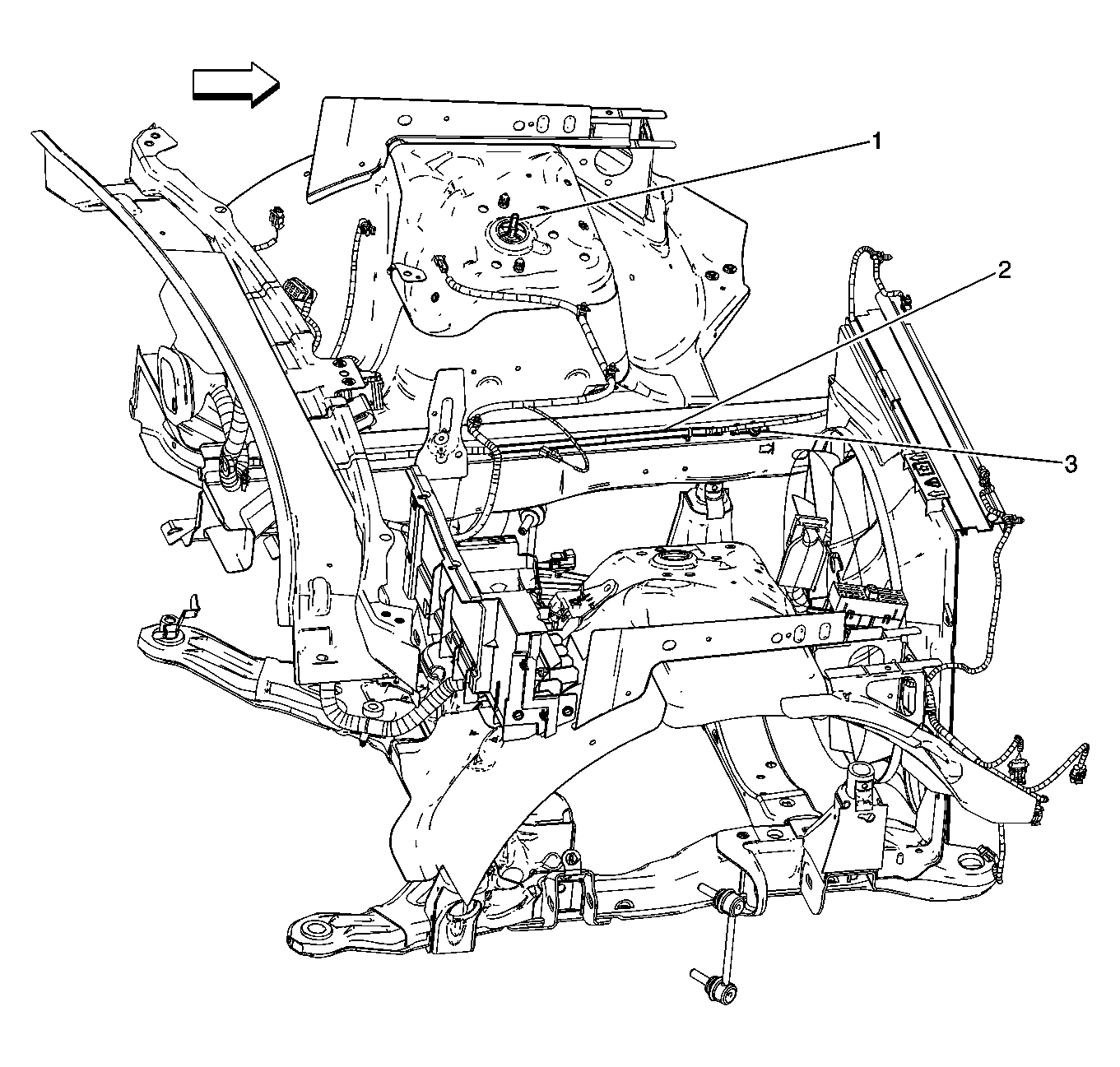

Fig 7: Engine Compartment Component View - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shock Absorber-LF
2	I/P Harness
3	G101

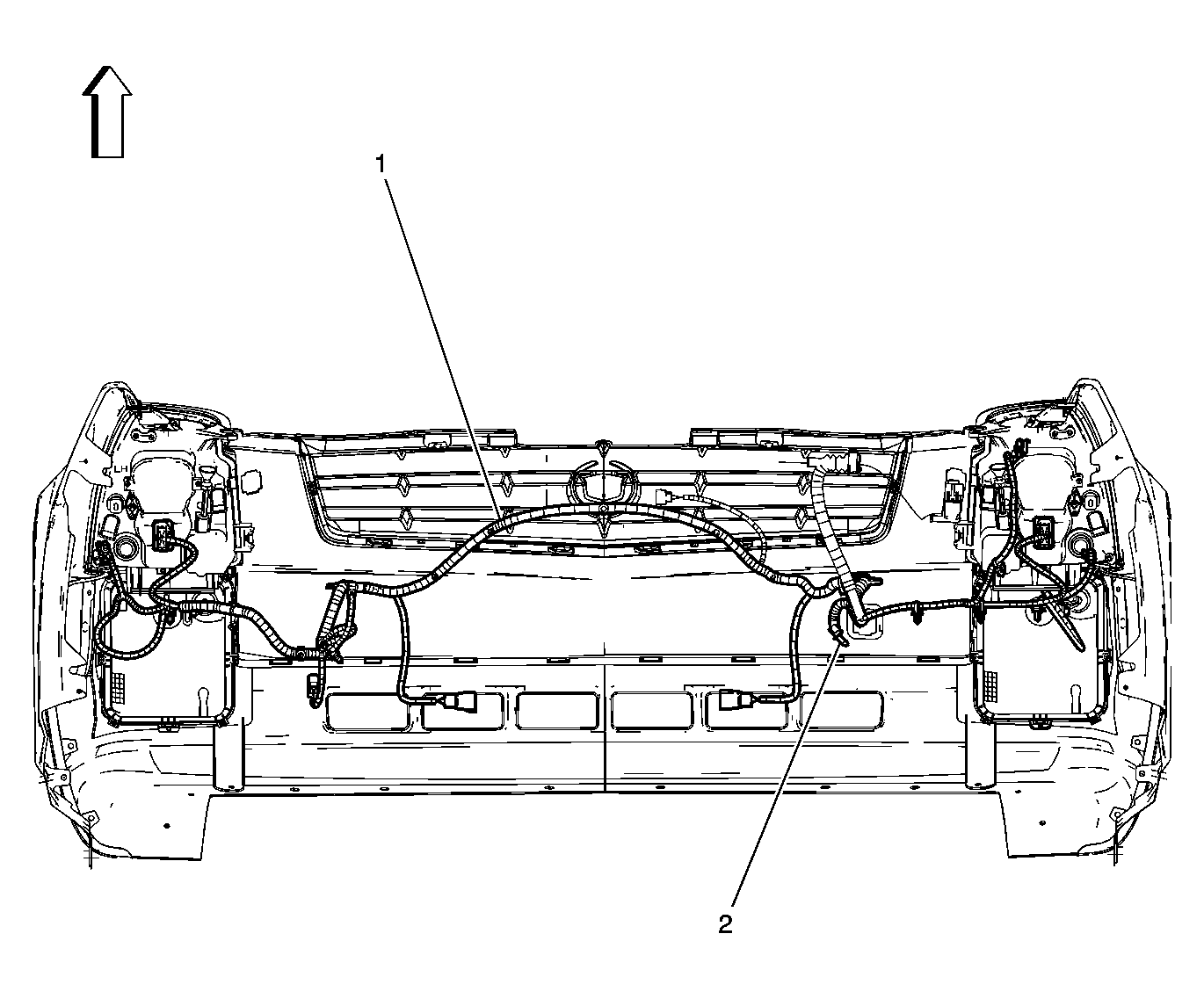

Fig 8: Engine Compartment Component View - RF

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	G104

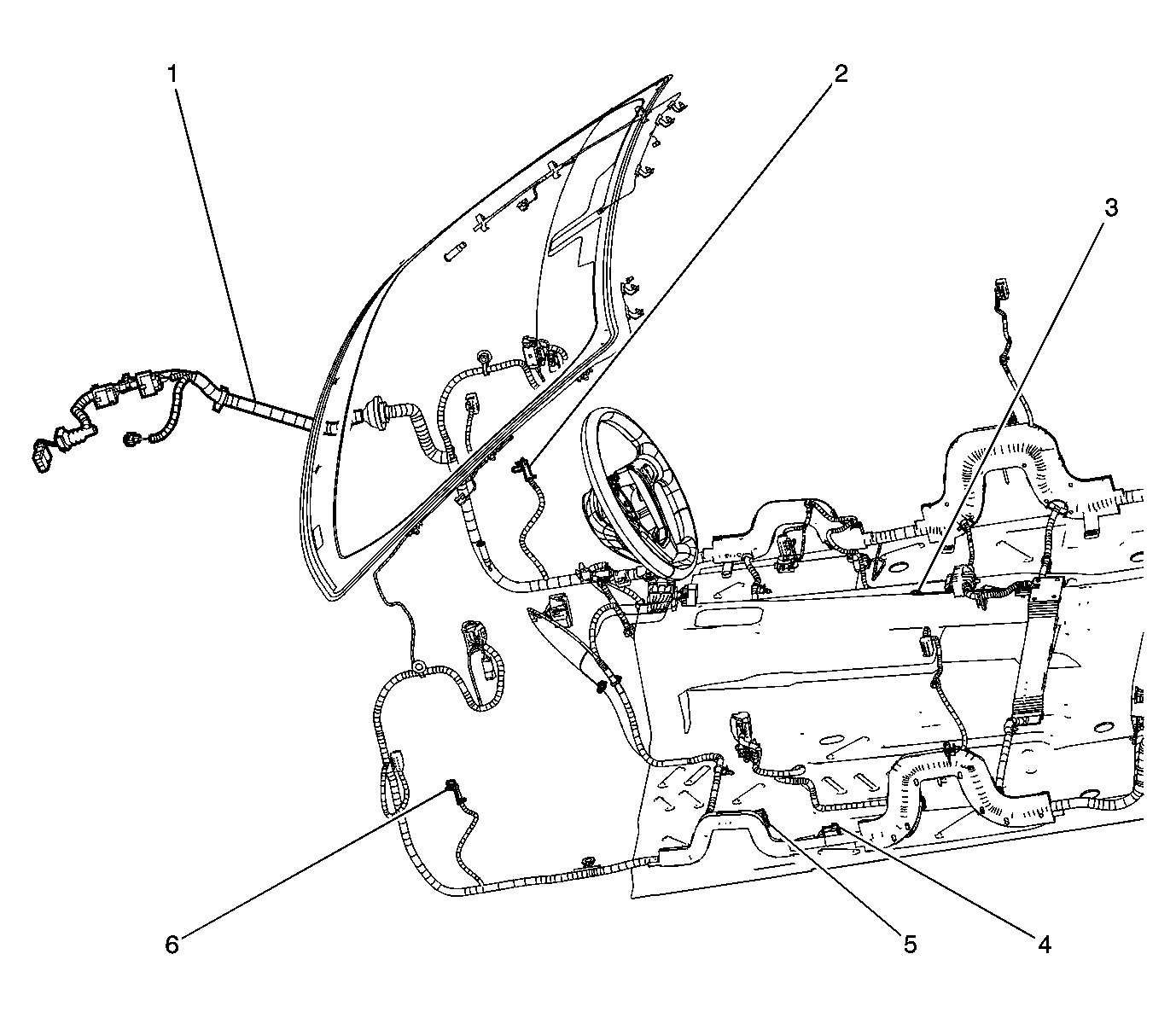

Fig 9: G200, G201, G306 & G307 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	G201
3	G306
4	Splice Pack SP300
5	G307
6	G200

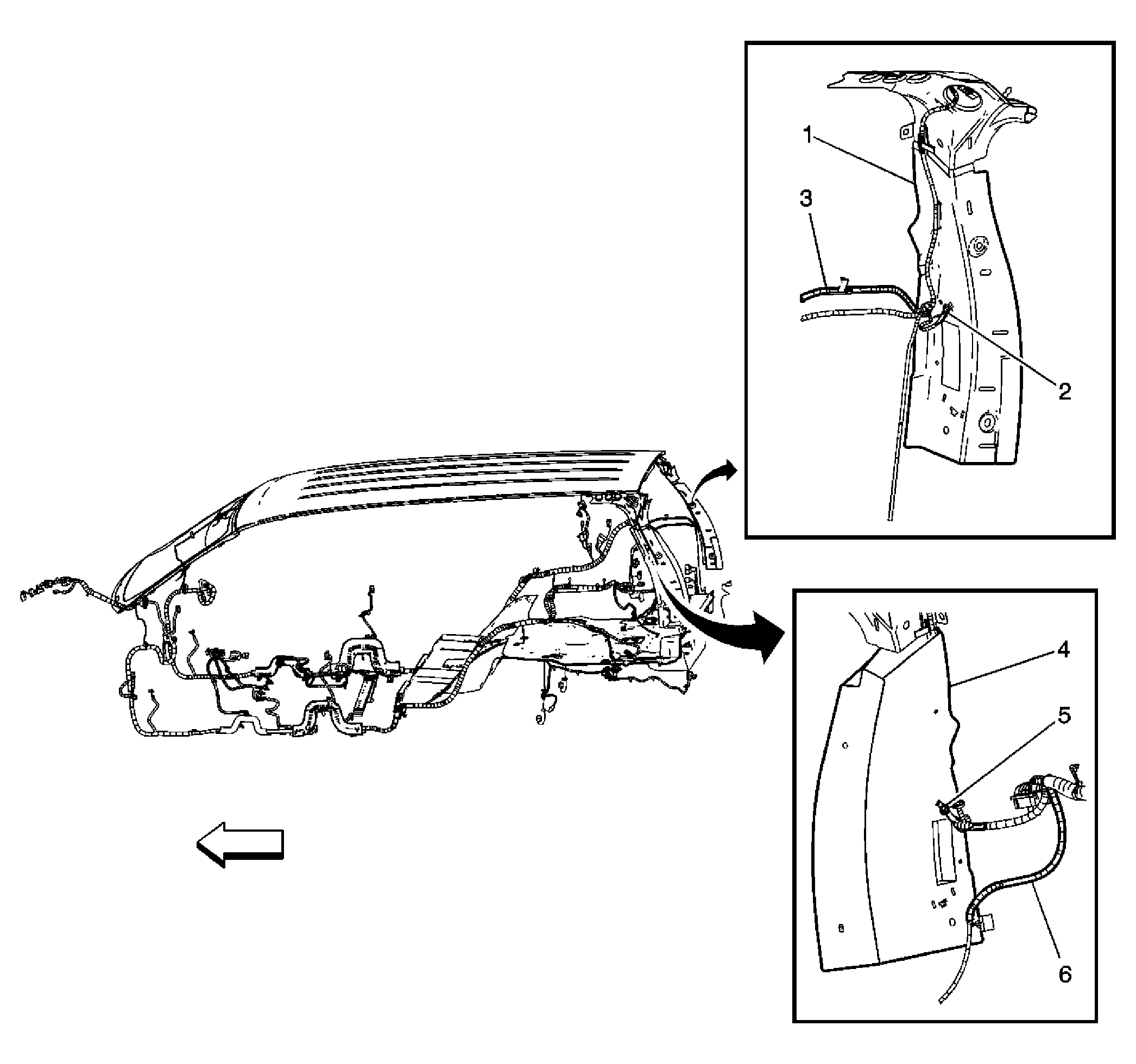

Fig 10: Rear D Pillars Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	D - Pillar - RR
2	G401
3	Body Harness
4	D - Pillar - LR
5	G402
6	Body Harness
