Engine Controls Schematics

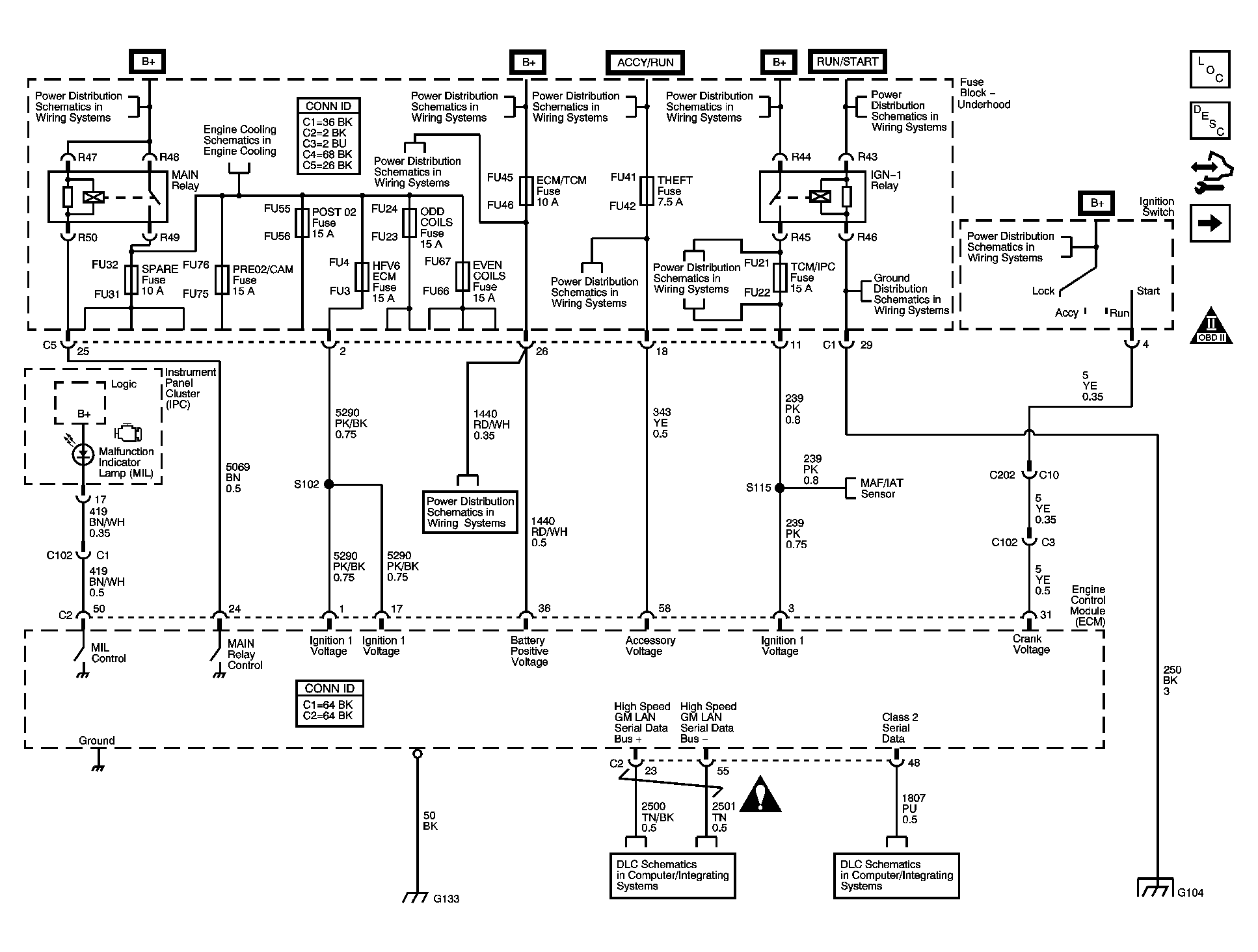

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

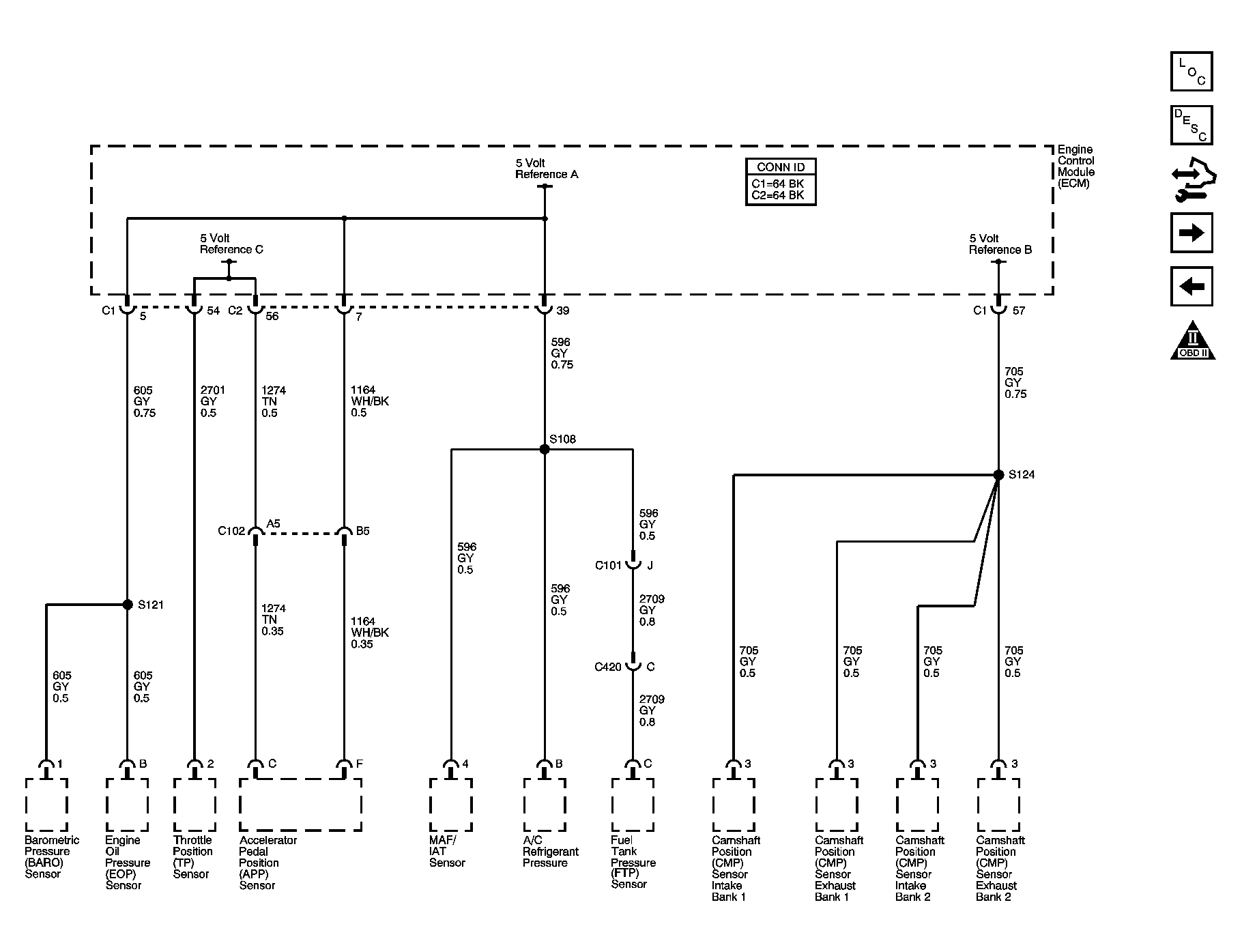

Fig 2: Engine Data Sensors - 5-Volt Reference

Courtesy of GENERAL MOTORS CORP.

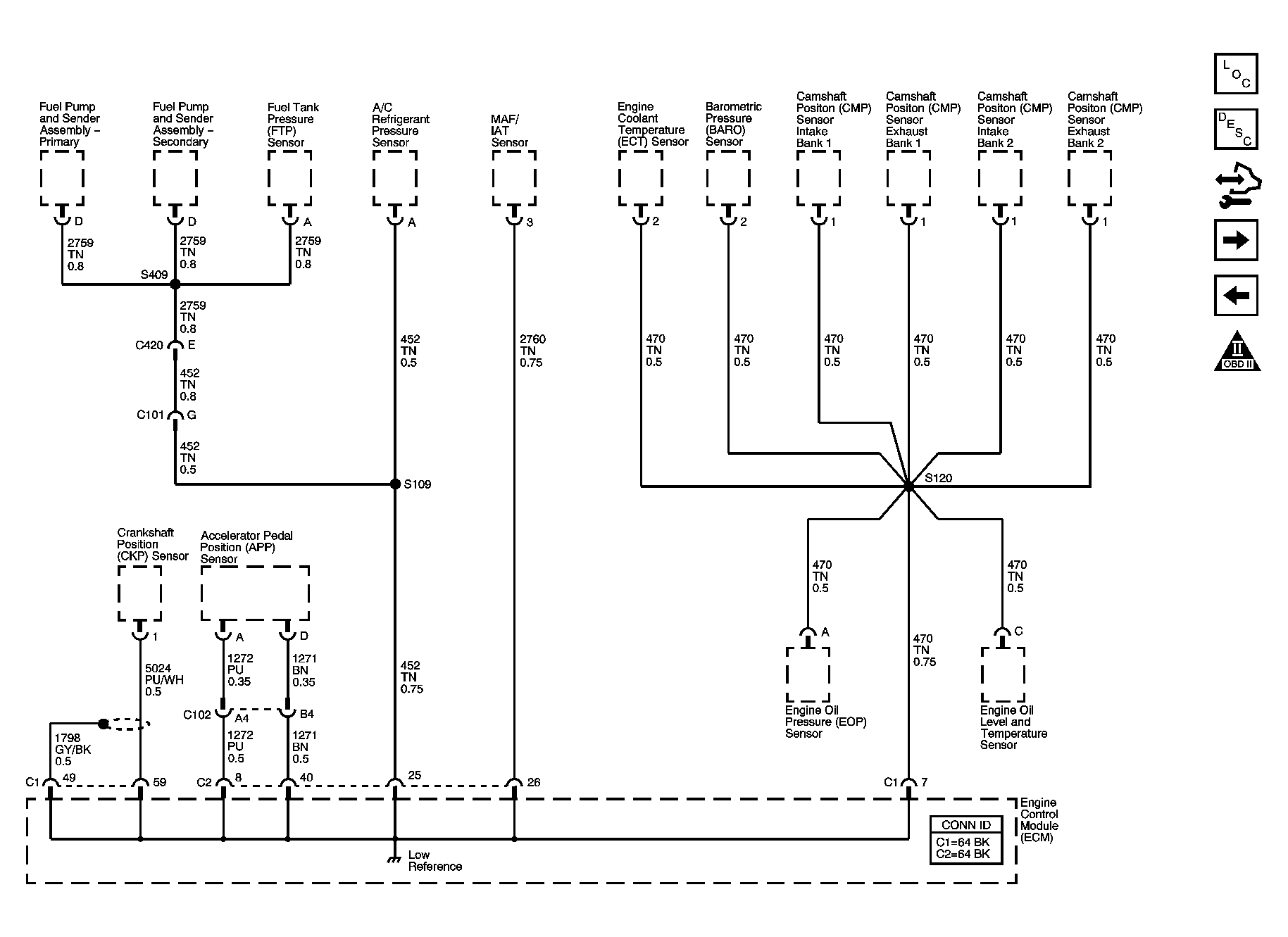

Fig 3: Engine Data Sensors - Low Reference

Courtesy of GENERAL MOTORS CORP.

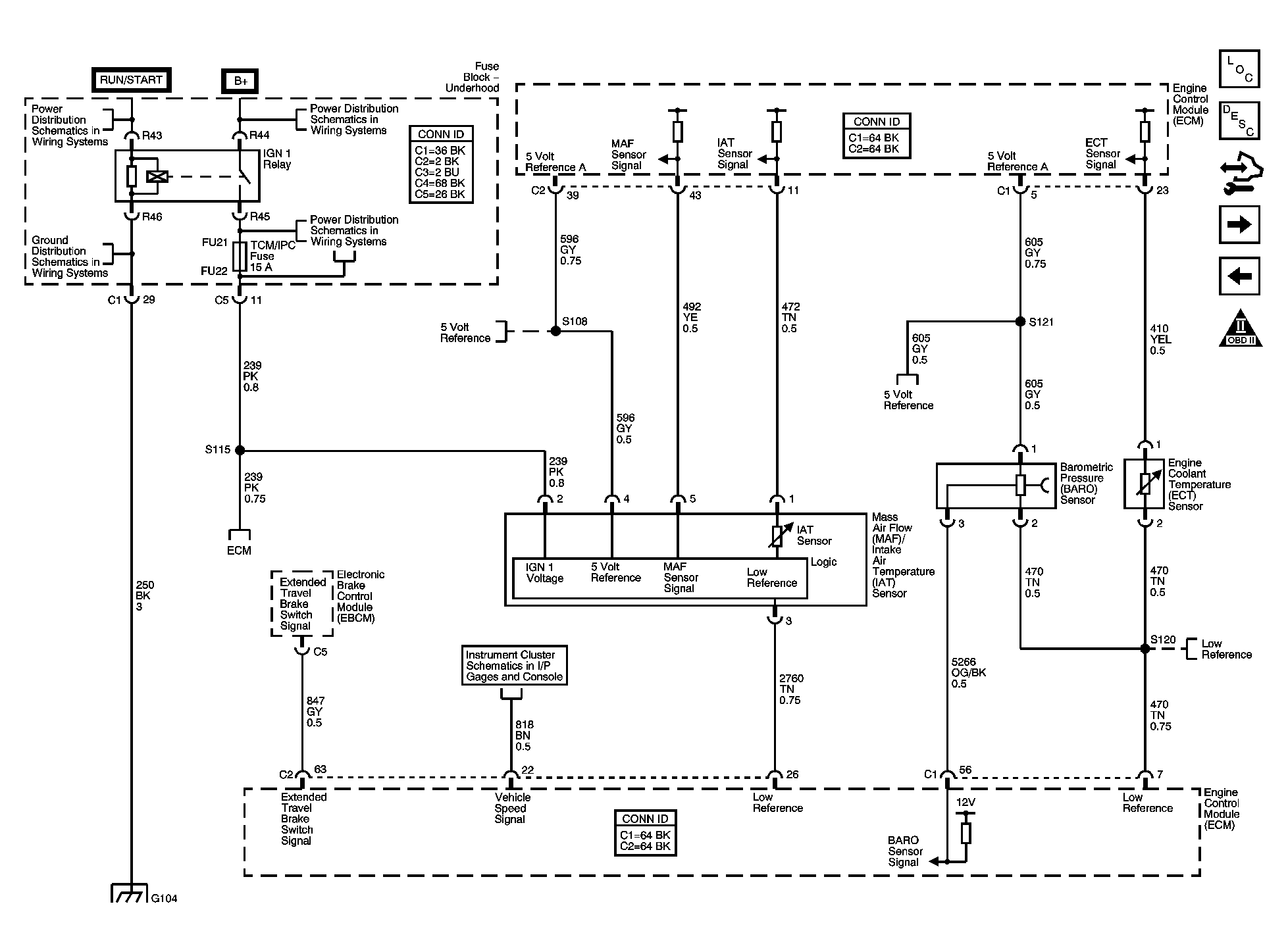

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS, and Extended Travel Brake Switch

Courtesy of GENERAL MOTORS CORP.

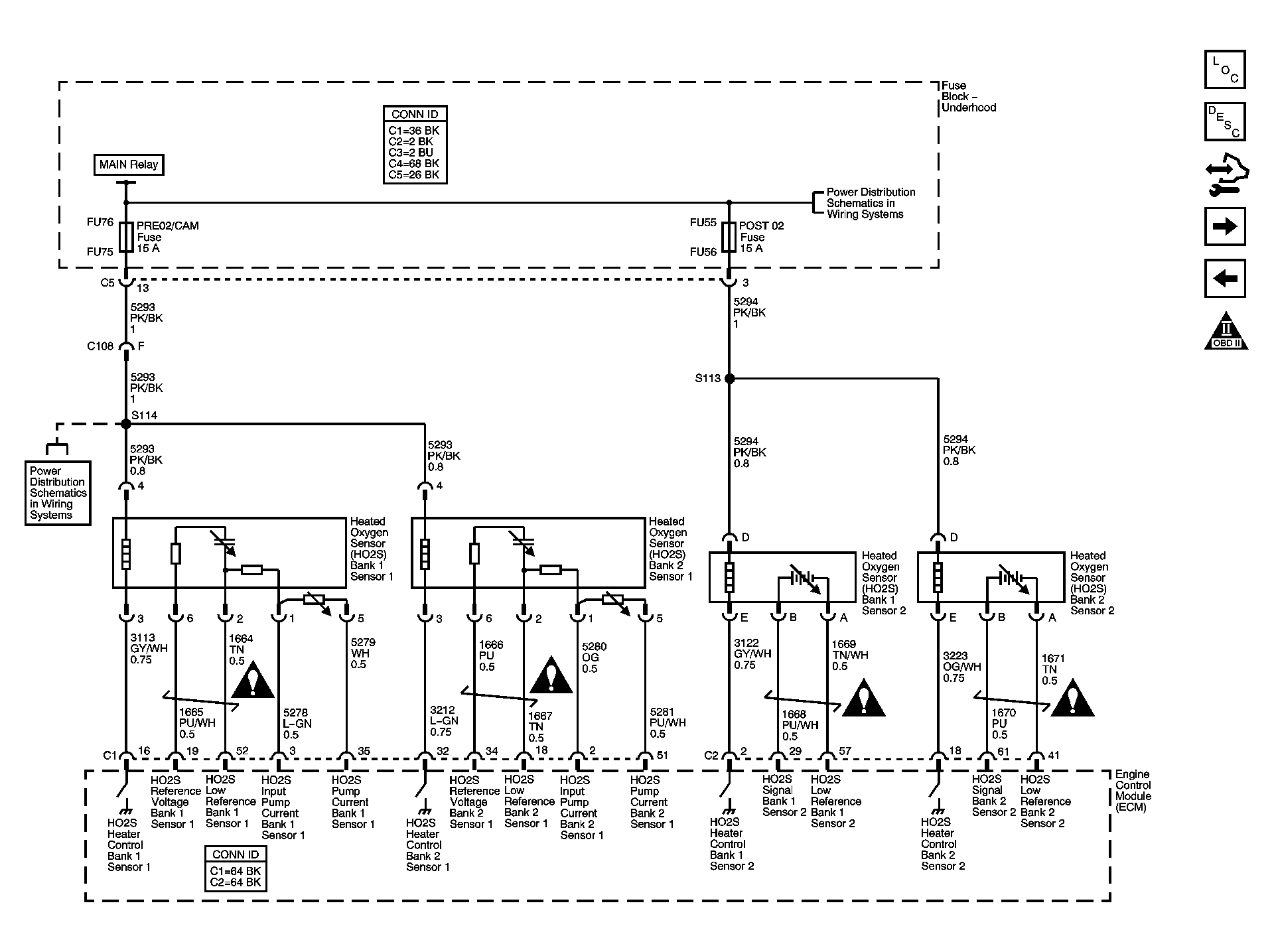

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

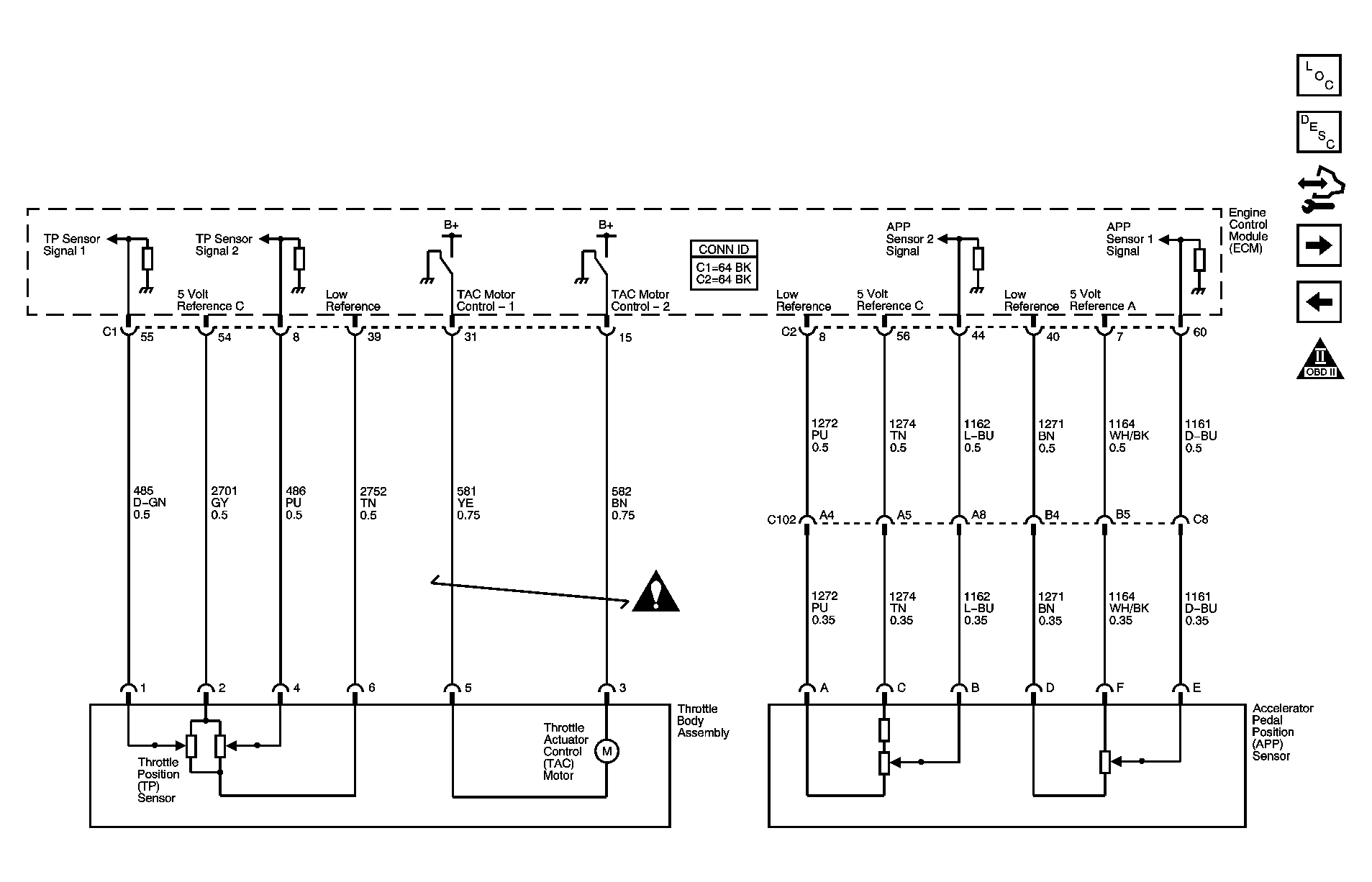

Fig 6: Engine Data Sensors - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

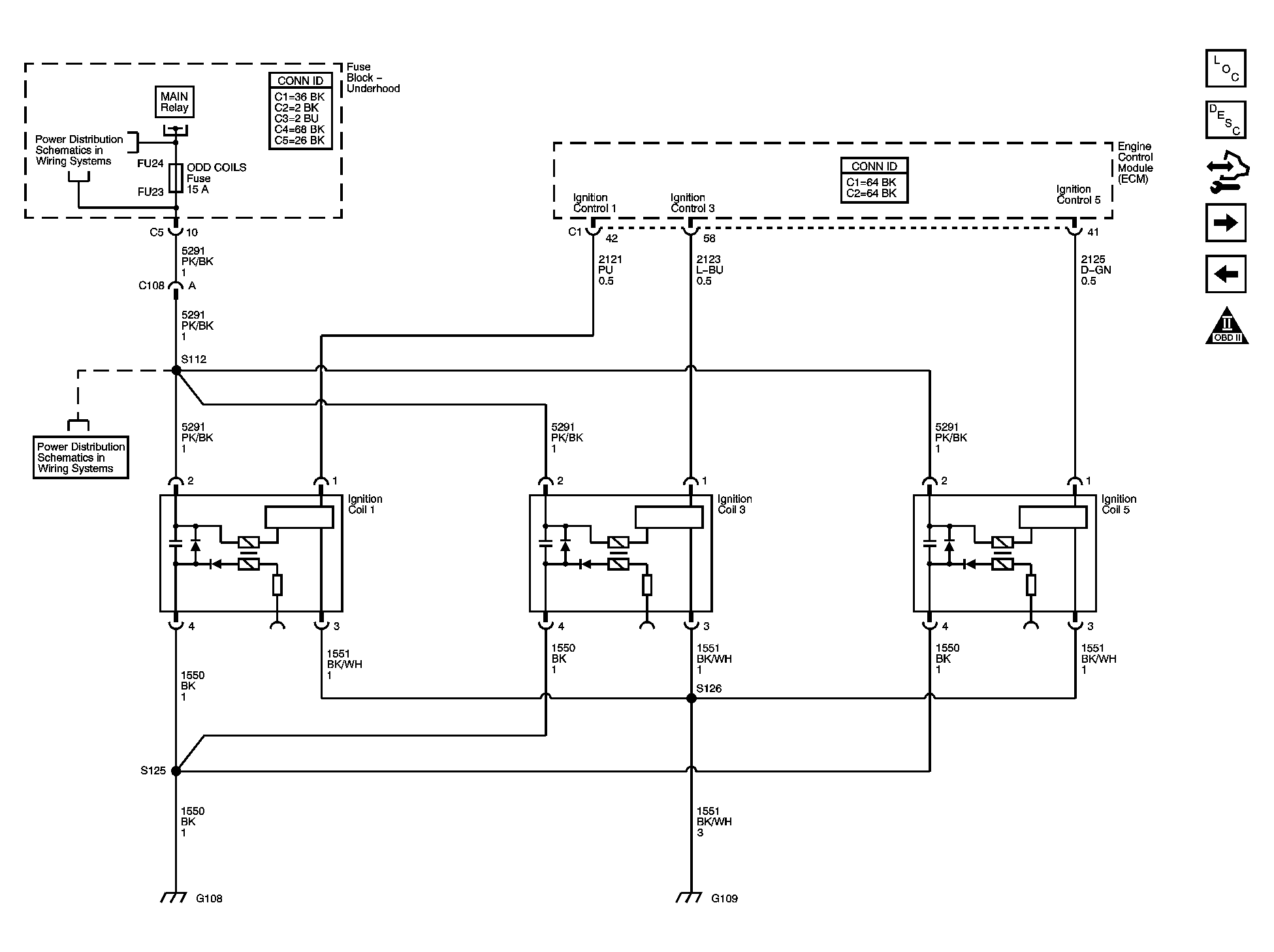

Fig 7: Ignition Controls - Bank 1 Ignition Controls

Courtesy of GENERAL MOTORS CORP.

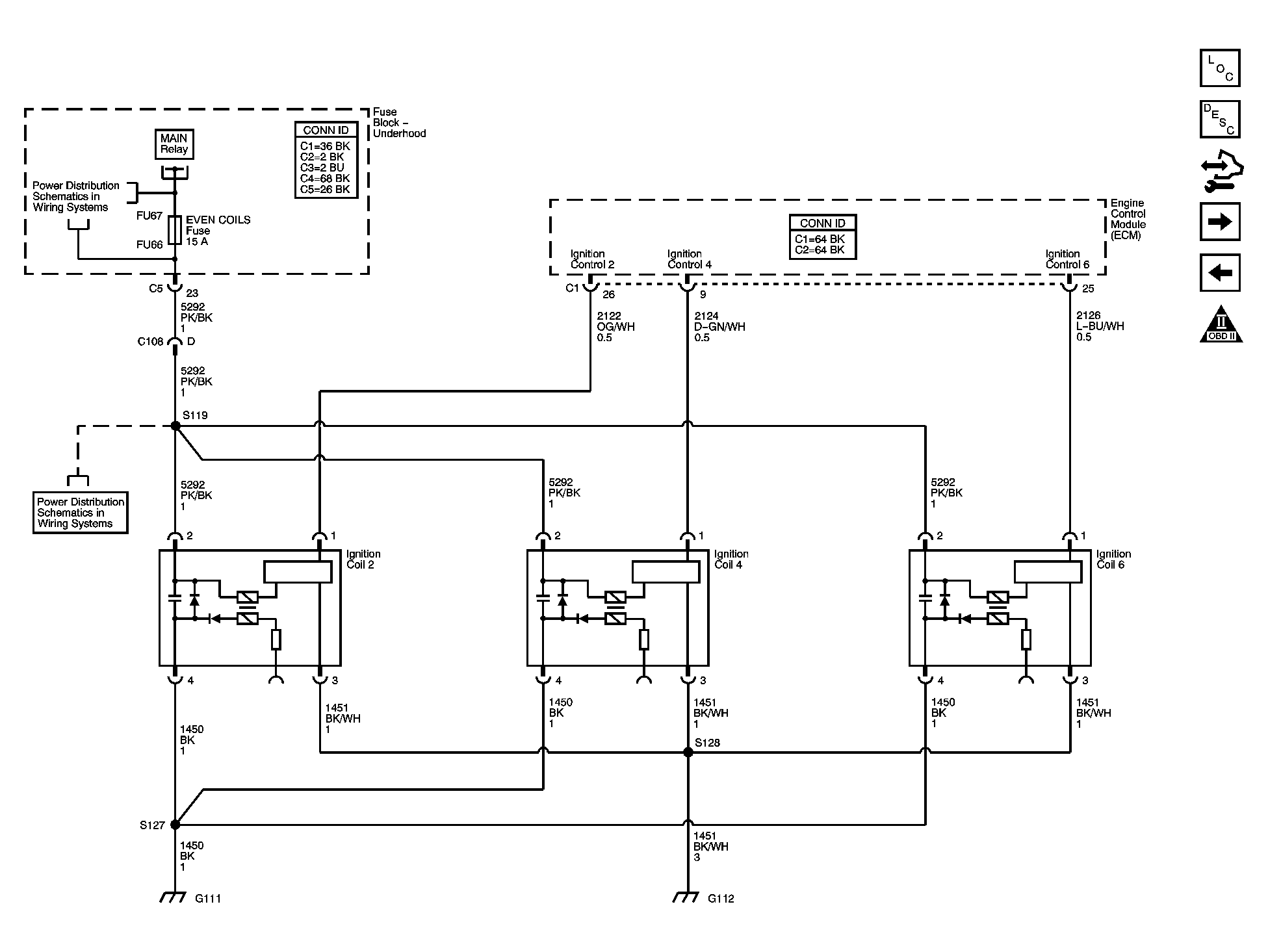

Fig 8: Ignition Controls - Bank 2 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

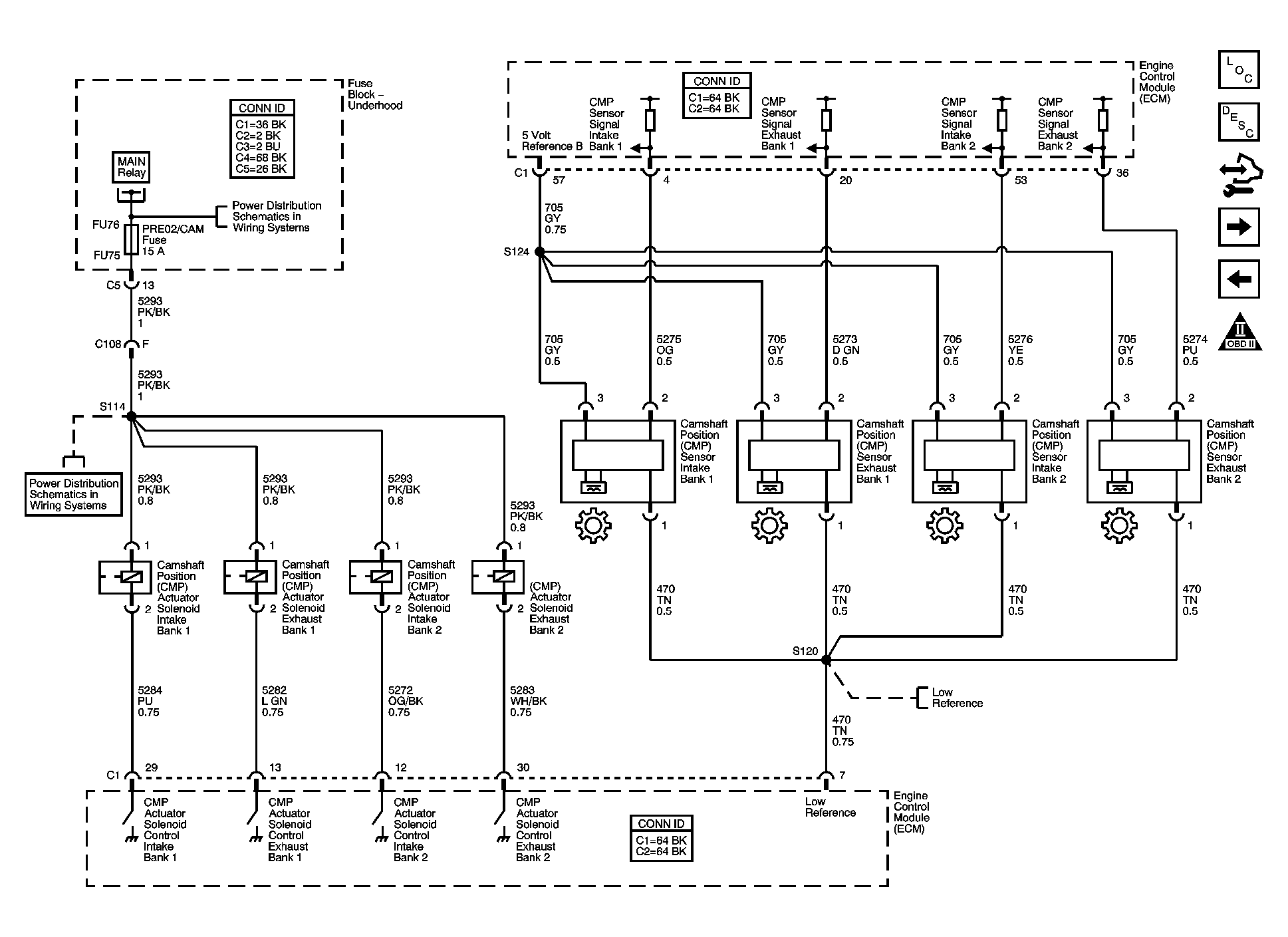

Fig 9: Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls - Engine Speed, CKP and Knock Sensors

Courtesy of GENERAL MOTORS CORP.

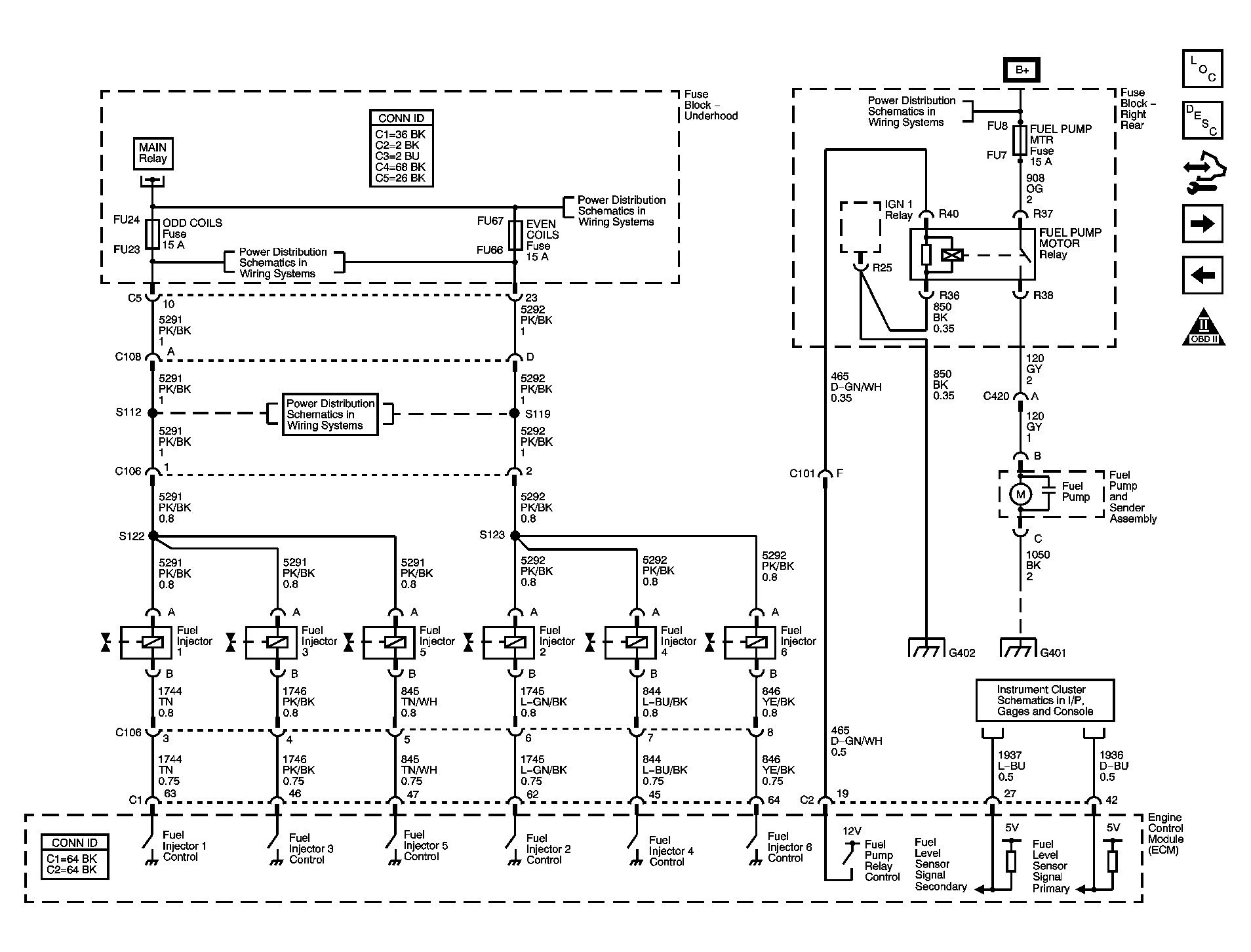

Fig 11: Fuel Controls - Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

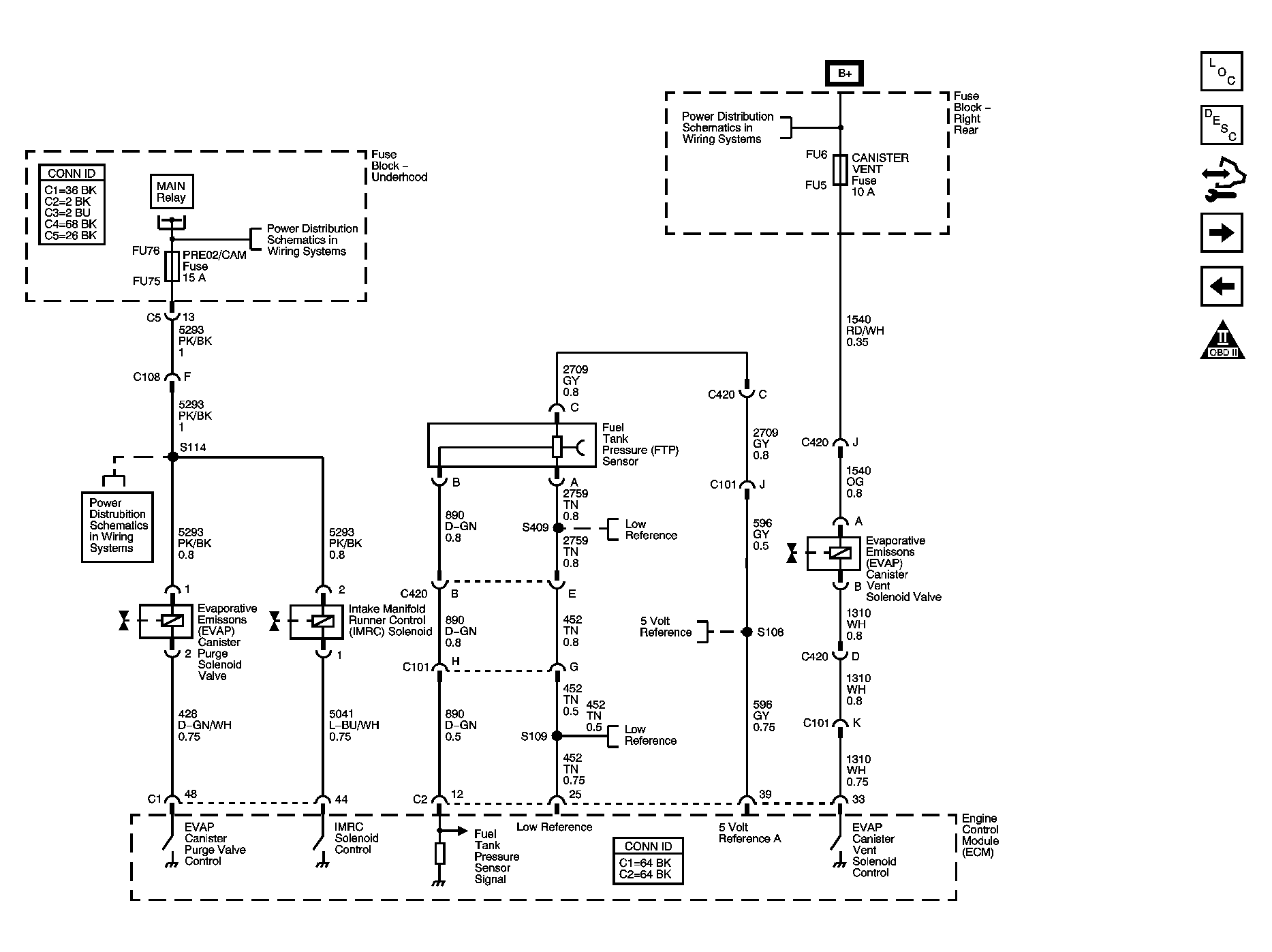

Fig 12: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

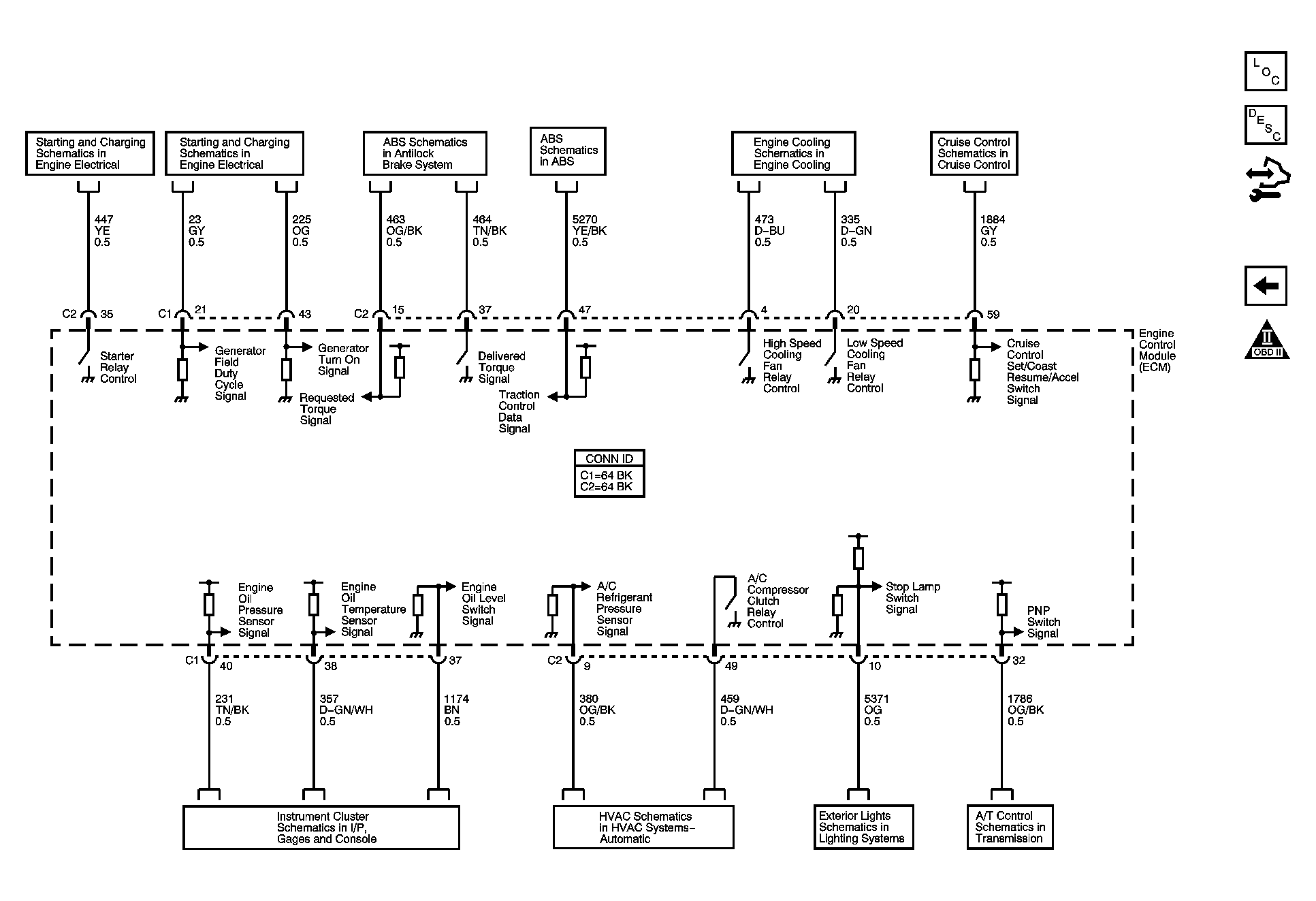

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
