Adjustable Pedals Schematics

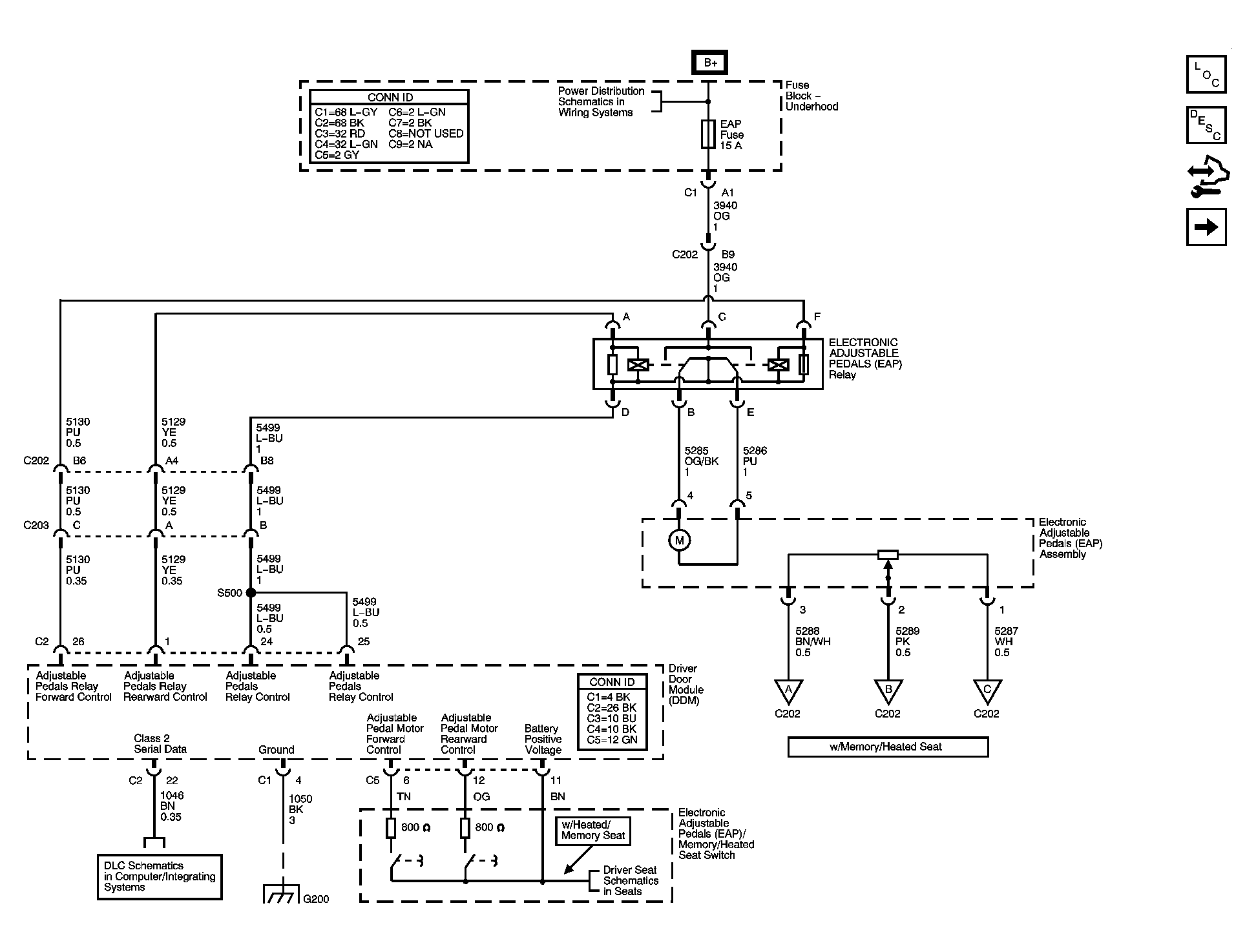

Fig 1: Power and Pedals Controls

GM1608867

Courtesy of GENERAL MOTORS CORP.

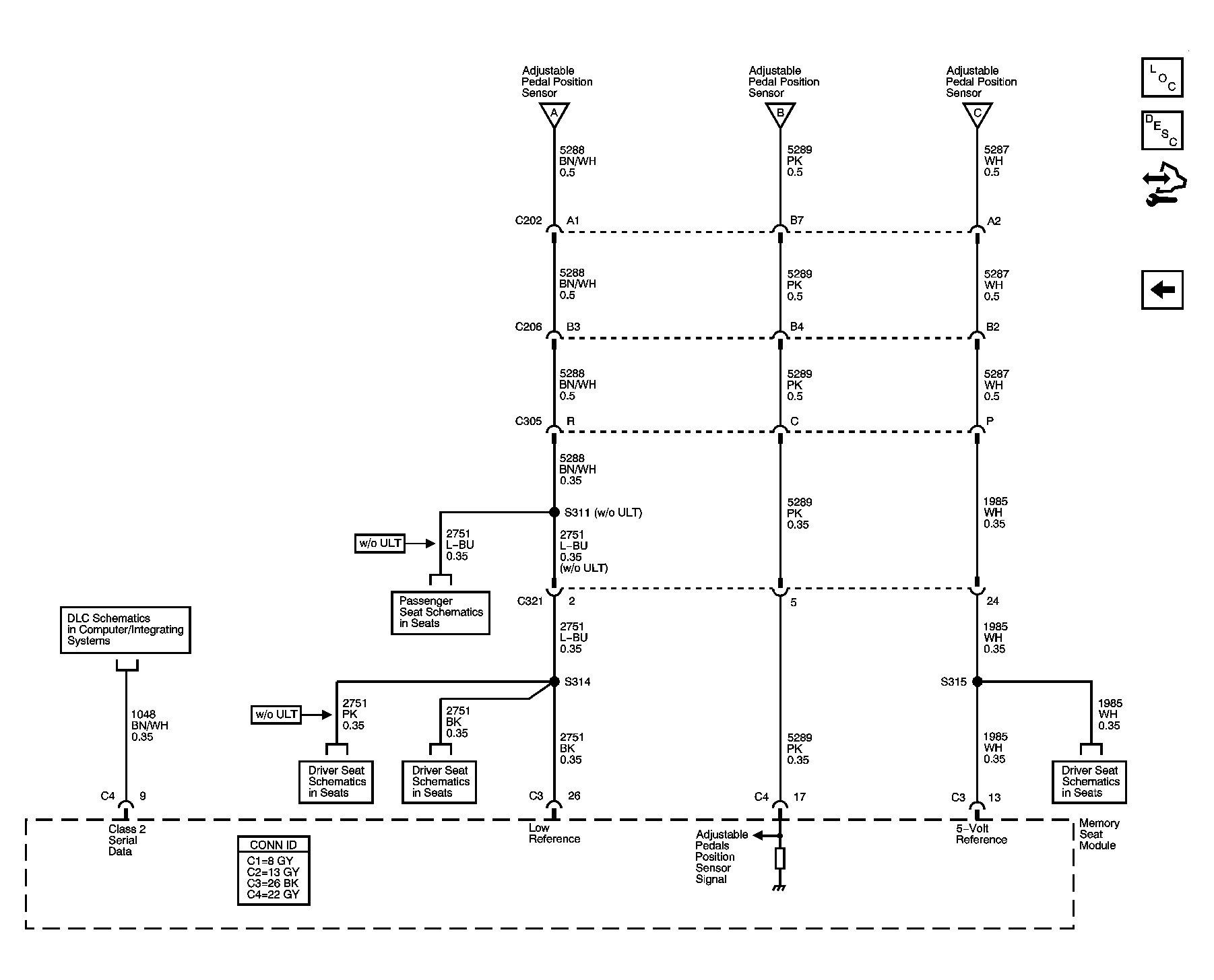

Fig 2: Memory Seat Module

GM1608868

Courtesy of GENERAL MOTORS CORP.
