Cruise Control Schematics
Cruise Control Schematics

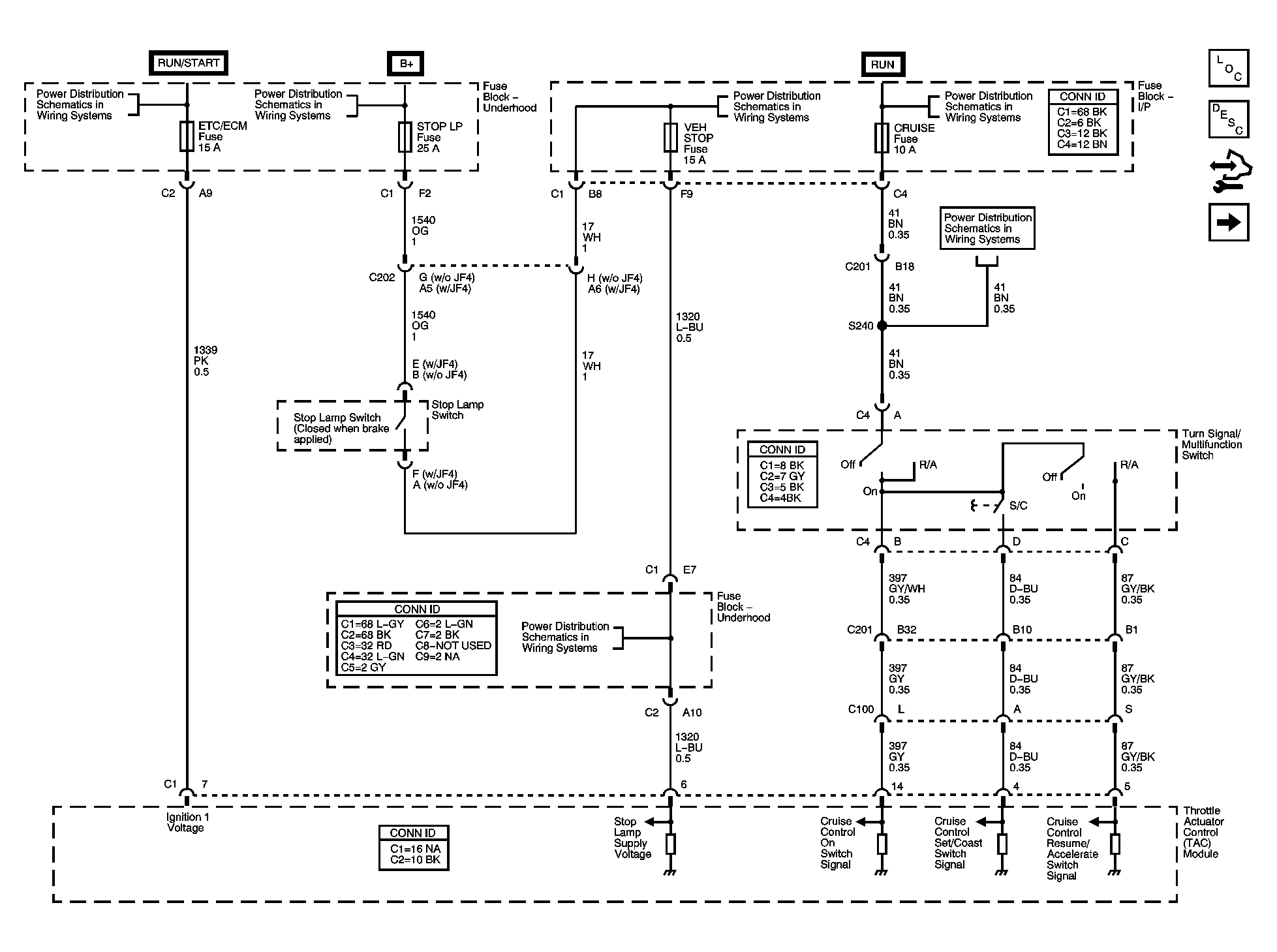

Fig 1: Power, Cruise Control Switch, and Stop Lamp Feed
Courtesy of GENERAL MOTORS CORP.

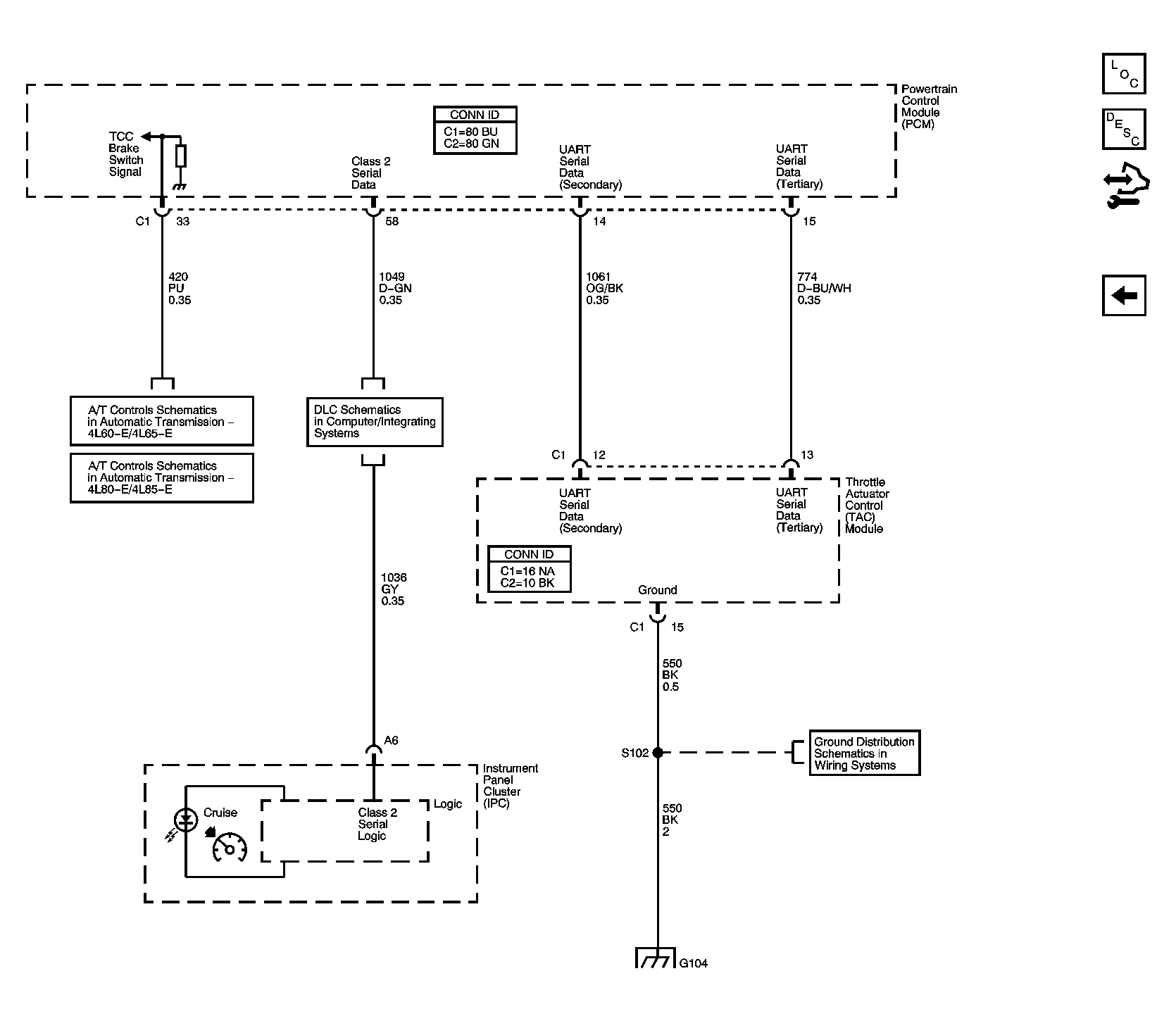

Fig 2: Ground and Class 2 Serial Data
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
