ABS Schematics

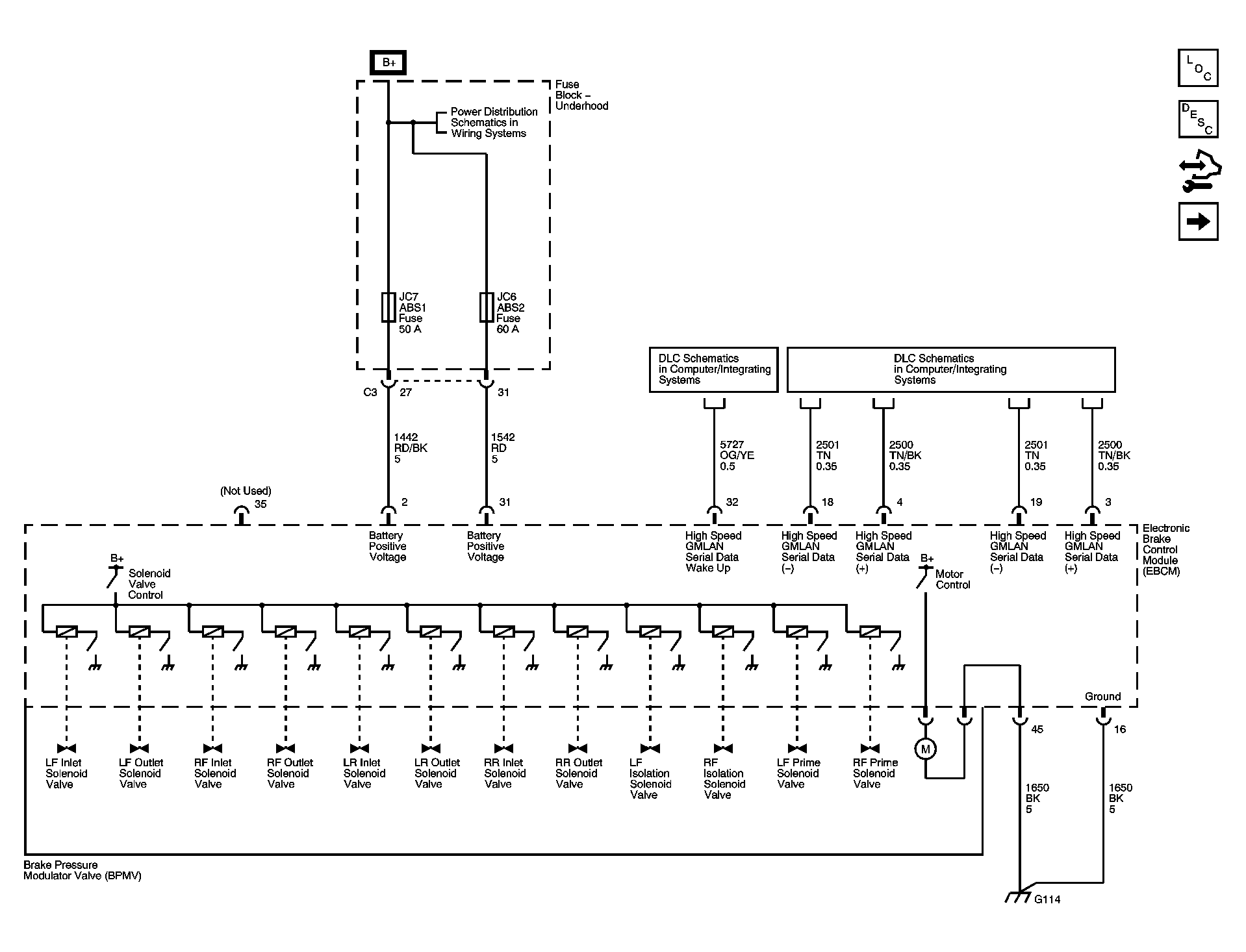

Fig 1: Power and Ground

Courtesy of GENERAL MOTORS CORP.

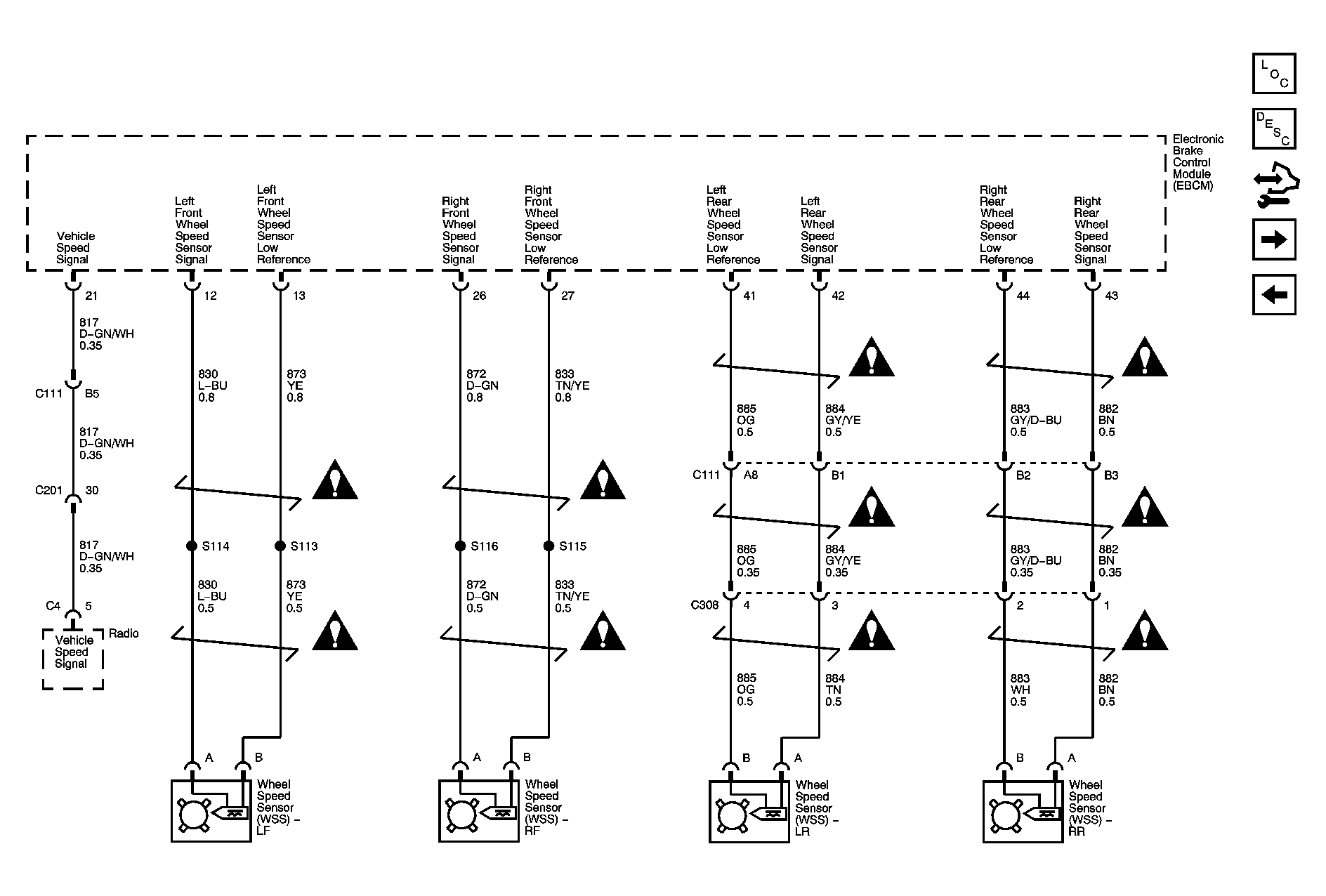

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

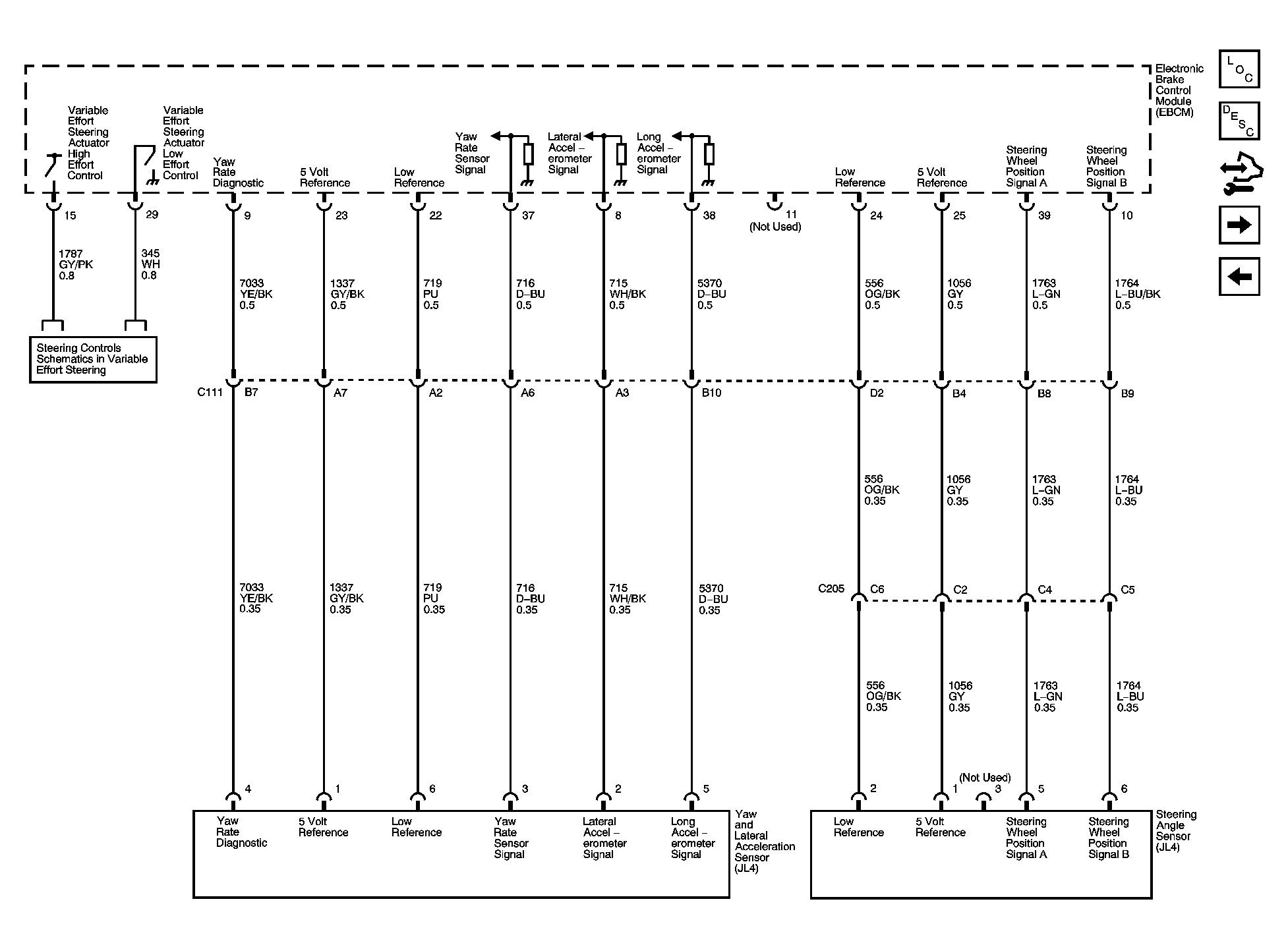

Fig 3: Yaw and Lateral Acceleration, Steering Angle Sensor

Courtesy of GENERAL MOTORS CORP.

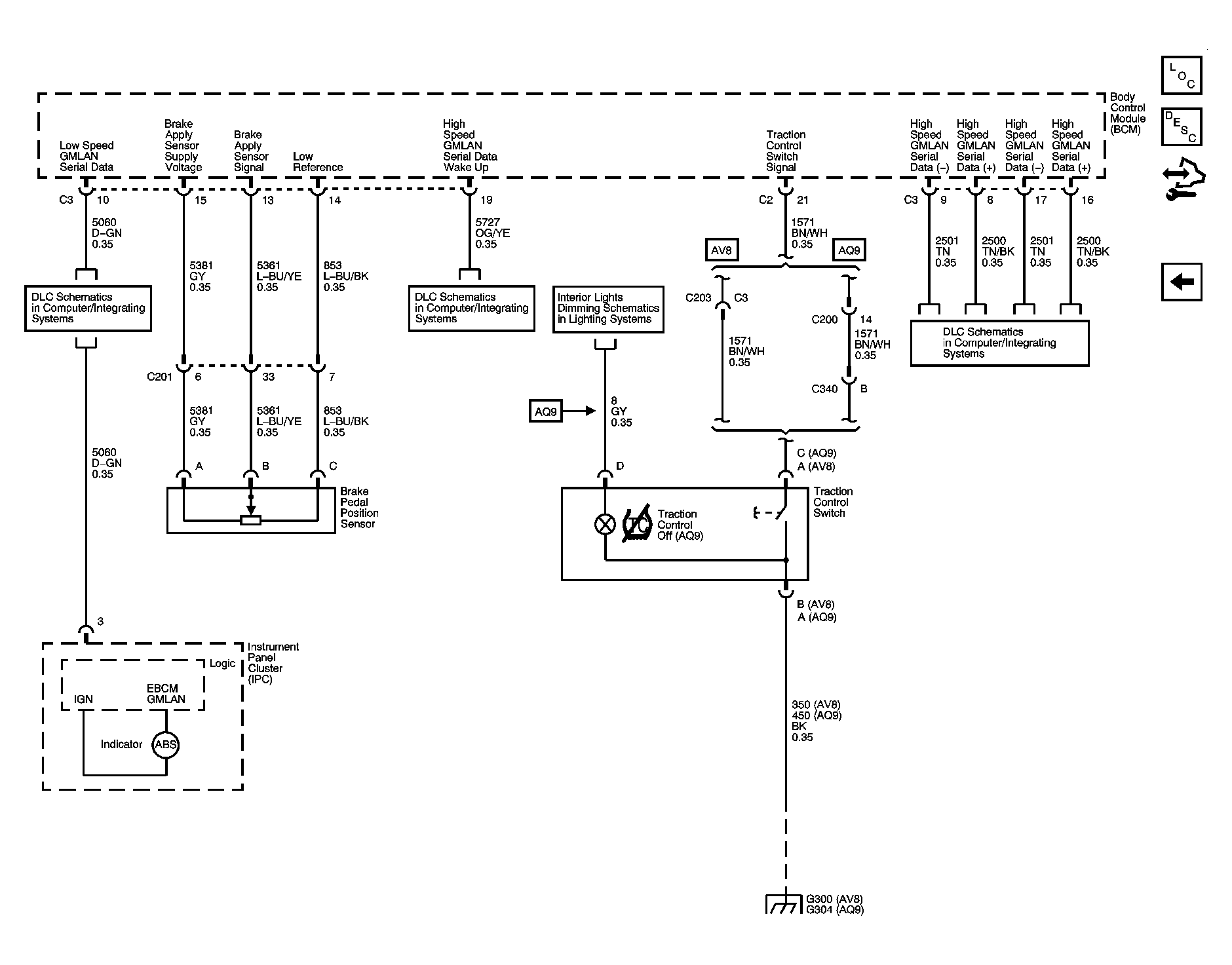

Fig 4: Brake Pedal Position, Traction Control Switch, Data Link Communications

Courtesy of GENERAL MOTORS CORP.
