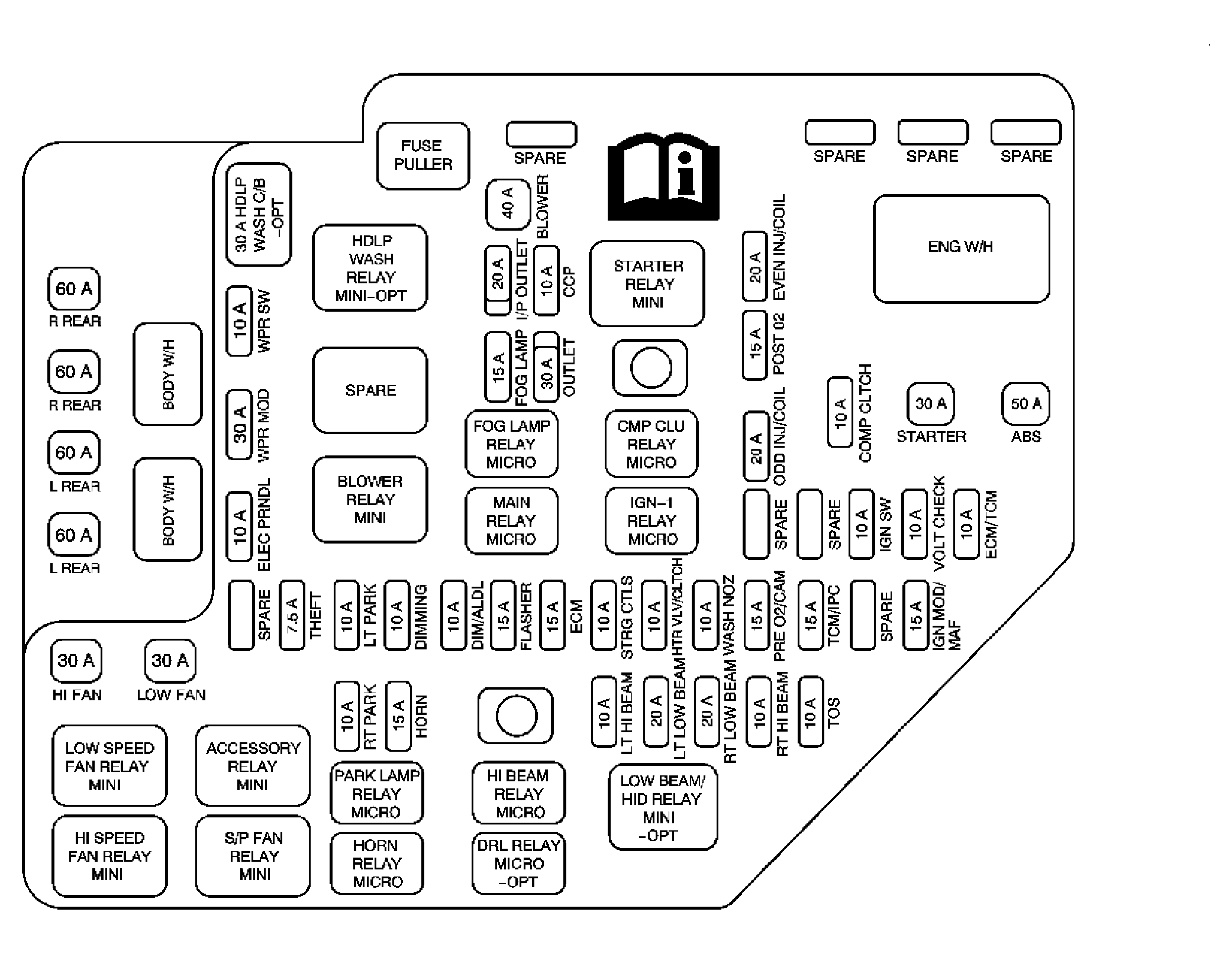

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usage
| Device | Rating | Description |
|---|---|---|
| ABS Fuse | 50 A | Electronic Brake Control Module (EBCM) |
| ACCESSORY Relay | - | ELEC PRNDL, WPR MOD, and WPR SW Fuses |
| BLOWER Fuse | 40 A | BLOWER Relay |
| BLOWER Relay | - | Blower Motor Control Module and Blower Motor |
| BODY W/H | - | Underhood Fuse Block C2 (2-Way Connector) and C3 (2-Way Connector) |
| CCP Fuse | 10 A | HVAC Control Module |
| CMP CLU Relay | - | Compressor Clutch |
| COMP CLTCH Fuse | 10 A | CMP CLU Relay |
| DIMMING Fuse | 10 A | Dash Integration Module (DIM) and License Lamps |
| DIM/ALDL Fuse | 10 A | Dash Integration Module (DIM) and Data Link Connector (DLC) |
| DRL Relay (T65) | - | LT LOW BEAM and RT LOW BEAM Fuses |
| ECM Fuse | 15 A | Engine Control Module (ECM) (LP1/LY7) |
| ECM/TCM Fuse | 10 A | Engine Control Module (ECM) (LP1/LY7), Powertrain Control Module (PCM) (LS2), Instrument Panel Cluster (IPC), Theft Deterrent Control Module and Transmission Control Module (TCM) (LP1/LY7 w/M82) |
| ELEC PRNDL Fuse | 10 A | Electronic PRNDL (M82) |
| ENG W/H | - | Underhood Fuse Block C5 (26-Way Connector) |
| EVEN INJ/COIL Fuse | 20 A | Fuel Injector 2 (LP1/LY7/LS2), Fuel Injector 4 (LP1/LY7/LS2), Fuel Injector 6 (LP1/LY7/LS2), Fuel Injector 8 (LS2), Ignition Coil 2 (LP1/LY7), Ignition Coil 4 (LP1/LY7), Ignition Coil 6 (LP1/LY7), Ignition Coil/Module 2 (LS2), Ignition Coil/Module 4 (LS2), Ignition Coil/Module 6 (LS2) and Ignition Coil/Module 8 (LS2) |
| FLASHER Fuse | 15 A | Turn Signal/Hazard Flasher Module |
| FOG LAMP Fuse | 15 A | FOG LAMP Relay |
| FOG LAMP Relay | - | Fog Lamps |
| FUSE PULLER | - | Fuse Puller |
| HDLP WASH Circuit Breaker | 30 A | HDLP WASH Relay (CE4) |
| HDLP WASH Relay | - | Headlamp Washer Fluid Pump (CE4) |
| HI BEAM Relay | - | LT HI BEAM and RT HI BEAM Fuses |
| HI FAN Fuse | 30 A | HI SPEED FAN Relay |
| HI SPEED FAN Relay | - | Cooling Fan - Left |
| HORN Fuse | 15 A | HORN Relay |
| HORN Relay | - | Horns |
| HTR VLV/CLTCH Fuse | 10 A | Clutch Pedal Position (CPP) Sensor (M35/M12), and Starter Relay (Japan and RHD w/M82) |
| IGN-1 Relay | - | HTR VLV/CLTCH, TCM/IPC, WASH NOZ, STRG CTLS and IGN MOD/MAF Fuses |
| IGN MOD/MAF Fuse | 15 A | Mass Air Flow (MAF) Sensor (LP1/LY7/LS2) |
| IGN SW Fuse | 10 A | Ignition Switch |
| I/P OUTLET Fuse | 20 A | Cigar Lighter |
| L REAR Fuse | 60 A | Fuse Block - Left Rear |
| L REAR Fuse | 60 A | Fuse Block - Left Rear |
| LOW BEAM/HID Relay | - | LT LOW BEAM and RT LOW BEAM Fuses |
| LOW FAN Fuse | 30 A | LO SPEED FAN Relay |
| LOW SPEED FAN Relay | - | Cooling Fan - Right |
| LT HI BEAM Fuse | 10 A | Headlamp - Left |
| LT LOW BEAM Fuse | 20 A | Headlamp - Left |
| LT PARK Fuse | 10 A | Headlamp - Left, Side Marker Lamp - LF, Tail Lamp - Left (Domestic), Marker Lamp - LR (Export) and L POSITION Relay (Export) |
| MAIN Relay | - | LO SPEED FAN, HI SPEED FAN and S/P FAN Relays, ECM, TOS, PRE O2/CAM, POST O2, ODD INJ/COIL and EVEN INJ/COIL Fuses |
| ODD INJ/COIL Fuse | 20 A | Fuel Injector 7(LS2), Ignition Coil 1 (LP1/LY7), Ignition Coil 3 (LP1/LY7), Ignition Coil 5 (LP1/LY7), Ignition Coil/Module 1 (LS2), Ignition Coil/Module 3 (LS2), Ignition Coil/Module 5 (LS2) and Ignition Coil/Module 7 (LS2) |
| OUTLET Fuse | 30 A | Auxiliary Power Outlet |
| PARK LAMP Relay | - | RT PARK, LT PARK and DIMMING Fuses |
| POST O2 Fuse | 15 A | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 and PUSHER FAN Relay (V92) |
| PRE O2/CAM Fuse | 15 A | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1, HO2S Bank 2 Sensor 1, Intake Manifold Runner Control (IMRC) Solenoid (LP1/LY7), EVAP Canister Purge Solenoid Valve (LP1/LY7), Camshaft Actuator Solenoid Intake Bank 1 (LP1/LY7), Camshaft Actuator Solenoid Exhaust Bank 1 (LP1/LY7), Camshaft Actuator Solenoid Intake Bank 2 (LP1/LY7), Camshaft Actuator Solenoid Exhaust Bank 2 (LP1/LY7), Reverse Lockout Solenoid (LS2) and Skip Shift Solenoid (LS2) |
| R REAR Fuse | 60 A | Fuse Block - Right Rear |
| R REAR Fuse | 60 A | Fuse Block - Right Rear |
| RT HI BEAM Fuse | 10 A | Headlamp - Right |
| RT LOW BEAM Fuse | 20 A | Headlamp - Right |
| RT PARK Fuse | 10 A | Headlamp - Right, Side Marker Lamp - RF, Tail Lamp - Right (Domestic), Marker Lamp - RR (Export) and R POSITION Relay (Export) |
| S/P FAN Relay | - | Cooling Fans |
| SPARE Fuse | - | Not Used |
| STARTER Fuse | 30 A | STARTER Relay |
| STARTER Relay | - | Starter Solenoid |
| STRG CTLS Fuse | 10 A | Steering Wheel Controls - Right (LS2) and Turn Signal/Multifunction Switch |
| TCM/IPC Fuse | 15 A | Instrument Panel Cluster (IPC), Engine Control Module (ECM) (LP1/LY7), Powertrain Control Module (PCM) (LS2), Throttle Actuator Control (TAC) Module (LS2) and Transmission Control Module (TCM) (M82) |
| THEFT Fuse | 7.5 A | Engine Control Module (ECM) (LP1/LY7), Theft Deterrent Control Module and Transmission Control Module (TCM) (M82) |
| TOS Fuse | 10 A | Vehicle Speed Sensor (VSS) (M35), EVAP Canister Purge Solenoid Valve (LS2) |
| VOLT CHECK Fuse | 10 A | Dash Integration Module (DIM) |
| WASH NOZ Fuse | 10 A | Heated Washer Nozzles (XA7) and Headlamps (TR7) |
| WPR MOD Fuse | 30 A | Windshield Wiper/Washer Module |
| WPR SW Fuse | 10 A | Windshield Wiper/Washer Switch |
