Theft Deterrent System Component Views (RHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

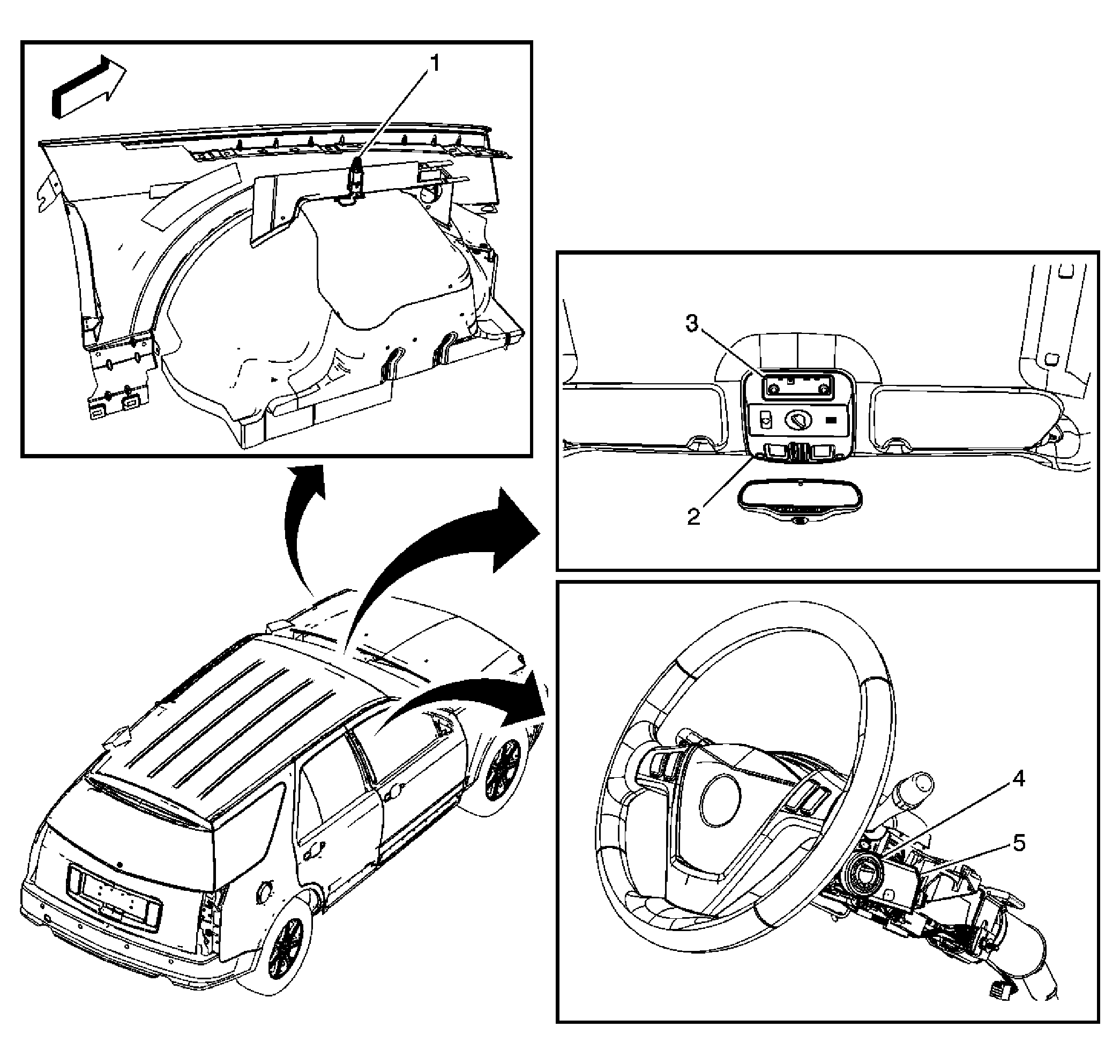

Fig 1: View Of Theft Deterrent Components (UA6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch
2	Overhead Console
3	Intrusion Sensor
4	Ignition Switch
5	Theft Deterrent Module (TDM)

Fig 2: Right Rear Of Vehicle Behind Trim Panel (UA2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inclination Sensor
2	Theft Deterrent Alarm Siren

Fig 3: View Of Right Rear of Cargo Compartment (Export)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna Module-Right
2	Rear Window Antenna Assembly-Right
3	Digital Radio Receiver (U2K)
4	Rear Body Control Module (RBCM)
5	Theft Deterrent Alarm Siren (UA6)
