Power Window Schematics
Power Window Schematics

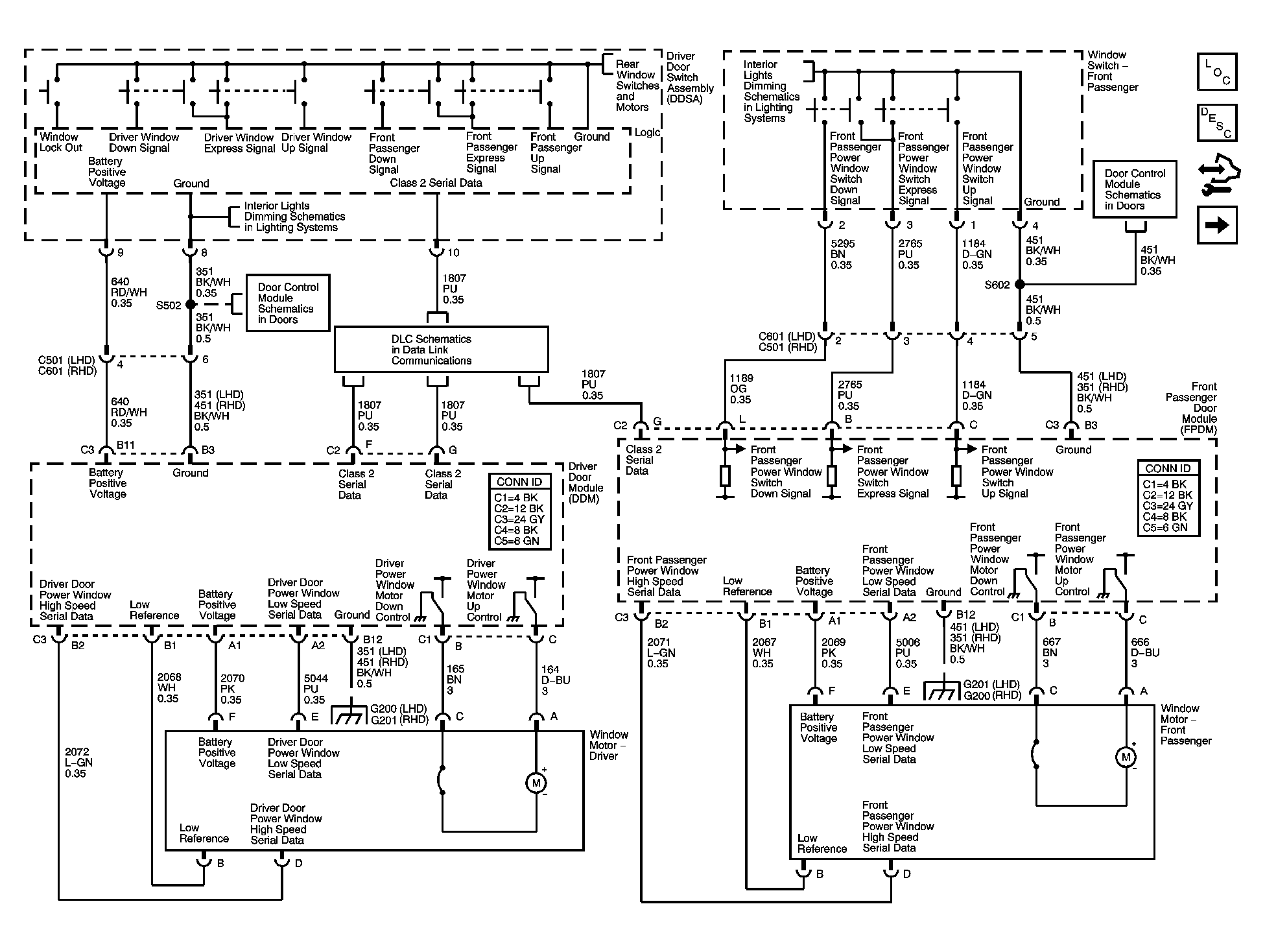

Fig 1: Front Power Window Switches and Motor
Courtesy of GENERAL MOTORS CORP.

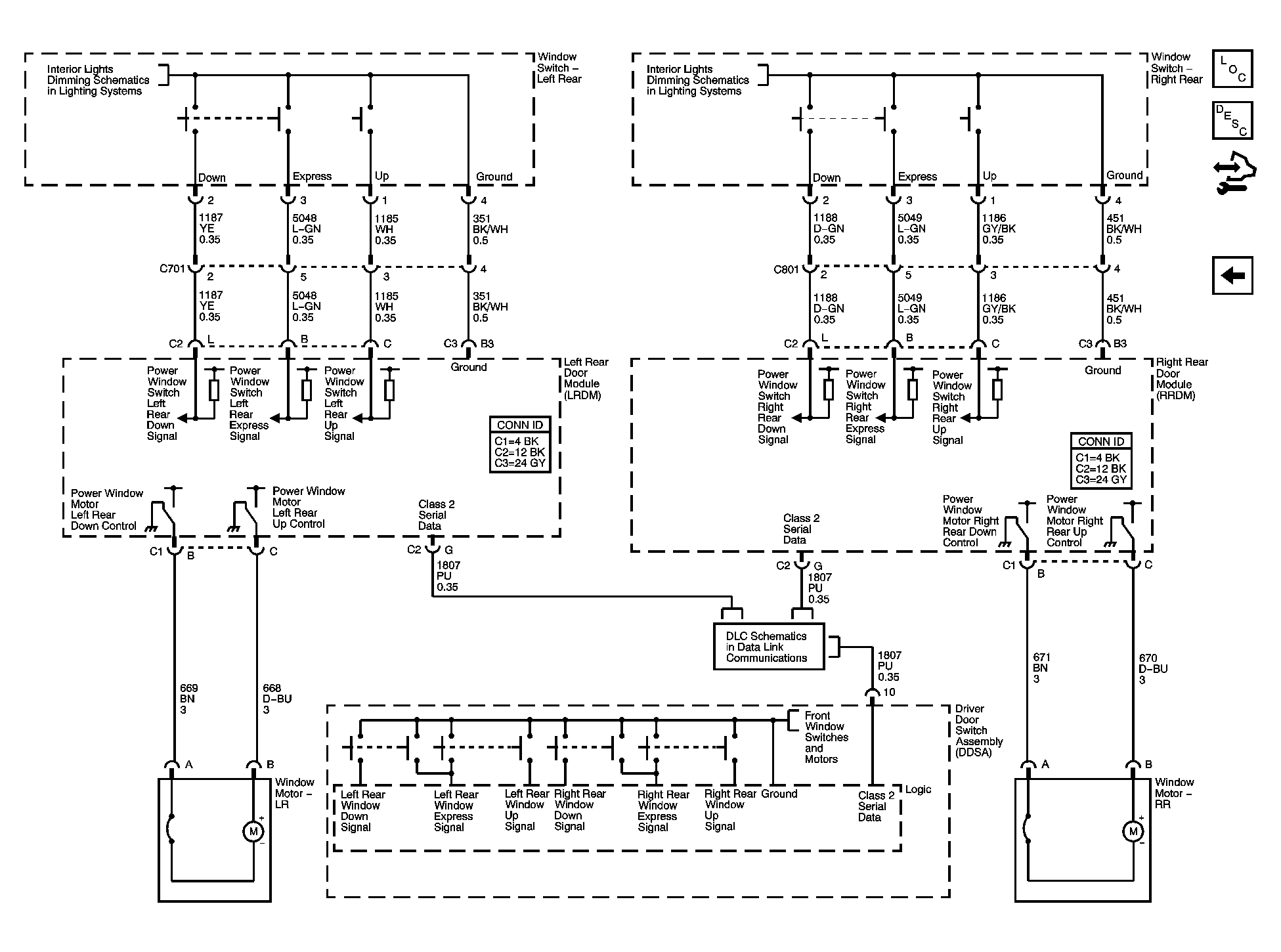

Fig 2: Rear Power Window Switches and Motors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
