Engine Data Sensors - Low Reference Bus Schematics

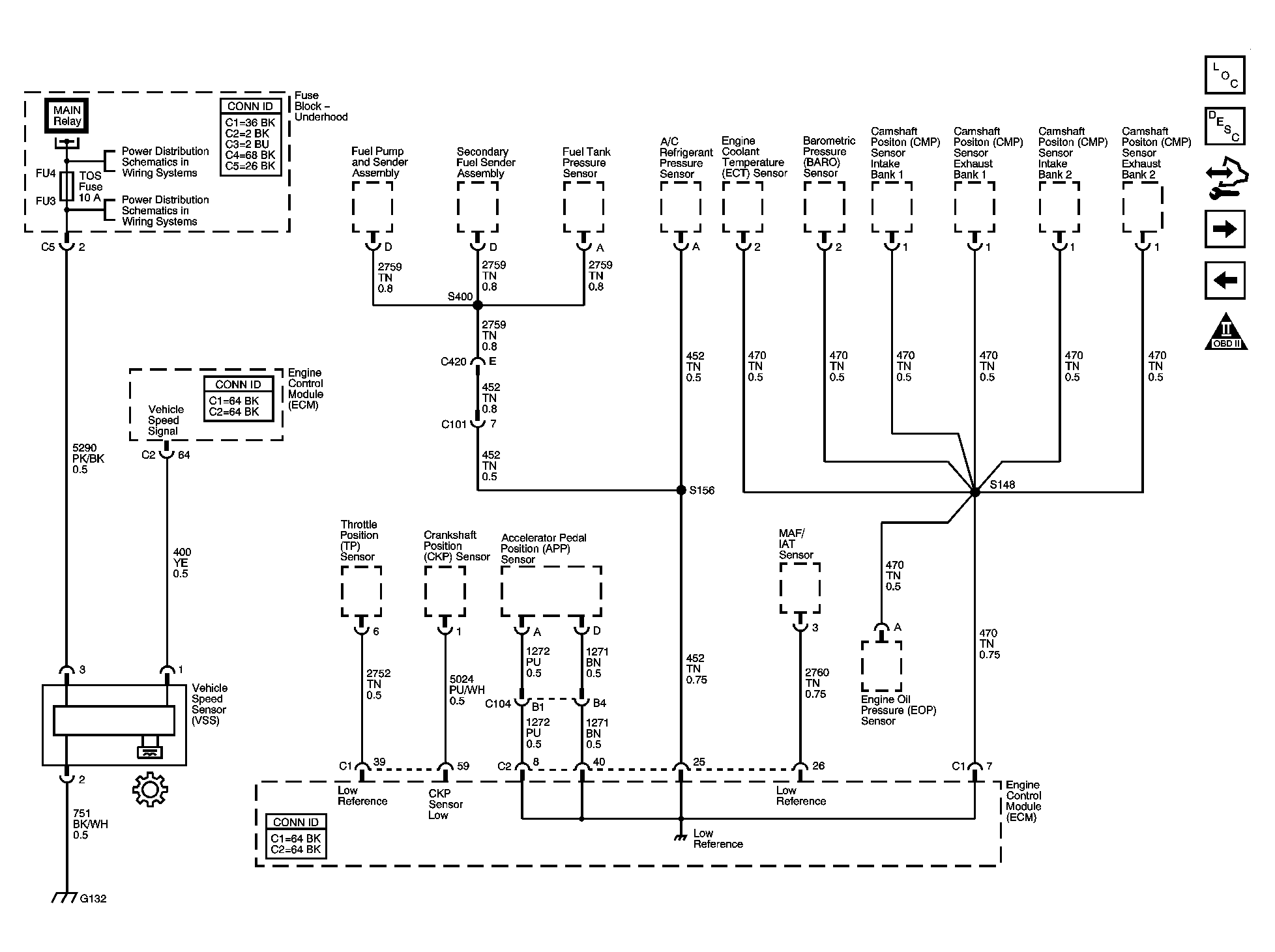

Fig 1: Engine Data Sensors - Low Reference Bus

GM1592597

Courtesy of GENERAL MOTORS CORP.
