ABS Schematics

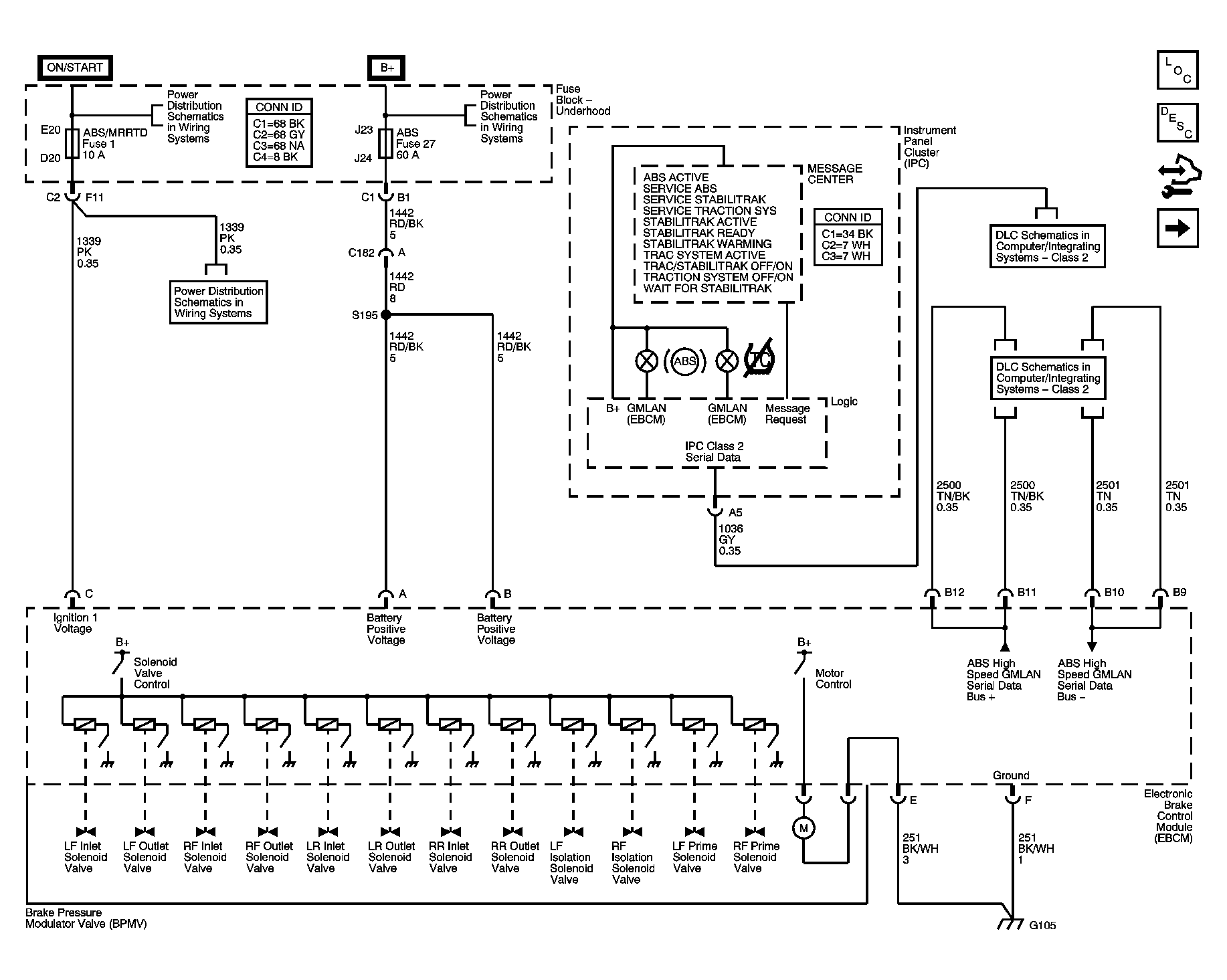

Fig 1: Ground, Indicators, Messages, and Power Schematics
GM1480600Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors Schematics
GM1480603Courtesy of GENERAL MOTORS CORP.

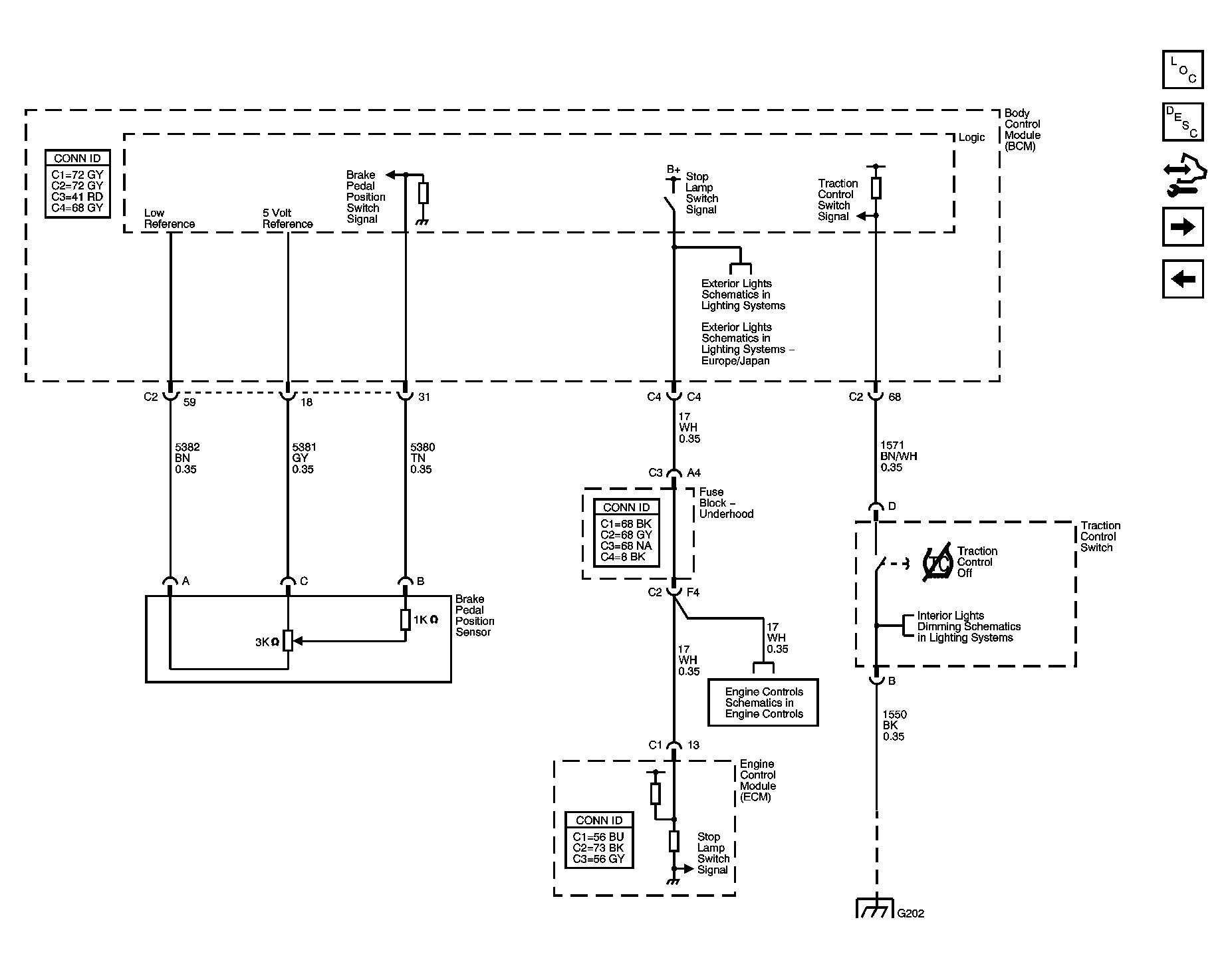

Fig 3: Brake Pedal Signal and Traction Control Switch Schematics
GM1480604Courtesy of GENERAL MOTORS CORP.
Fig 4: Stability Control Sensors Schematics
GM1480606Courtesy of GENERAL MOTORS CORP.
