ABS Schematics

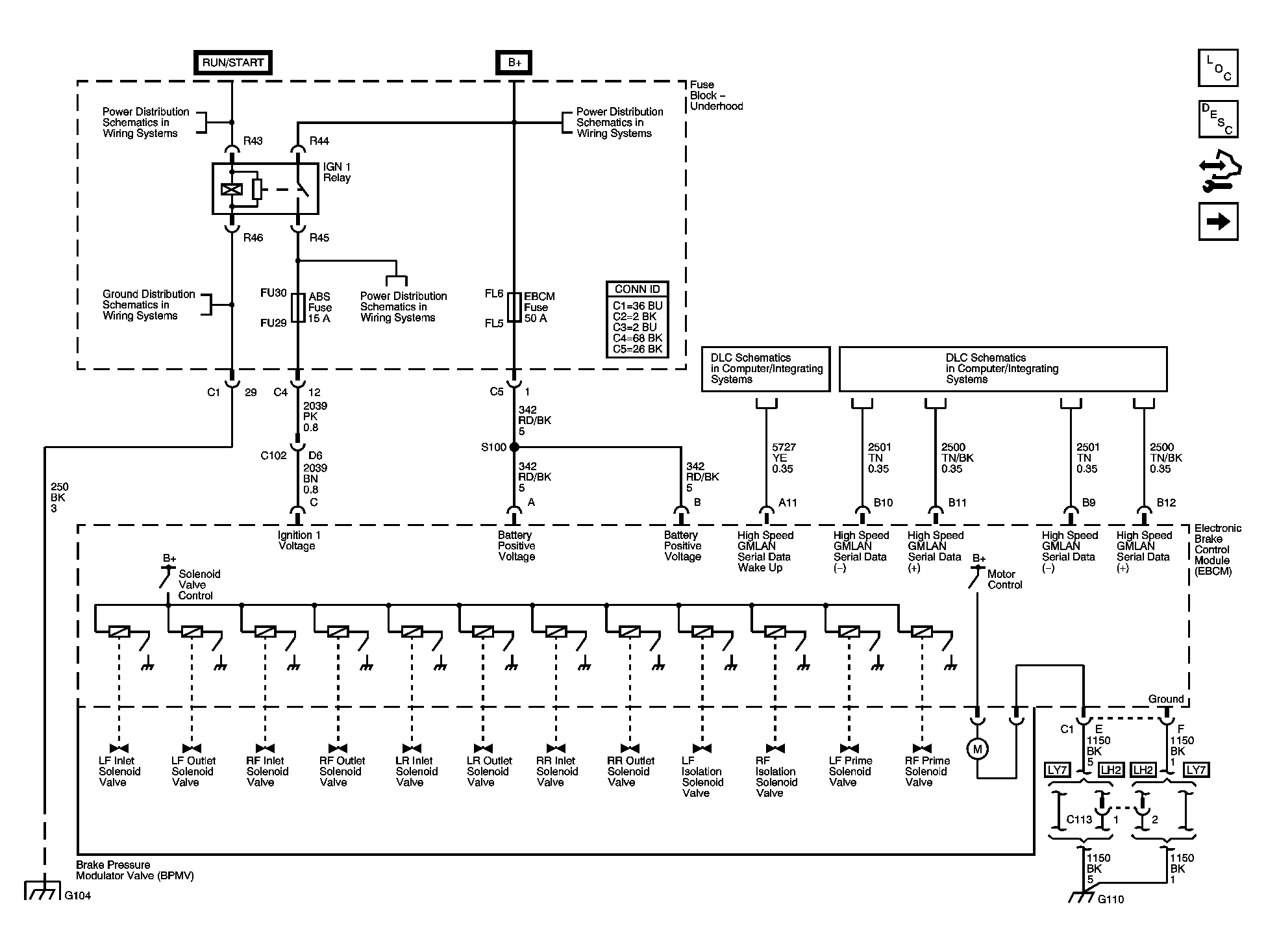

Fig 1: EBCM Module Power, Ground and DLC Schematics
GM1396254Courtesy of GENERAL MOTORS CORP.

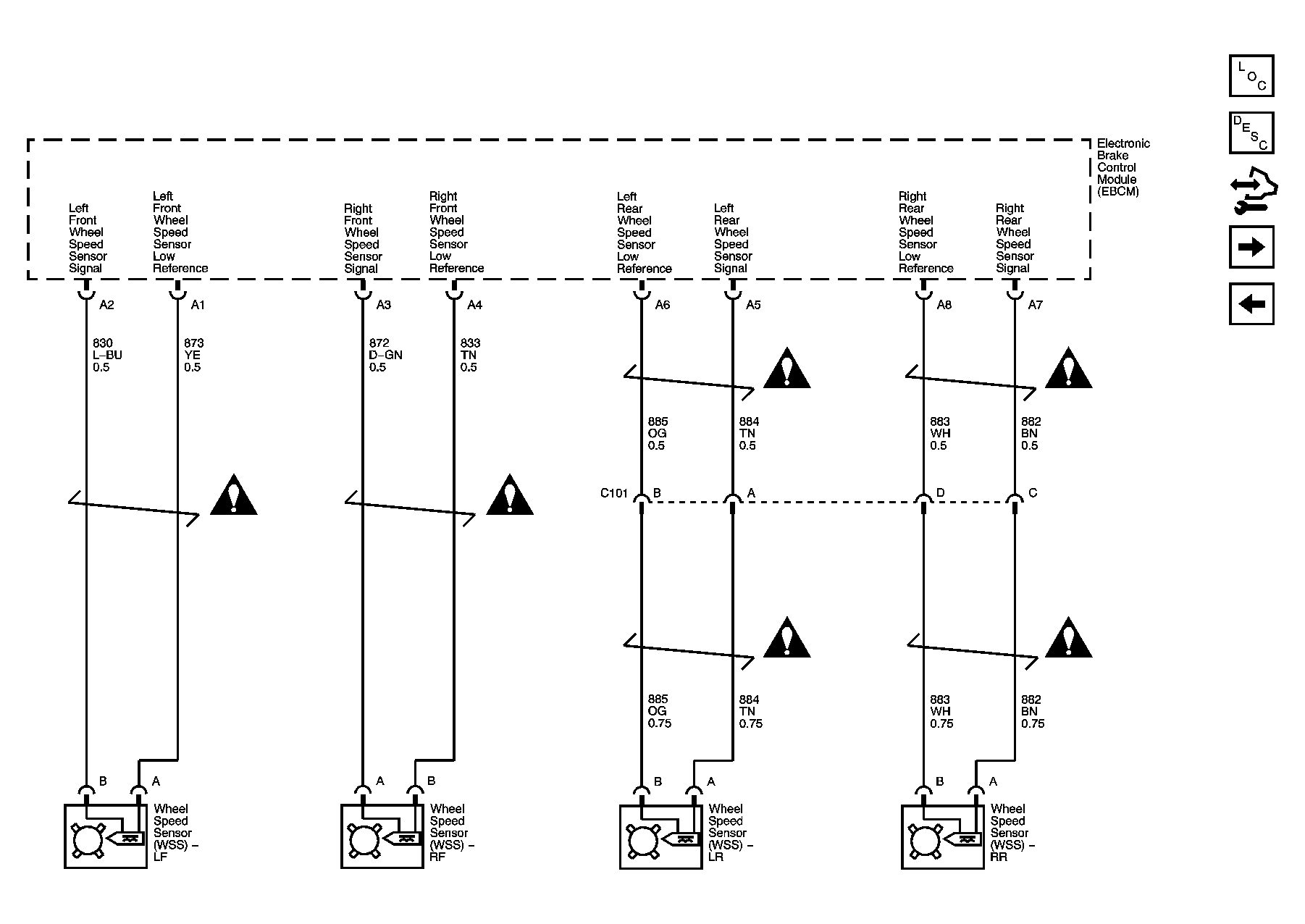

Fig 2: Wheel Speed Sensors Schematics
GM1396255Courtesy of GENERAL MOTORS CORP.

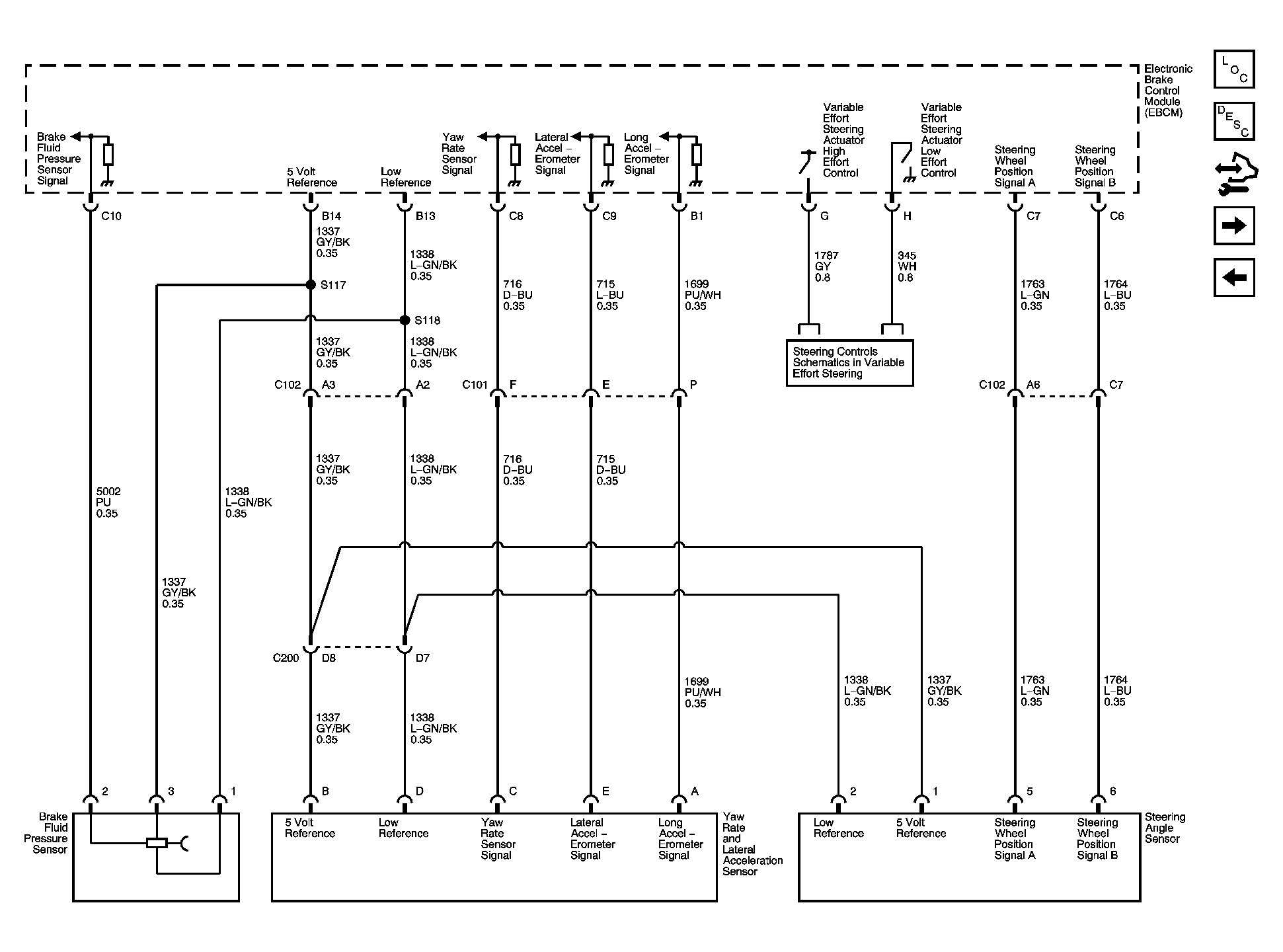

Fig 3: Stability Control System Schematics
GM1396257Courtesy of GENERAL MOTORS CORP.

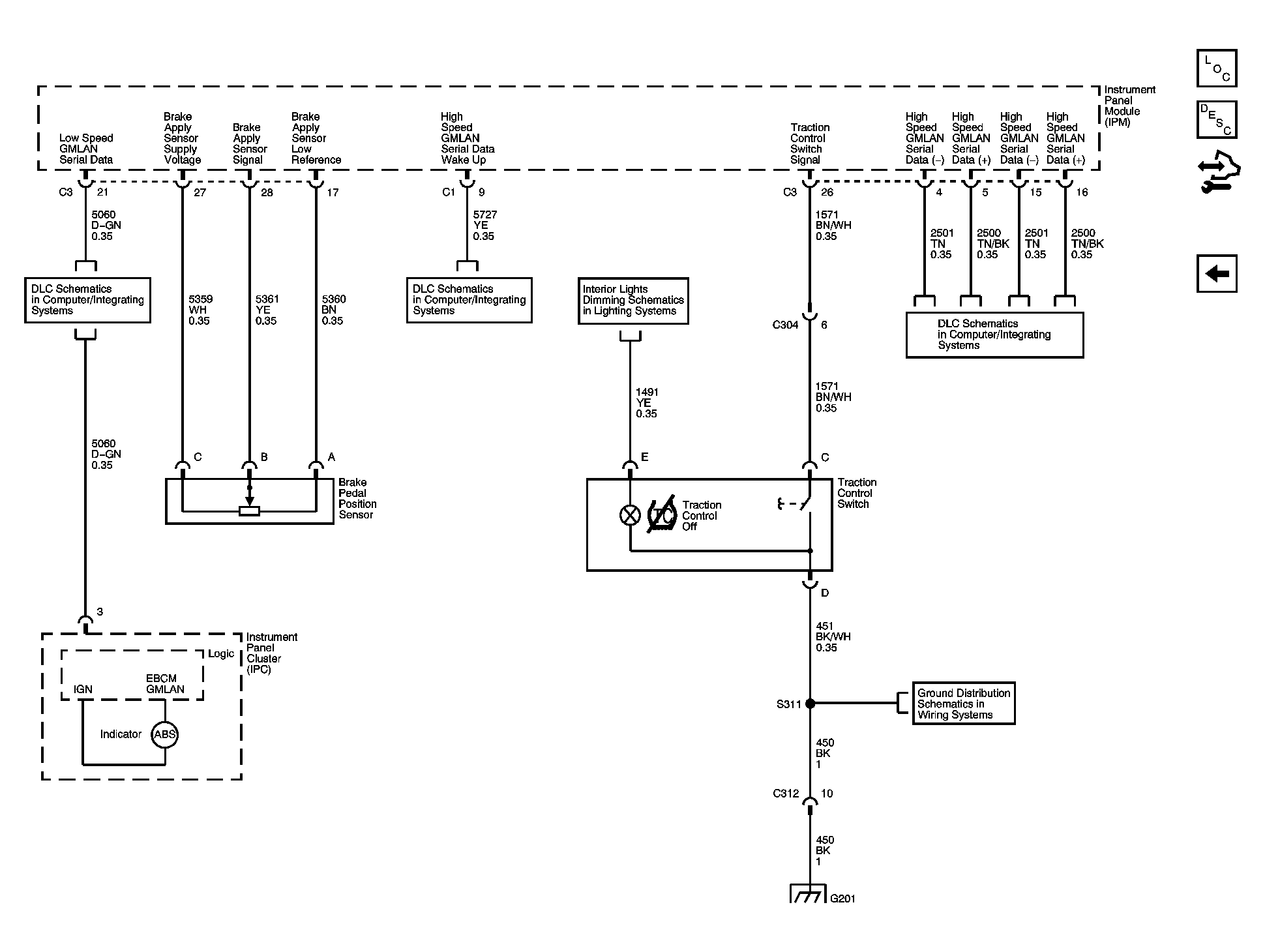

Fig 4: Indicator and Traction Control Schematics
GM1396260Courtesy of GENERAL MOTORS CORP.
