Power Seat Systems Connector End Views

Climate Control Seat Module - Passenger C1 Connector End View (w/KA1/KB6)

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052856
  • Service:
  • 4-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU 2479 Passenger Heated Seat Element Supply Voltage
B RD/WH 2540 Battery Positive Voltage
C - - Not Used
D PK 2077 Driver Heated Seat Element Supply Voltage
Climate Control Seat Module - Passenger C2 Connector End View (w/KA1/KB6)

GM1519708Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15-97-5121
  • Service:
  • 12-Way F Mini Fit Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BN 41 Run Ignition 3 Voltage
4 - - Not Used
5 PK 2435 Passenger Heated Seat NTC Low Reference
6 BK 650 Ground
7 GY 791 PWM Serial Data
8 WH 790 PWM Serial Data
9 WH 5915 Passenger Seat Fan Speed Control (KB6)
10 YE/BK 2079 Driver Heated Seat NTC Signal
11 GY 2434 Passenger Heated Seat NTC Signal
12 OG 5919 Driver Seat Fan Speed Control (KB6)
Cooled Seat Blower Motor - Driver Back Connector End View (w/KB6)

GM309465Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12065423
  • Service:
  • 3-Way M Metri-Pack 150 Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-BU 5919 Driver Seat Fan Speed Control
B BK 550 Ground
C RD/WH 2840 Battery Positive Voltage
Cooled Seat Blower Motor - Driver Cushion Connector End View (w/KB6)

GM309465Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12065423
  • Service:
  • 3-Way M Metri-Pack 150 Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-BU 5919 Driver Seat Fan Speed Control
B BK 550 Ground
C RD/WH 2840 Battery Positive Voltage
Cooled Seat Blower Motor- Passenger Back Connector End View (w/KB6)

GM309465Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12065423
  • Service:
  • 3-Way M Metri-Pack 150 Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A WH 5915 Driver Seat Fan Speed Control
B BK 650 Ground
C RD/WH 2540 Battery Positive Voltage
Cooled Seat Blower Motor - Passenger Cushion Connector End View (w/KB6)

GM309465Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12065423
  • Service:
  • 3-Way M Metri-Pack 150 Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A WH 5915 Driver Seat Fan Speed Control
B BK 650 Ground
C RD/WH 2540 Battery Positive Voltage
Heated Seat Element - Driver Back Connector End View (w/KA1)

GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059254
  • Service:
  • 2-Way M Metri-Pack 150 Series (GN)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PK 2077 Driver Heated Seat Element Supply Voltage
B BK 550 Ground
Heated Seat Element - Driver Cushion Connector End View (w/KA1)

GM288378Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047786
  • Service:
  • 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PK 2077 Driver Heated Seat Element Supply Voltage
B BK 550 Ground
C YE/BK 2079 Driver Heated Seat NTC Signal
D YE 2080 Driver Heated Seat NTC Low Reference
Heated Seat Element - LR Back Connector End View (w/KA6)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047663
  • Service:
  • 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN 9174 LR Heated Seat Supply Voltage
B L-GN 9175 LR Heated Seat Element Control
Heated Seat Element - LR Cushion Connector End View (w/KA6)

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047786
  • Service: 12085536
  • 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN 9174 LR Heated Seat Element Supply Voltage
B L-GN 9175 LR Heated Seat Element Control
C L-BU 9171 LR Heated Seat Temperature Sensor Signal
D D-BU 9170 LR Heated Seat Temperature Sensor Low Reference
Heated Seat Element - Passenger Back Connector End View (w/KA1)

GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059254
  • Service:
  • 2-Way M Metri-Pack 150 Series (GN)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU 2479 Passenger Heated Seat Element Supply Voltage
B BK 650 Ground
Heated Seat Element - Passenger Cushion Connector End View (w/KA1)

GM288378Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047786
  • Service:
  • 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU 2479 Passenger Heated Seat Element Supply Voltage
B BK 650 Ground
C GY 2434 Passenger Heated Seat NTC Signal
D PK 2435 Passenger Heated Seat NTC Low Reference
Heated Seat Element - RR Back Connector End View (w/KA6)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12048457
  • Service:
  • 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A GY 9173 RR Heated Seat Element Supply Voltage
B BN 9172 RR Heated Seat Element Control
Heated Seat Element - RR Cushion Connector End View (w/KA6)

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047786
  • Service: 12085536
  • 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A GY 9173 RR Heated Seat Element Supply Voltage
B BN 9172 RR Heated Seat Element Control
C OG 9176 RR Heated Seat Temperature Sensor Signal
D PK 9177 RR Heated Seat Temperature Sensor Low Reference
Heated Seat Module - Rear C1 Connector End View (KA6)

GM1455870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 39-01-2120
  • Service:
  • 12-Way F Mini Fit Molex (CL)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 PK 9177 RR Heated Seat Temperature Sensor Low Reference
3 - - Not Used
4 L-BU 9171 LR Heated Seat Temperature Sensor Signal
5 D-GN 9174 LR Heated Seat Element Supply Voltage
6 GY 9173 RR Heated Seat Element Supply Voltage
7-8 - - Not Used
9 OG 9176 RR Heated Seat Temperature Sensor Signal
10 - - Not Used
11 L-GN 9175 LR Heated Seat Element Control
12 BN 9172 RR Heated Seat Element Control
Heated Seat Module - Rear C2 Connector End View (KA6)

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052856
  • Service:
  • 4-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BK 850 Ground
B YE 182 Rear Heated Seat Switch Supply Voltage
C BN 341 Ignition 3 Voltage
D - - Not Used

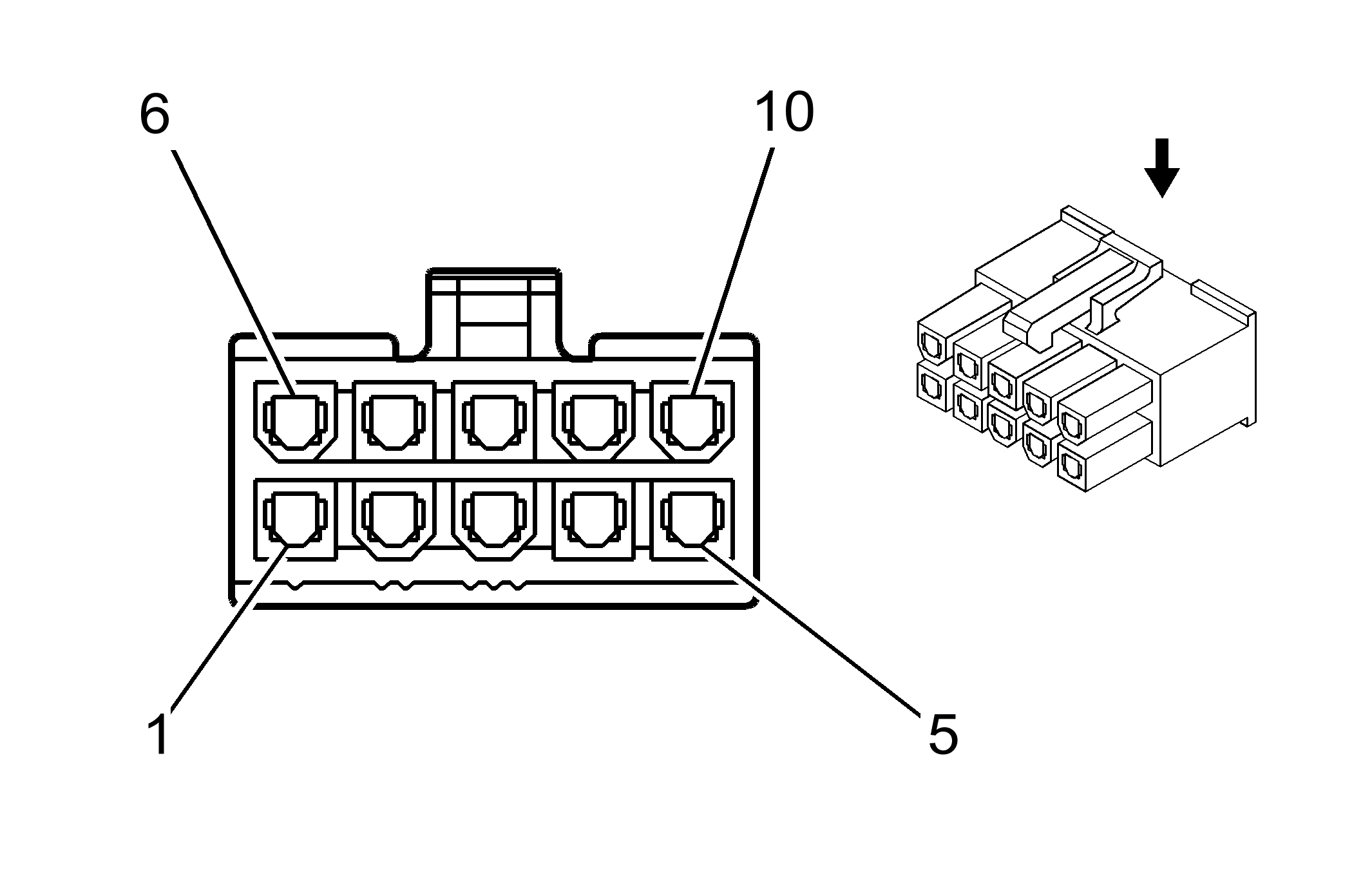

Heated Seat Module - Rear C3 Connector End View (KA6)

GM1455867Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 39-01-2100
  • Service:
  • 10-Way F Mini Fit Molex (CL)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 TN/WH 6585 LR Medium Temperature Indicator
4 BN 1634 RR Heated Seat Switch Signal
5 BN/WH 1637 LR Heated Seat Switch Signal
6 PK 1636 RR Low Temperature Indicator
7 L-BU/WH 6586 RR Medium Temperature Indicator
8 BK/WH 1635 RR High Temperature Indicator
9 BK/WH 1638 LR High Temperature Signal
10 PK 1631 LR Low Temperature Indicator
Lumbar Adjuster Switch - Driver Connector End View (w/AL2)

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052854
  • Service: 88953358
  • 7-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE/BK 1067 Driver Seat Lumbar Down Switch Signal
B D-BU 1064 Driver Seat Lumbar Rearward Switch Signal
C YE 1065 Driver Seat Lumbar Forward Switch Signal
D-E - - Not Used
F WH 1066 Driver Seat Lumbar Up Switch Signal
G RD/WH 2840 Battery Positive Voltage
Lumbar Adjuster Switch - Passenger Connector End View (w/AL2)

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052854
  • Service: 88953358
  • 7-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A OG 792 Passenger Power Seat Lumbar Motor Down Control
B D-BU 211 Passenger Power Seat Lumbar Motor Forward Control
C WH 210 Passenger Power Seat Lumbar Motor Rearward Control
D - - Not Used
E BK 650 Ground
F PK 793 Passenger Power Seat Lumbar Motor Up Control
G RD/WH 3740 Battery Positive Voltage
Lumbar Motor Assembly - Driver - C1 Connector End View (w/AL2)

GM39667Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129136
  • Service:
  • 4-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A TN 768 Memory Mirror Position Sensor 5-Volt Reference
B L-GN 284 Driver Power Seat Horizontal Motor Rearward/Lumbar Down Control
C D-BU 611 Driver Power Seat Lumbar Motor Forward Control
D PK 610 Driver Power Seat Lumbar Motor Forward Control
Lumbar Motor Assembly - Driver - C2 Connector End View (w/AL2)

GM40392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047785
  • Service:
  • 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A TN 782 Memory Seat/Mirror Sensor Low Reference
B TN 1062 Driver Memory Seat Lumbar Vertical Position Sensor Signal
C GY 788 Memory Mirror Position Sensor 5-Volt Reference
D YE 1063 Driver Memory Seat Lumbar Horizontal Position Sensor Signal
Lumbar Motor Assembly - Passenger Connector End View (w/AL2)

GM39667Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129136
  • Service:
  • 4-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PK 793 Passenger Power Seat Lumbar Motor Up Control
B OG 792 Passenger Power Seat Lumbar Motor Down Control
C D-BU 211 Passenger Power Seat Lumbar Motor Forward Control
D WH 210 Passenger Power Seat Lumbar Motor Rearward Control
Memory Seat Module (MSM) - C1 Connector End View (A45)

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064749
  • Service:
  • 2-Way F Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BK 550 Ground
B RD/WH 3740 Battery Positive Voltage
Memory Seat Module (MSM) - C2 Connector End View (A45)

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129432
  • Service: 12129432
  • 16-Way F Metri-Pack 280 Series, ACT (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN 286 Driver Power Seat Front Vertical Motor Up Control
B YE 282 Driver Power Seat Rear Vertical Motor Up Control
C L-BU 283 Driver Power Seat Rear Vertical Motor Down Control
D TN 768 Driver Power Seat Lumbar Motor Up Control (AL2)
E PK 2111 Steering Column Tilt Motor Up Control
F D-BU 611 Driver Power Seat Lumbar Motor Forward Control (AL2)
G L-GN 276 Driver Power Seat Recline Motor Forward Control
H L-BU 277 Driver Power Seat Recline Motor Rearward Control
J TN 285 Driver Power Seat Horizontal Motor Forward Control
K L-GN 284 Driver Power Seat Horizontal Motor Rearward Control
L-M - - Not Used
N PK 610 Driver Power Seat Lumbar Motor Rearward Control (AL2)
P - - Not Used
R OG 2098 Steering Column Telescope Motor Forward
S D-BU 287 Driver Power Seat Front Vertical Motor Down Control
Memory Seat Module (MSM) - C3 Connector End View (A45)

GM1420730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174046-2
  • Service:
  • 16-Way F 40 Series Multi Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 TN 568 Memory Seat Rear Vertical Motor Position Sensor Signal
2 BN/WH 557 Memory Seat Front Vertical Motor Position Sensor Signal
3 YE 1063 Memory Seat Lumbar Horizontal Position Sensor Signal (AL2)
4 WH/BK 570 Driver Memory Seat Recline Motor Position Sensor Signal
5 - - Not Used
6 GY 788 Memory Mirror Position Sensor 5-Volt Reference
7 RD/WH 2840 Battery Positive Voltage
8 - - Not Used
9 OG 2153 Steering Column Telescope Motor Signal
10 TN 1062 Memory Seat Lumbar Vertical Position Sensor Signal (AL2)
11 D-GN 569 Memory Seat Horizontal Motor Position Sensor Signal
12 - - Not Used
13 OG/WH 2154 Steering Column Tilt Motor Signal
14 TN 782 Memory Seat/Mirror Sensor Low Reference
15 BK/WH 551 Ground
16 - - Not Used
Memory Seat Module (MSM) - C4 Connector End View (A45)

GM1551686Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174047-2
  • Service:
  • 20-Way M Hinged Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 WH 790 PWM Serial Data
2 YE 1519 Power Seat Rear Vertical Up Switch Signal
3 L-BU 1521 Power Seat Rear Vertical Down Switch Signal
4 TN 1522 Power Seat Horizontal Forward Switch Signal
5 L-GN 1523 Power Seat Horizontal Rearward Switch Signal
6 L-BU 277 Driver Power Seat Recline Motor Rearward Control
7 L-GN 276 Driver Power Seat Recline Motor Forward Control
8 D-BU 1064 Driver Seat Lumbar Rearward Switch Signal
9 YE 1065 Driver Seat Lumbar Forward Switch Signal
10 YE/BK 1067 Driver Seat Lumbar Down Switch Signal
11 GY 791 PWM Serial Data
12-17 - - Not Used
18 D-GN 1518 Power Seat Front Vertical Up Switch Signal
19 D-BU 1520 Power Seat Front Vertical Down Switch Signal
20 WH 1066 Driver Seat Lumbar Up Switch Signal
Seat Adjuster Motor Assembly - Driver C1 Connector End View (w/A45)

GM1519696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-6466-40
  • Service:
  • 6-Way F YESC 2.8MM (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 282 Driver Power Seat Rear Vertical Motor Up Control
2 D-GN 286 Driver Power Seat Front Vertical Motor Up Control
3 TN 285 Driver Power Seat Horizontal Motor Forward Control
4 L-BU 283 Driver Power Seat Rear Vertical Motor Down Control
5 D-BU 287 Driver Power Seat Front Vertical Motor Down Control
6 L-GN 284 Driver Power Seat Horizontal Motor Rearward Control
Seat Adjuster Motor Assembly - Driver C2 Connector End View (w/A45)

GM1283897Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5532-40
  • Service:
  • 6-Way F 1.5 Series Yazaki (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN/WH 557 Memory Seat front Vertical Motor Position Sensor Signal
2 TN 782 Memory Seat Sensor Low Reference
3 D-GN 569 Memory Seat Horizontal Motor Position Sensor Signal
4 - - Not Used
5 TN 568 Memory Seat Rear Vertical Motor Position Sensor Signal
6 GY 788 5-Volt Reference
Seat Adjuster Motor Assembly - Driver Connector End View (w/o A45)

GM1519696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-6466-40
  • Service:
  • 6-Way F YESC 2.8MM (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 282 Driver Power Seat Rear Vertical Motor Up Control
2 D-GN 286 Driver Power Seat Front Vertical Motor Up Control
3 TN 285 Driver Power Seat Horizontal Motor Forward Control
4 L-BU 283 Driver Power Seat Rear Vertical Motor Down Control
5 D-BU 287 Driver Power Seat Front Vertical Motor Down Control
6 L-GN 284 Driver Power Seat Horizontal Motor Rearward Control
Seat Adjuster Motor Assembly - Passenger Connector End View

GM1519696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-6466-40
  • Service:
  • 6-Way F YESC 2.8 MM (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 288 Passenger Power Seat Rear Vertical Motor Up Control
2 D-GN 297 Passenger Power Seat Front Vertical Motor Up Control
3 TN 296 Passenger Power Seat Horizontal Motor Forward Control
4 L-BU 289 Passenger Power Seat Rear Vertical Motor Down Control
5 D-BU 298 Passenger Power Seat Front Vertical Motor Down Control
6 L-GN 290 Passenger Power Seat Horizontal Motor Rearward Control
Seat Adjuster Switch - Driver Connector End View (w/A45)

GM623046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326931
  • Service: 15306309
  • 10-Way F GT 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-BU 277 Driver Power Seat Recline Motor Rearward Control
B - - Not Used
C L-GN 1523 Power Seat Horizontal Rearward Switch Signal
D TN 1522 Power Seat Horizontal Forward Switch Signal
E RD/WH 2840 Battery Positive Voltage
F L-GN 276 Driver Power Seat Recline Motor Forward Control
G L-BU 1521 Power Seat Rear Vertical Down Switch Signal
H YE 1519 Power Seat Rear Vertical Up Switch Signal
J D-BU 1520 Power Seat Front Vertical Down Switch Signal
K D-GN 1518 Power Seat Front Vertical Up Switch Signal
Seat Adjuster Switch - Driver Connector End View (w/o A45)

GM623046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326931
  • Service: 15306309
  • 10-Way F GT 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-BU 277 Driver Power Seat Recline Motor Rearward Control
B BK 550 Ground
C L-GN 284 Driver Power Seat Horizontal Motor Rearward Control
D TN 285 Driver Power Seat Horizontal Motor Forward Control
E RD/WH 2840 Battery Positive Voltage
F L-GN 276 Driver Power Seat Recline Motor Forward Control
G L-BU 283 Driver Power Seat Rear Vertical Motor Down Control
H YE 282 Driver Power Seat Rear Vertical Motor Up Control
J D-BU 287 Driver Power Seat Front Vertical Motor Down Control
K D-GN 286 Driver Power Seat Front Vertical Motor Up Control
Seat Adjuster Switch - Passenger Connector End View

GM623046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326931
  • Service: 15306309
  • 10-Way F GT 280 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A RD/WH 3740 Battery Positive Voltage
B L-GN 290 Passenger Power Seat Horizontal Motor Rearward Control
C TN 296 Passenger Power Seat Horizontal Motor Forward Control
D BK 650 Ground
E D-BU 77 Passenger Power Seat Recline Motor Rearward
F D-BU 298 Passenger Power Seat Front Vertical Motor Down Control
G D-GN 297 Passenger Power Seat Front Vertical Motor Up Control
H L-BU 289 Passenger Power Seat Rear Vertical Motor Down Control
J YE 288 Passenger Power Seat Rear Vertical Motor Up Control
K D-GN 76 Passenger Power Seat Recline Motor Forward
Seat Recline Motor - Driver Connector End View (w/o A45)

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129081
  • Service: 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-GN 276 Driver Power Seat Recline Motor Forward Control
B L-BU 277 Driver Power Seat Recline Motor Rearward Control
Seat Recline Motor Assembly - Driver - C1 Connector End View (w/A45)

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129081
  • Service: 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-GN 276 Driver Power Seat Recline Motor Forward Control
B L-BU 277 Driver Power Seat Recline Motor Rearward Control
Seat Recline Motor - Passenger Connector End View

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129081
  • Service: 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU 77 Passenger Power Seat Recline Motor Rearward
B D-GN 76 Passenger Power Seat Recline Motor Forward
Seat Recline Position Sensor- Driver - C2 Connector End View (w/A45)

GM401671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 39-01-4030
  • Service:
  • 3-Way F Mini Fit (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 TN 782 Memory Seat/Mirror Sensor Low Reference
2 WH/BK 570 Driver Seat Recline Motor Position Sensor Signal
3 GY 788 Memory Mirror Position Sensor 5-Volt Reference
scientia non olet · About Mike's Workshop Manuals
