Driver Information System Schematics

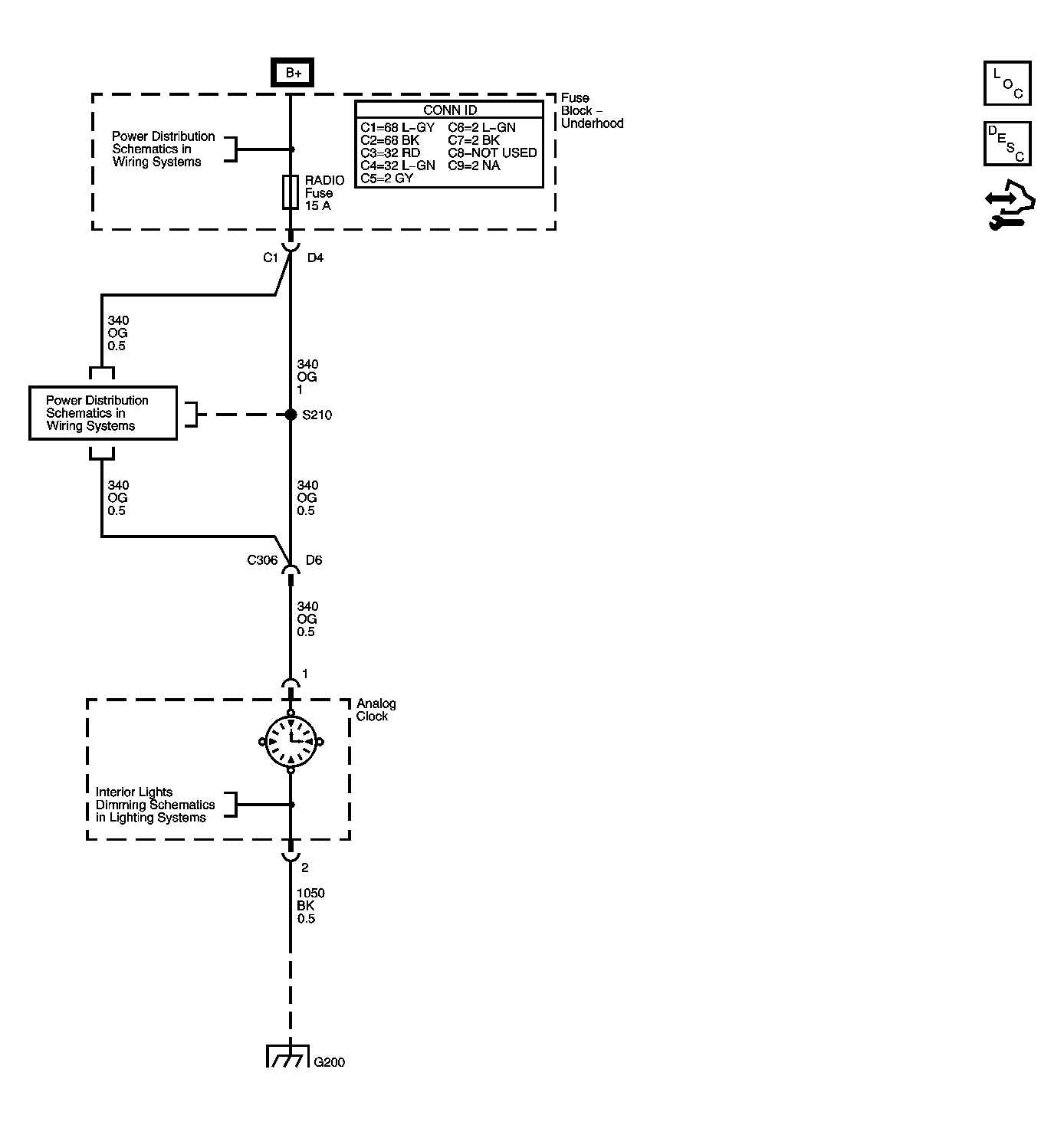

Fig 1: Driver Information System Schematics

GM1464175

Courtesy of GENERAL MOTORS CORP.
