Cruise Control Schematics

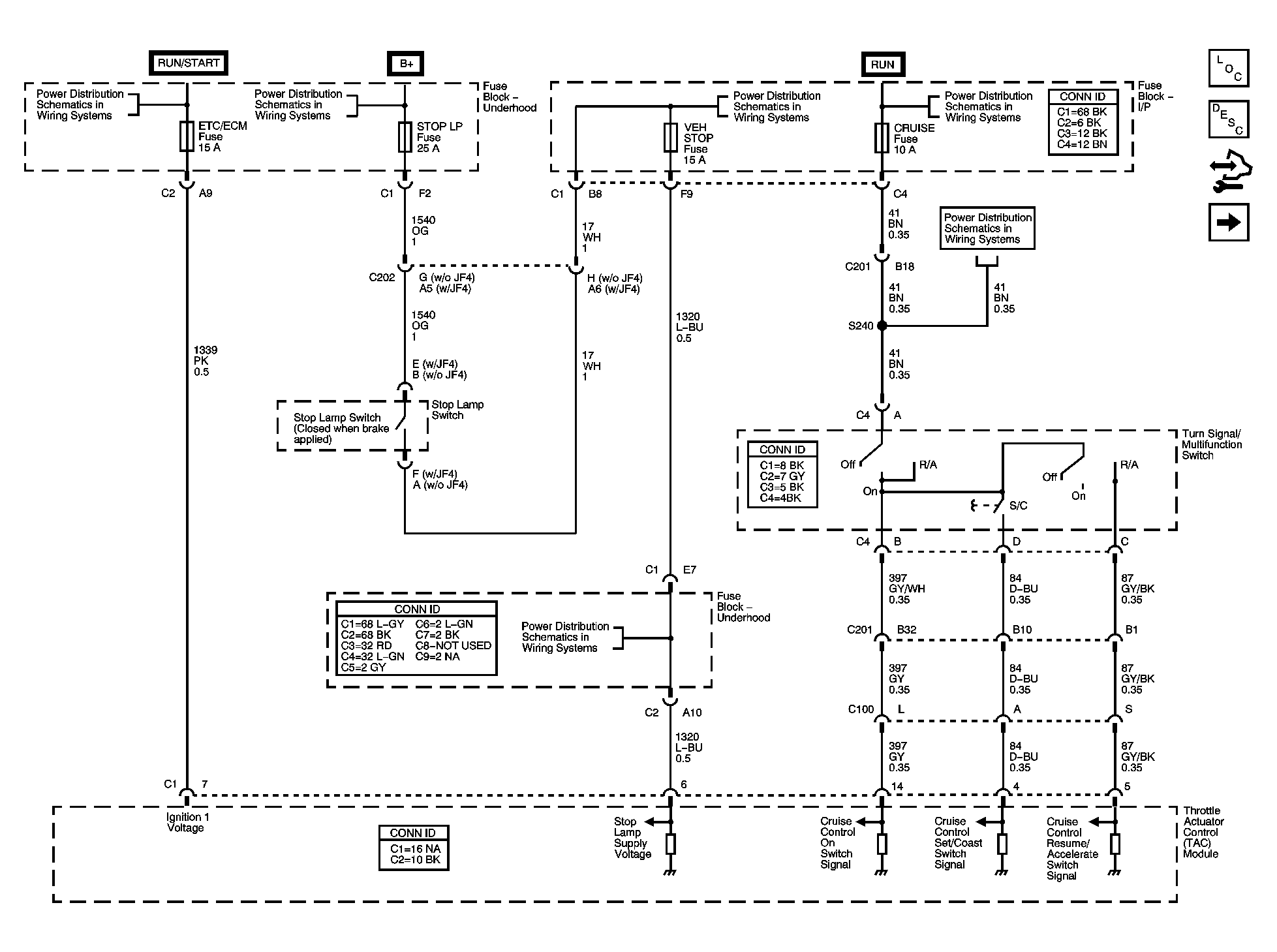

Fig 1: Power, Cruise Control Switch, and Stop Lamp Feed Schematics
GM1464935Courtesy of GENERAL MOTORS CORP.

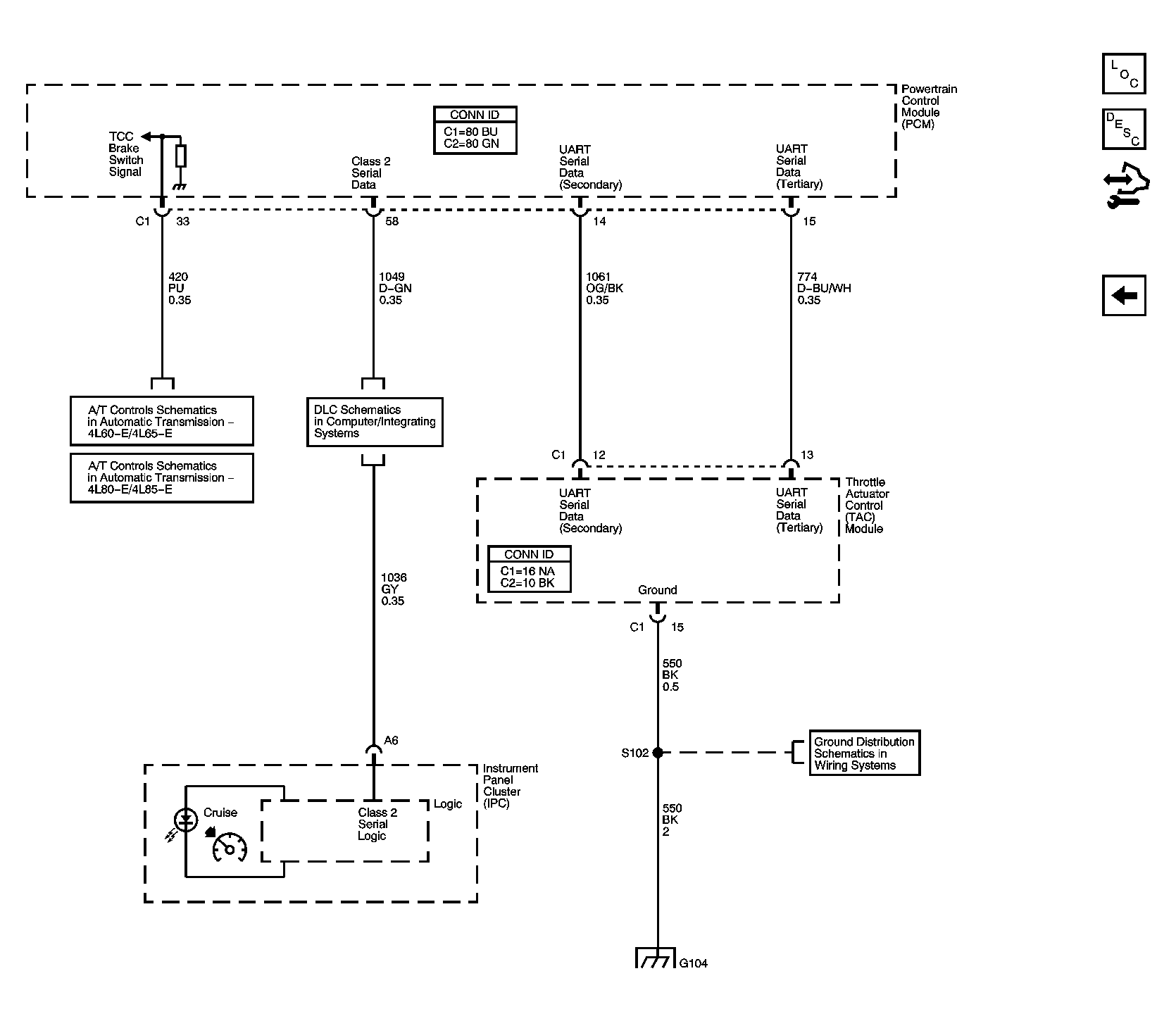

Fig 2: Ground and Class 2 Serial Data Schematics
GM1464940Courtesy of GENERAL MOTORS CORP.
