Installation Procedure

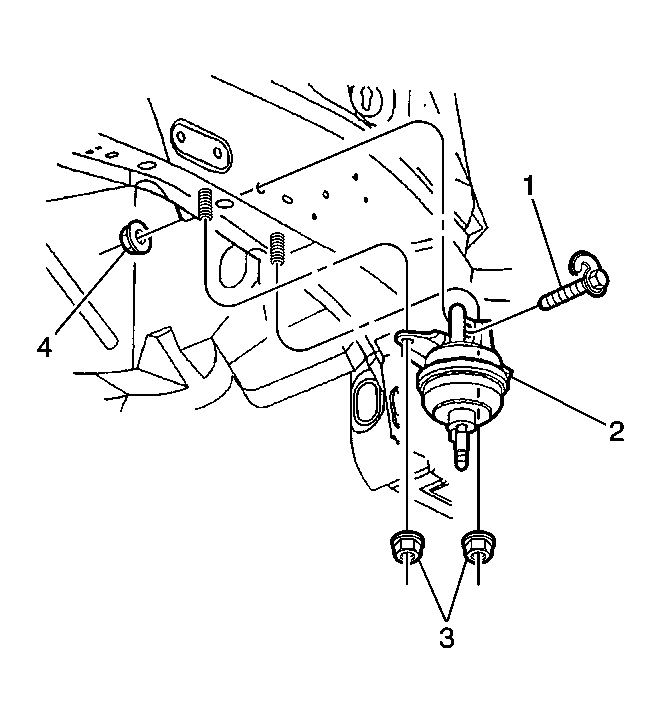

    Fig 1: View Of Transmission Mount, Bolt & Nuts
    GM154972Courtesy of GENERAL MOTORS CORP.
  1. Install the mount (2).
  2. Install the mount attaching bolt (1) and nut (4) to the frame.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 nuts (3) securing the mount to the frame.

    Tighten:  Tighten the nuts to 70 N.m (52 lb. ft.).

  4. Raise the engine and transmission assembly into position.
    5. Fig 2: View Of Transmission Mount, Bracket & Nut
    GM521892Courtesy of GENERAL MOTORS CORP.
  5. Install the nut (1) to the mount and mount bracket.

    Tighten:  Tighten the mount nut to 75 N.m (55 lb. ft.).

  6. Remove the engine assembly support jack.
  7. Lower the vehicle.
