Installation Procedure

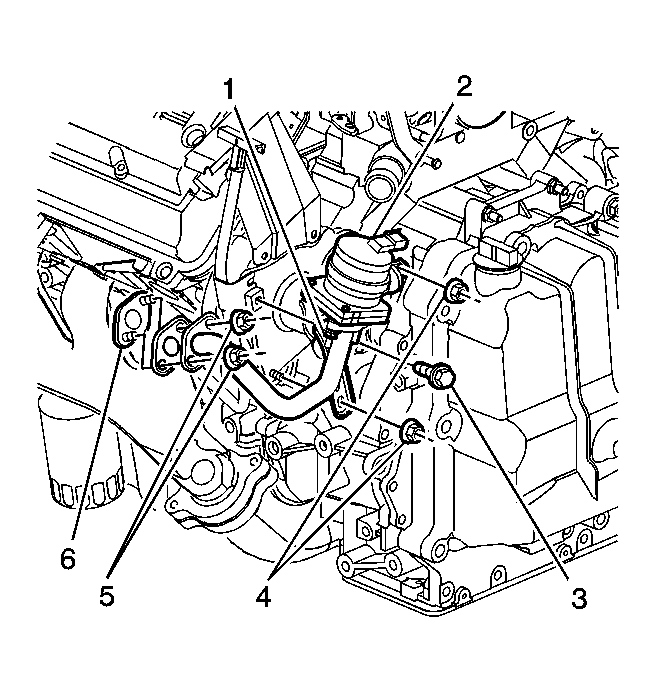

    Fig 1: View Of AIR Shut-Off Valve & Nuts
    GM1212011Courtesy of GENERAL MOTORS CORP.
  1. Position the secondary air injection (AIR) shut-off valve (2) with a new outlet pipe gasket to the outlet pipe and bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 nuts (1) securing the AIR shut-off valve (2) to the outlet pipe and bracket.

    Tighten:  Tighten the nuts to 9 N.m (80 lb. in.).

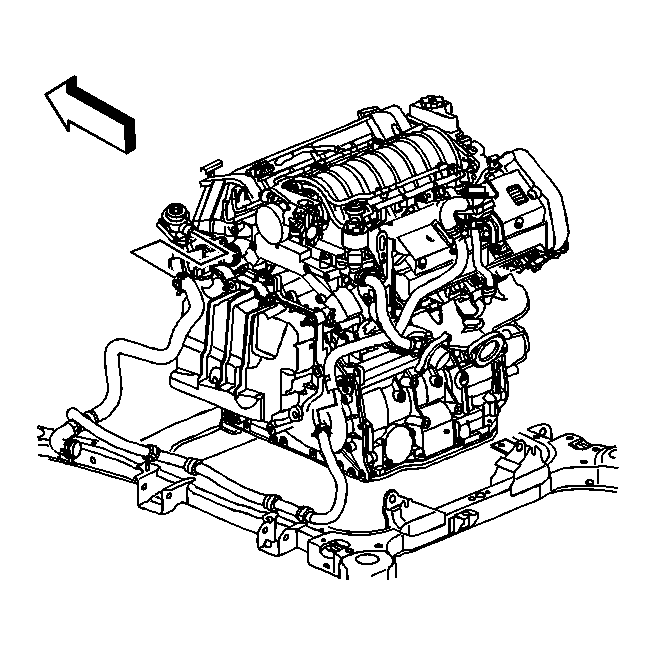

    3. Fig 2: View Of Bank 2 Intermediate Pipe/Hose
    GM784721Courtesy of GENERAL MOTORS CORP.
  3. Connect the intermediate hose to the AIR shut-off valve.

    Position the pinch clamp securing the intermediate hose to the AIR shut-off valve.

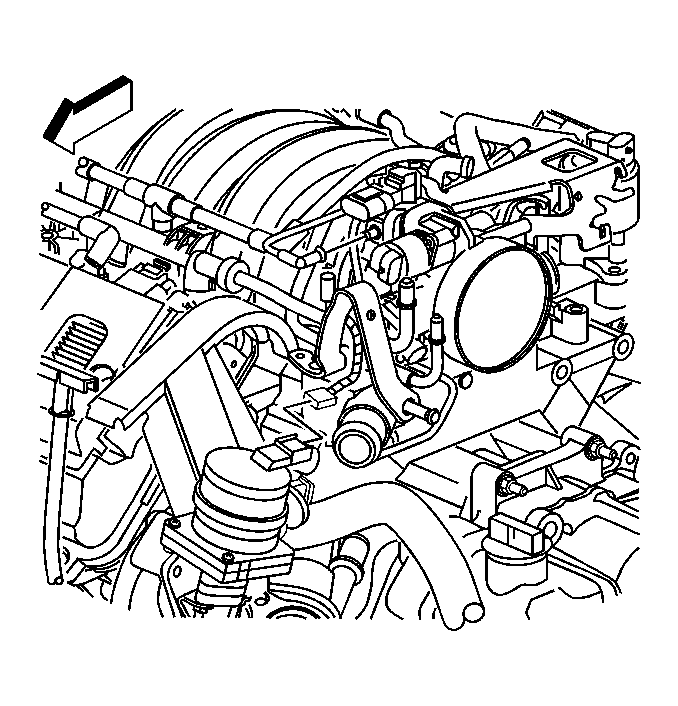

    4. Fig 3: View Of AIR Shut-Off Valve & Electrical Connector - Bank 2
    GM1212010Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the AIR shut-off valve.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
