Installation Procedure

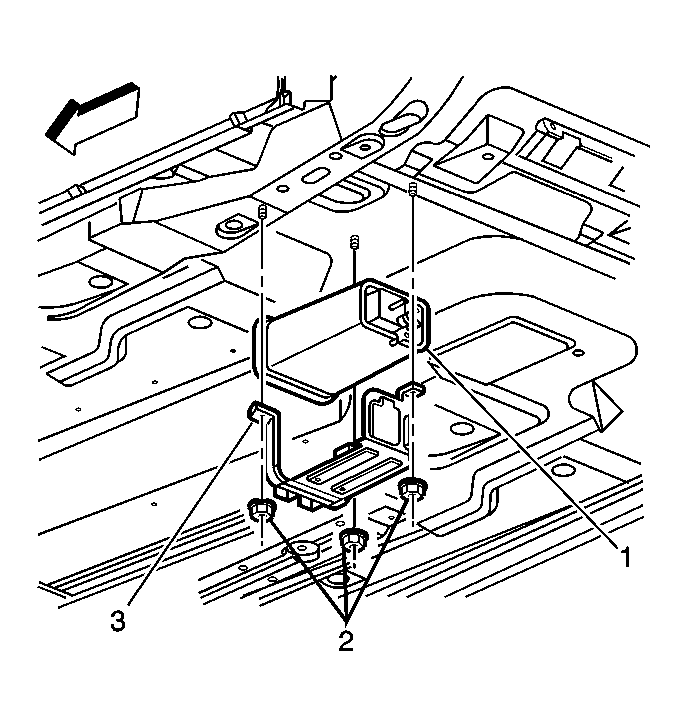

    Fig 1: Removing/Installing Evaporative Emission (EVAP) Canister
    GM104774Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister (1) to the EVAP canister bracket (3) and position on the underbody.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the EVAP canister bracket retaining nuts (2).

    Tighten:  Tighten the nuts to 6 N.m (53 lb. in.).

    3. Fig 2: View Of EVAP Pipe To Canister
    GM104621Courtesy of GENERAL MOTORS CORP.
  3. Connect the EVAP purge pipe (3), vapor pipe (2) and vent hose/pipe (1) to the EVAP canister.
  4. Lower the vehicle.
