Removal Procedure

Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Standard) or Trim Panel Replacement - Side Front Door (WC2, WC8) .
Remove the door module. Refer to Door Control Module Replacement .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the inner window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .

Fig 1: View Of Inside Handle Assembly - Front Door

Courtesy of GENERAL MOTORS CORP.

Remove the inside handle assembly (4) in order to gain access to the window clamp attachment bolts:
1. Carefully pry the front of the assembly (4) rearward.
2. Pull the front of the assembly (4) outward.
3. Slide the assembly (4) forward to remove.
Disconnect the handle rod (3) from the clip guide (2).

CAUTION: Refer to Express Window Down Caution in Cautions and Notices.

Reconnect the power window switch and module.
Raise the window to the full-up position.
Tape the window in place.

CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

Fig 2: View Of Window Regulator Clamps

Courtesy of GENERAL MOTORS CORP.

Loosen the window clamp attachment fasteners four revolutions.
Lower the regulator clamps (2) to the full down position.

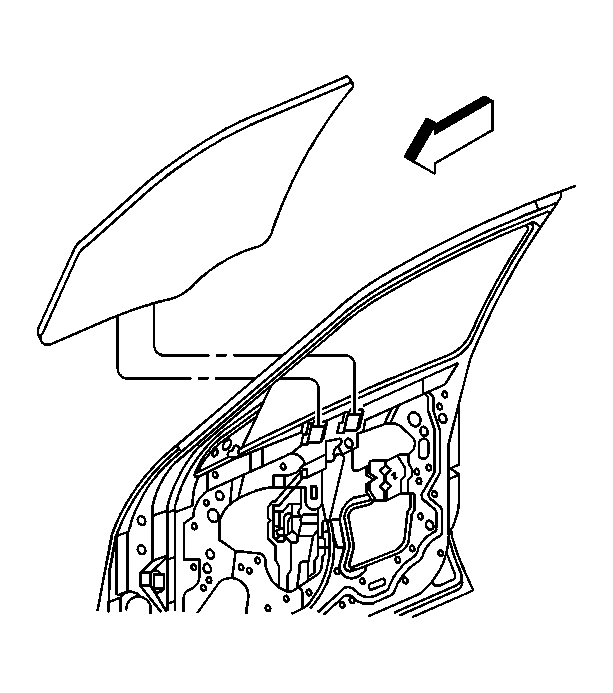

Fig 3: Removing Window From Door - Front Door (Standard Door)

Courtesy of GENERAL MOTORS CORP.

Remove the window from the door in the following order:
1. While supporting the window through the access hole of the inner panel, remove the tape holding the window up.
2. Lower the window slightly.
3. Tilt the window downward at the front.
4. Pull upward on the rear edge of the window.
5. Pull the window up and out of the door from the outer side of the window opening.
