Navigation System Schematics

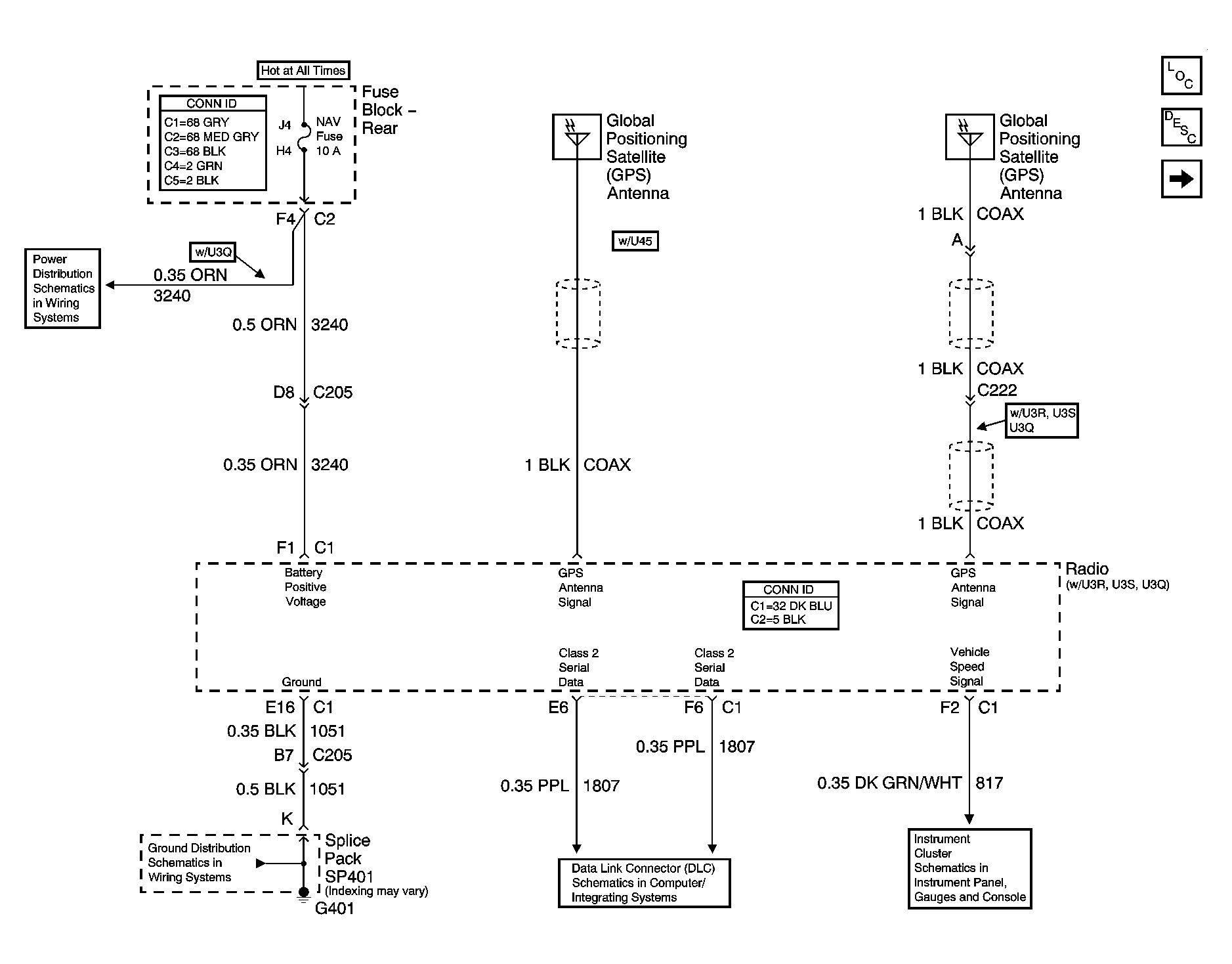

Fig 1: Power, Ground, Components and GPS

Courtesy of GENERAL MOTORS CORP.

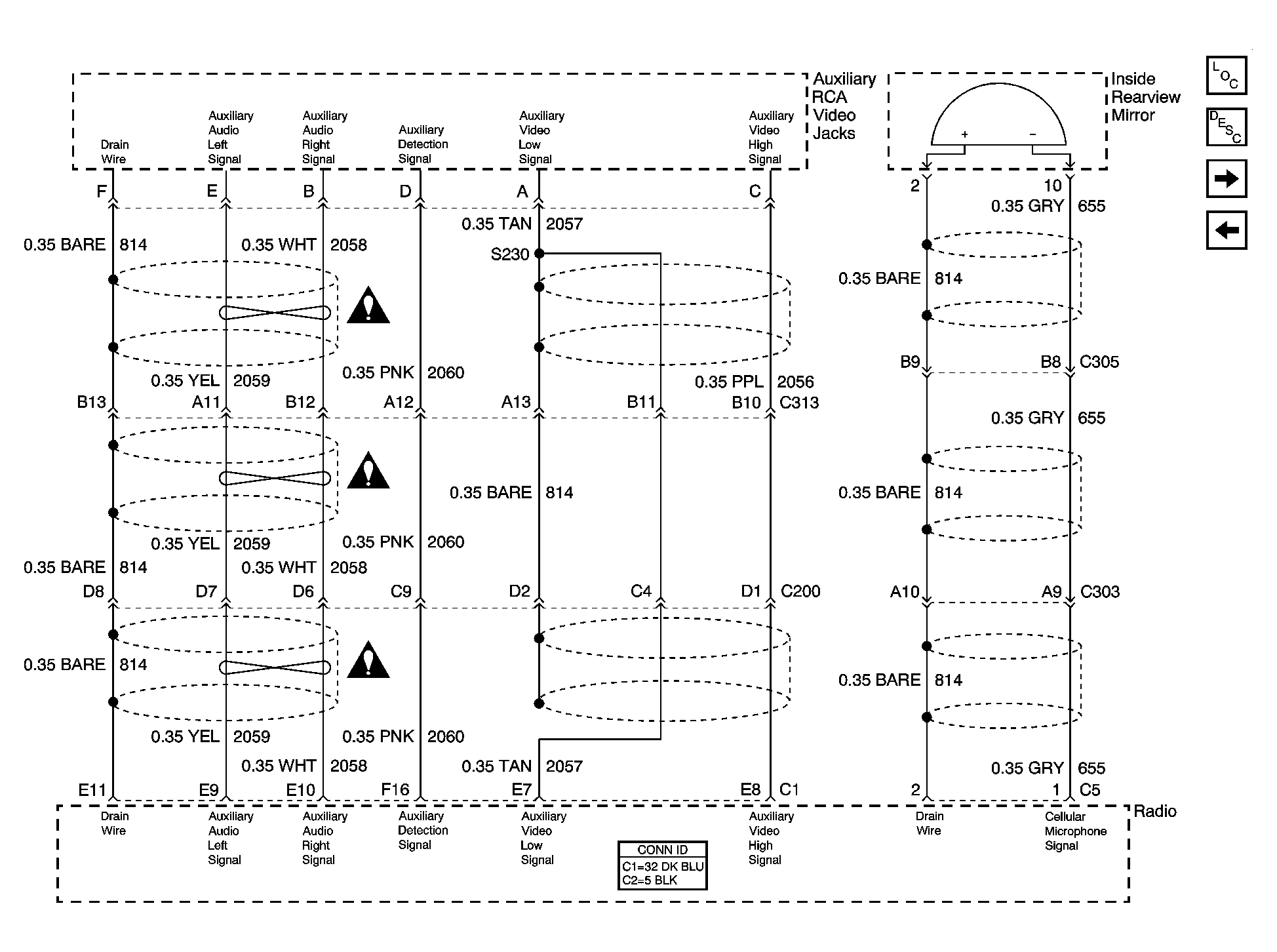

Fig 2: Auxiliary RCA Video Jacks and Export Microphone

Courtesy of GENERAL MOTORS CORP.

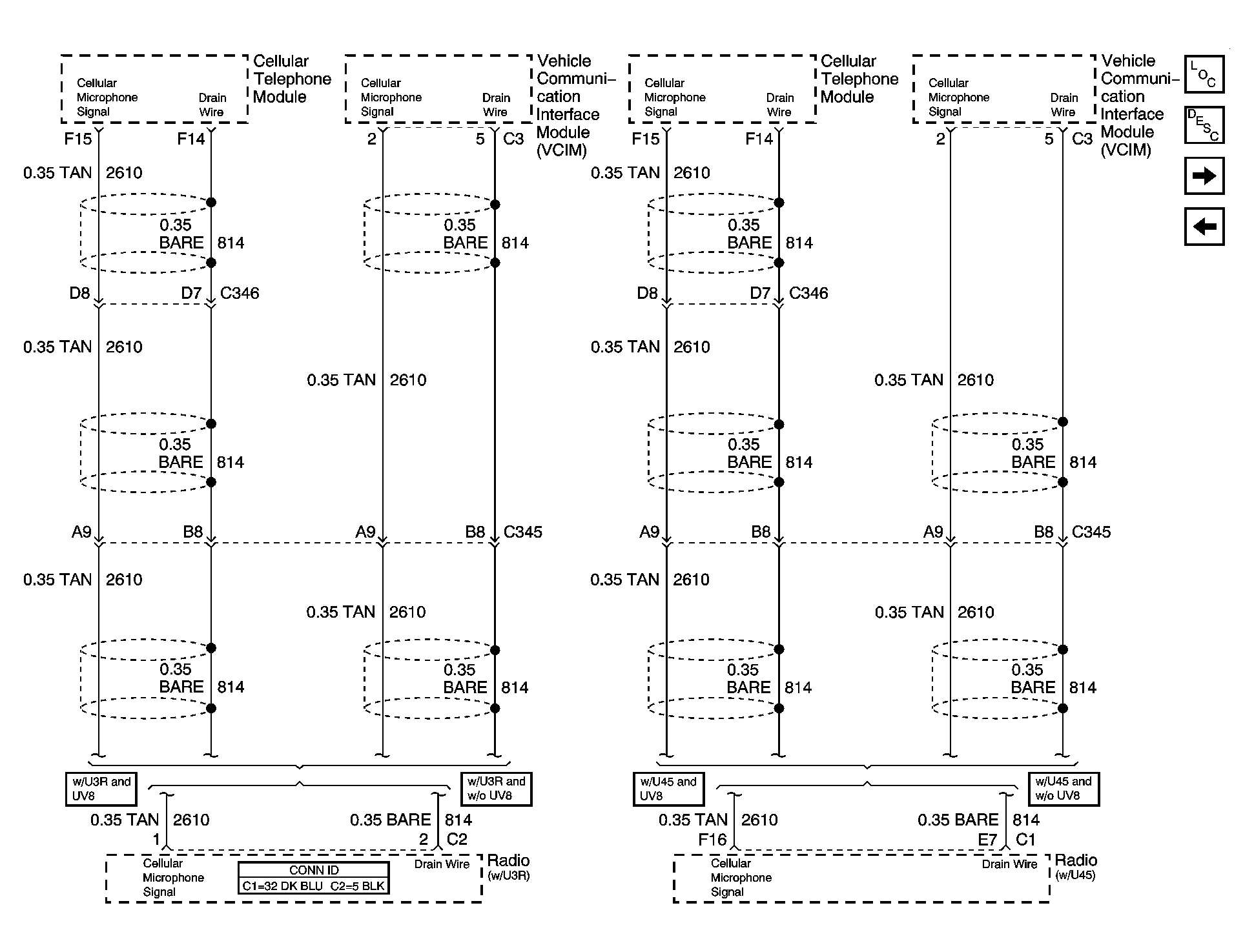

Fig 3: Domestic Microphone

Courtesy of GENERAL MOTORS CORP.

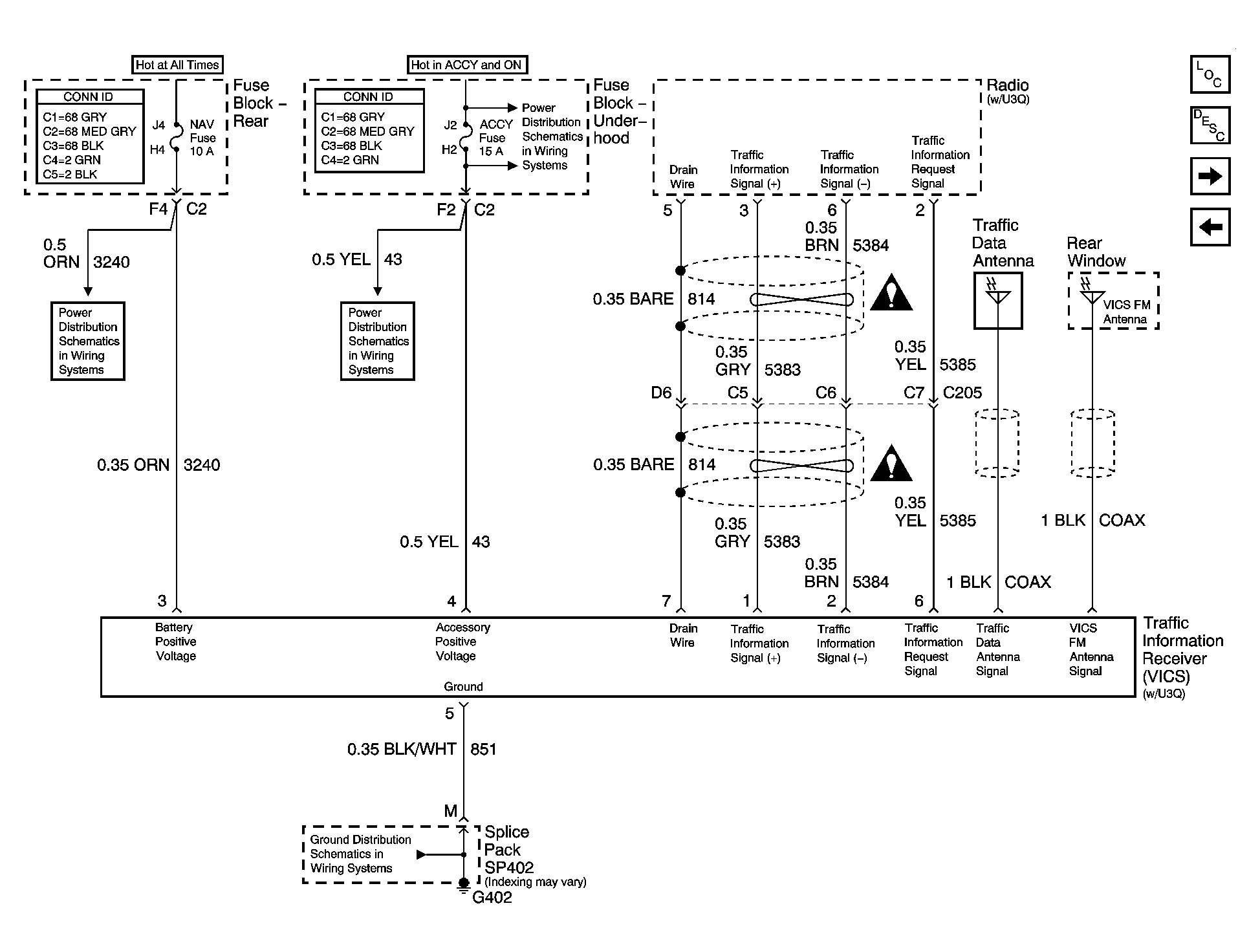

Fig 4: Traffic Information Receiver (VICS)

Courtesy of GENERAL MOTORS CORP.

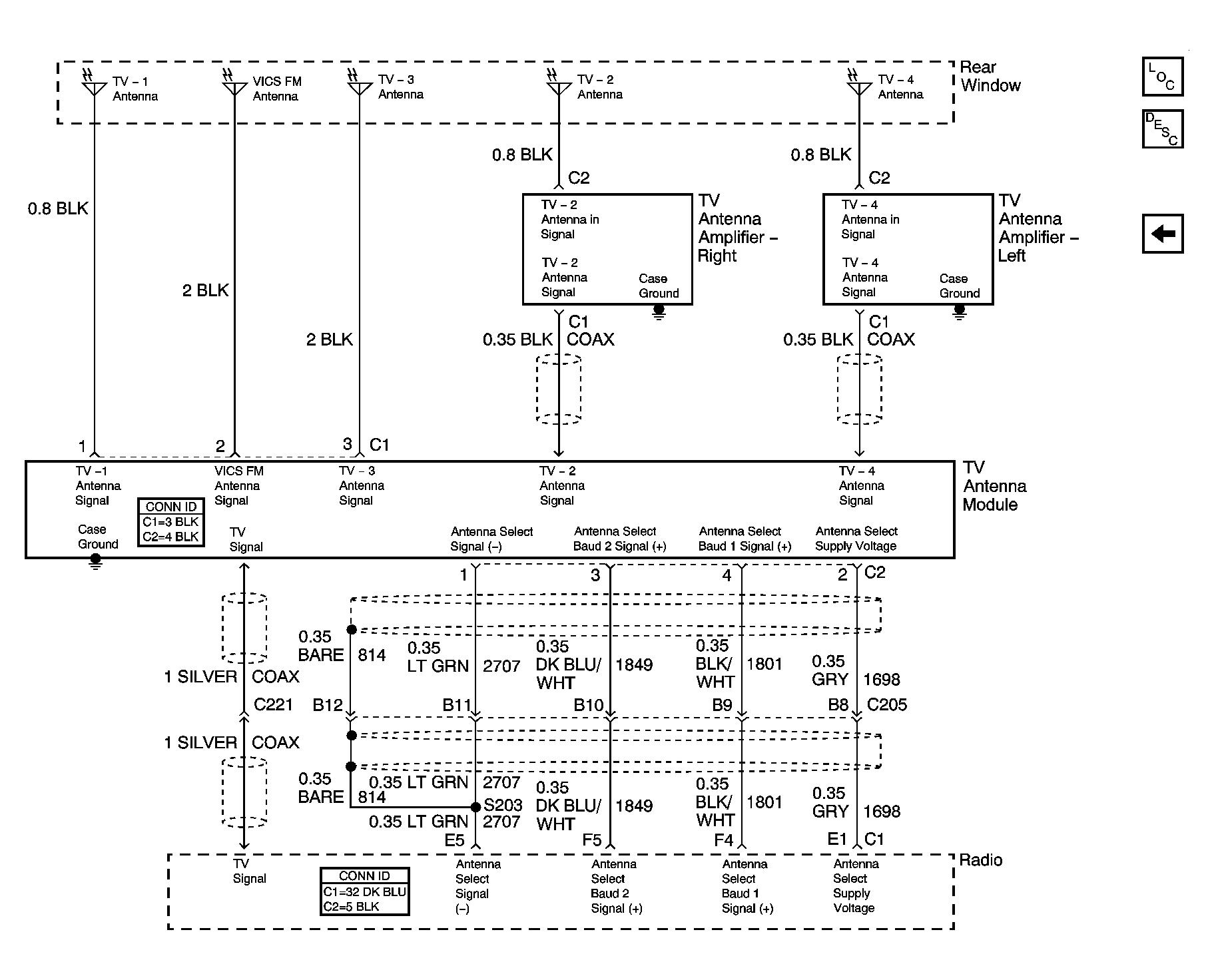

Fig 5: TV Antenna Module

Courtesy of GENERAL MOTORS CORP.
