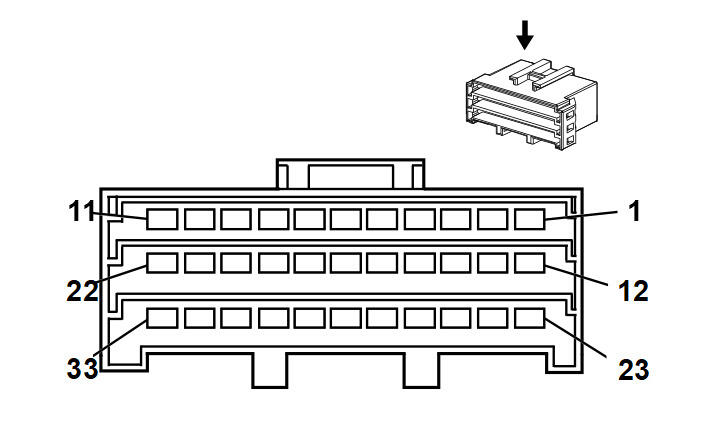

Splice Pack SP200 Connector End View
Splice Pack SP200
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU/WH | 1314 | Left Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65) |
| 2-5 | L-BU/WH | 1314 | Left Turn Signal Indicator Lamp Supply Voltage |
| 6 | L-BU/WH | 1314 | Left Turn Signal Indicator Lamp Supply Voltage (w/o T62/T65) |
| 7 | - | - | Not Used |
| 8-11 | PK | 3 | Ignition 1 Voltage |
| 12-16 | YE | 61 | Low Reference |
| 17-18 | - | - | Not Used |
| 19-22 | D-BU/WH | 1315 | Right Turn Signal Indicator Lamp Supply Voltage |
| 23-26 | PU | 1807 | Class 2 Serial Data |
| 27 | - | - | Not Used |
| 28-30 | PK | 839 | Ignition 1 Voltage (M35/M12/MN6) |
| 31 | TN/WH | 99 | Windshield Washer Fluid Level Signal (CE4) |
| 32-33 | TN/WH | 99 | Windshield Washer Fluid Level Signal |
