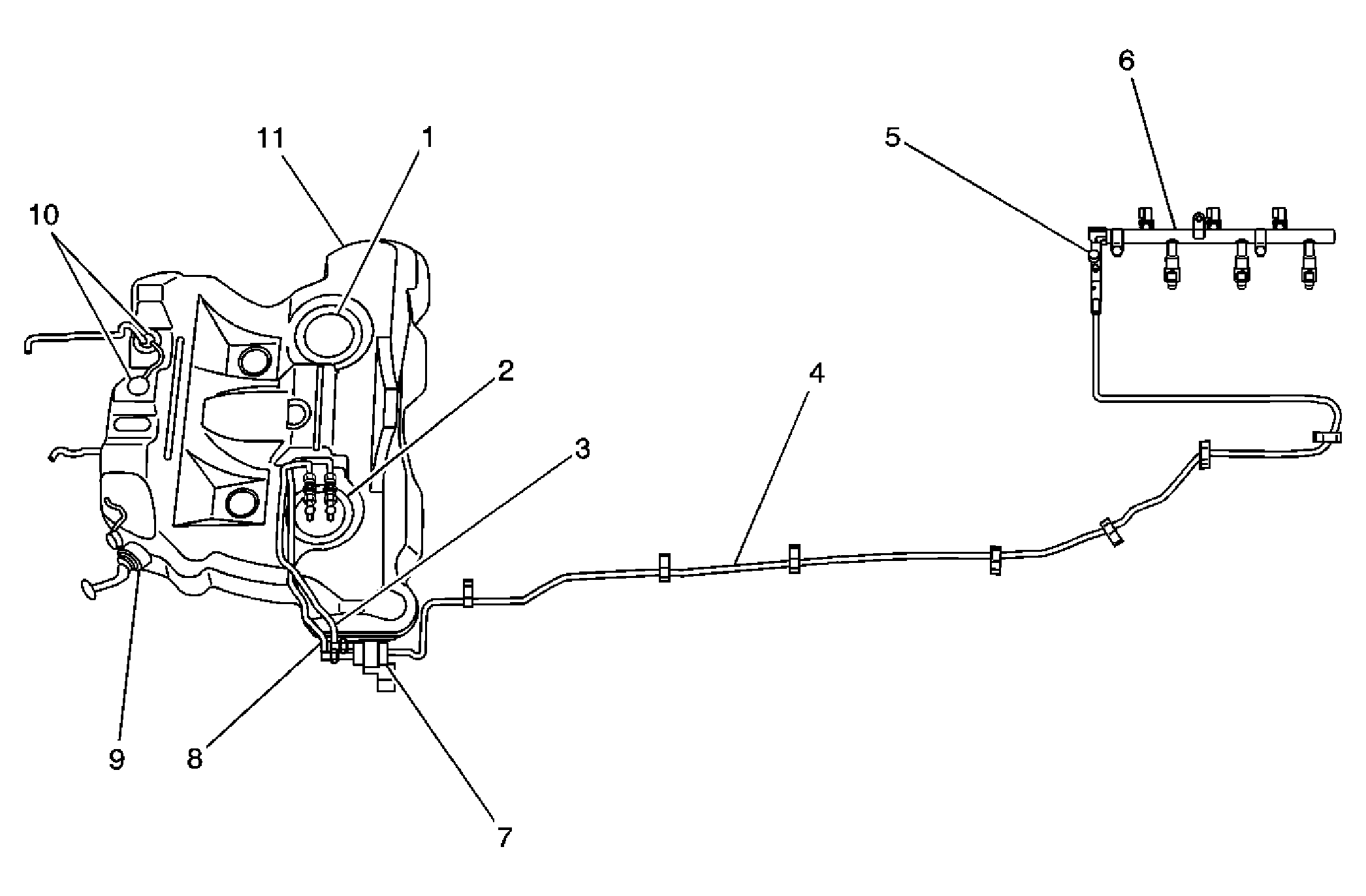

| 1 |
Secondary Fuel Sender Assembly - Left |
| 2 |
Primary Fuel Sender Assembly - Right |
| 3 |
Fuel Feed Hose |
| 4 |
Fuel Feed Pipe |
| 5 |
Fuel Pressure Test Connection |
| 6 |
Fuel Rail and Injectors |
| 7 |
Fuel Filter |
| 8 |
Fuel Return Hose |
| 9 |
Fuel Filler Tube |
| 10 |
Fill Limit Vent Valve (FLVV) |
| 11 |
Fuel Tank |
