Installation Procedure

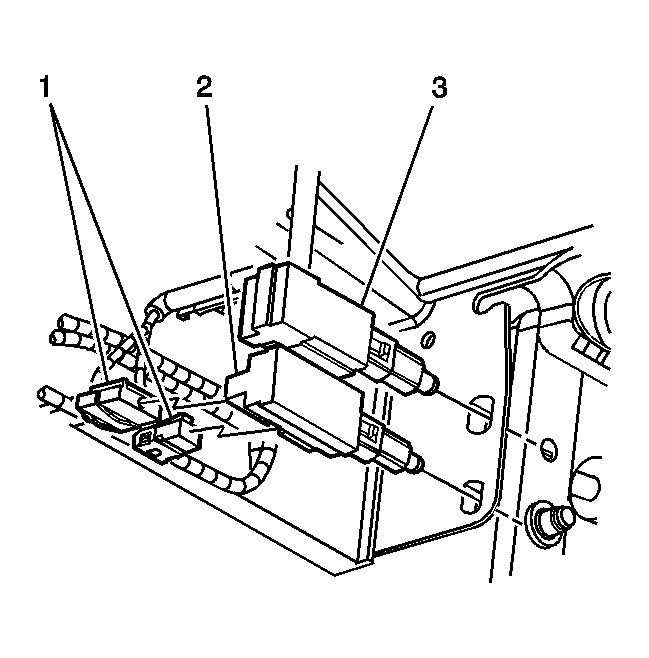

    Fig 1: View Of Torque Converter Clutch/Cruise Release Switch
    GM776637Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the torque converter clutch/cruise release switch (3).
  2. Install the torque converter clutch/cruise release switch (3) into the upper retainer.
  3. Adjust the torque converter clutch/cruise release switch. Refer to Torque Converter Clutch/Cruise Control Release Switch Adjustment .
  4. Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
