Removal Procedure

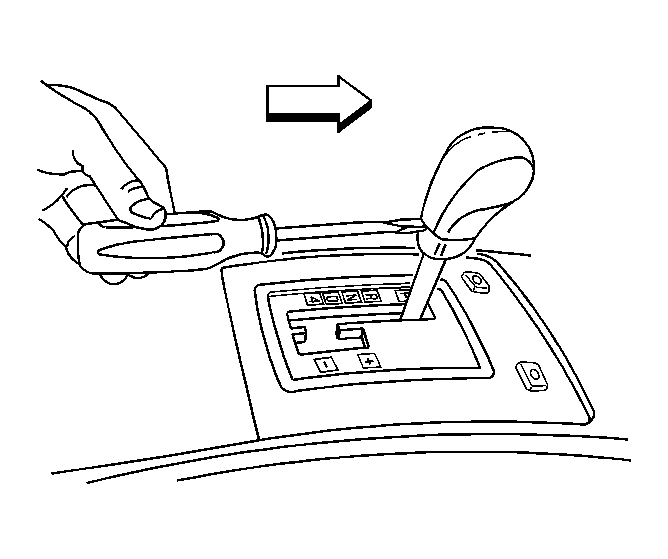

    Fig 1: Releasing Shift Knob Trim Ring
    GM891693Courtesy of GENERAL MOTORS CORP.
  1. Insert a flat bladed tool between the shift knob and the shift knob trim ring.
  2. Rotate the flat bladed tool to release the shift knob trim ring from the shift knob.
    3. Fig 2: Identifying Shift Knob Retaining Screw
    GM891696Courtesy of GENERAL MOTORS CORP.
  3. Loosen the shift knob retaining screw 3 turns.
    4. Fig 3: View Of Shift Knob
    GM891699Courtesy of GENERAL MOTORS CORP.
  4. Remove the shift knob by pulling straight up off the shift control shaft.
