Power Window Schematics

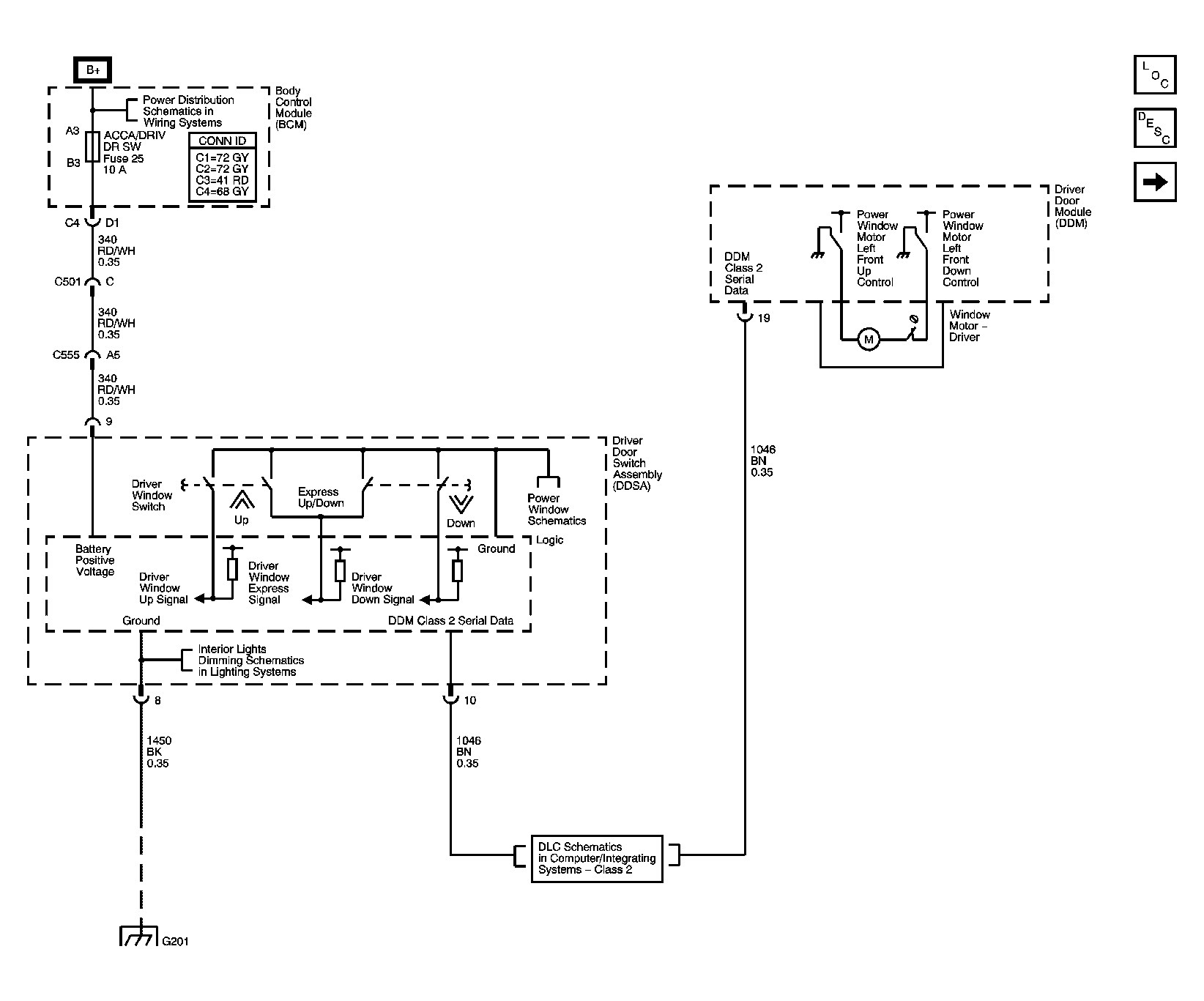

Fig 1: Driver Window Schematic

GM1199361

Courtesy of GENERAL MOTORS CORP.

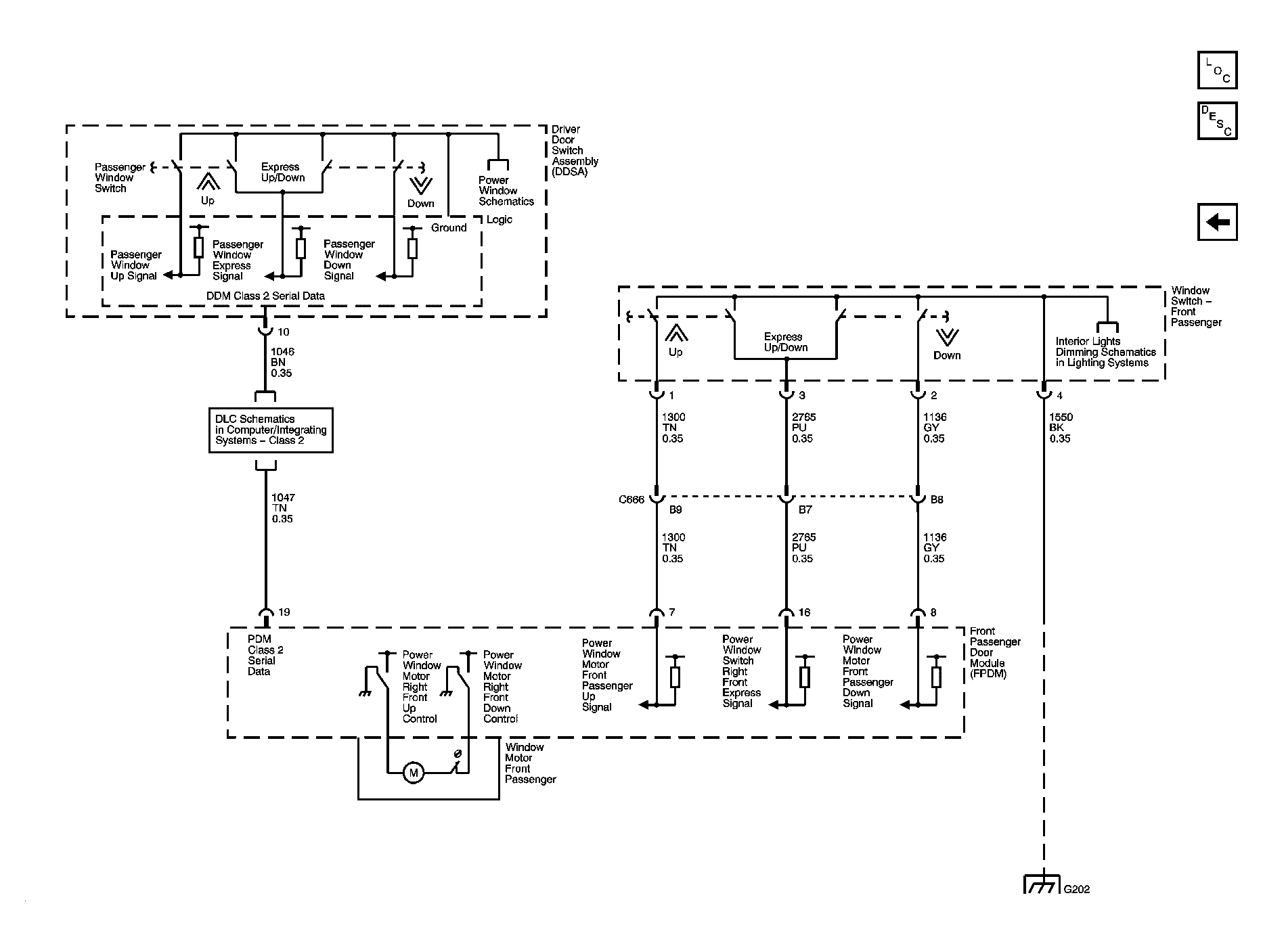

Fig 2: Passenger Window Schematic

GM1199362

Courtesy of GENERAL MOTORS CORP.
