Door Lock/Indicator Schematics

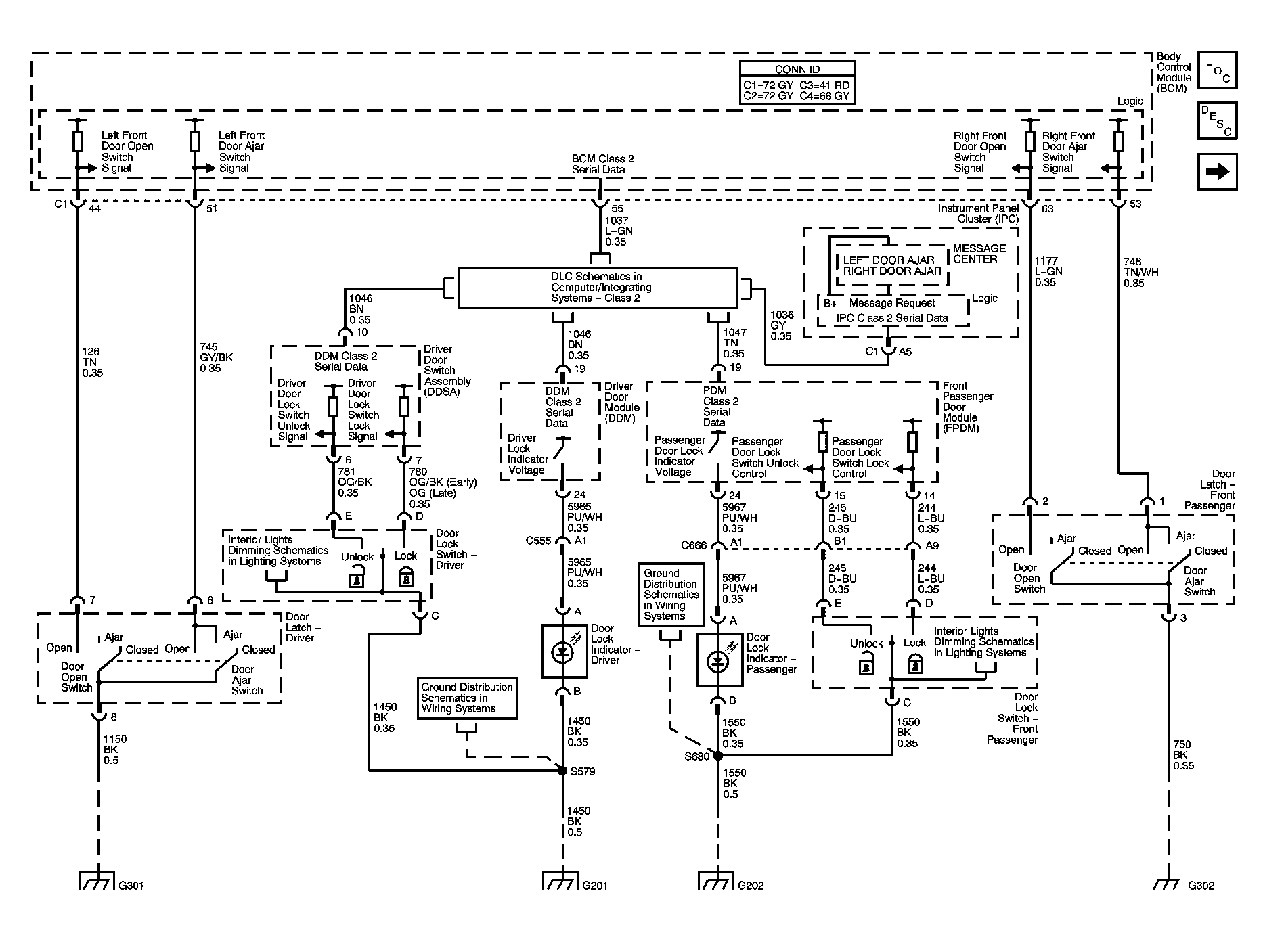

Fig 1: Indicators, Messages, and Ajar/Open/Lock Switches Schematic
GM1199357Courtesy of GENERAL MOTORS CORP.

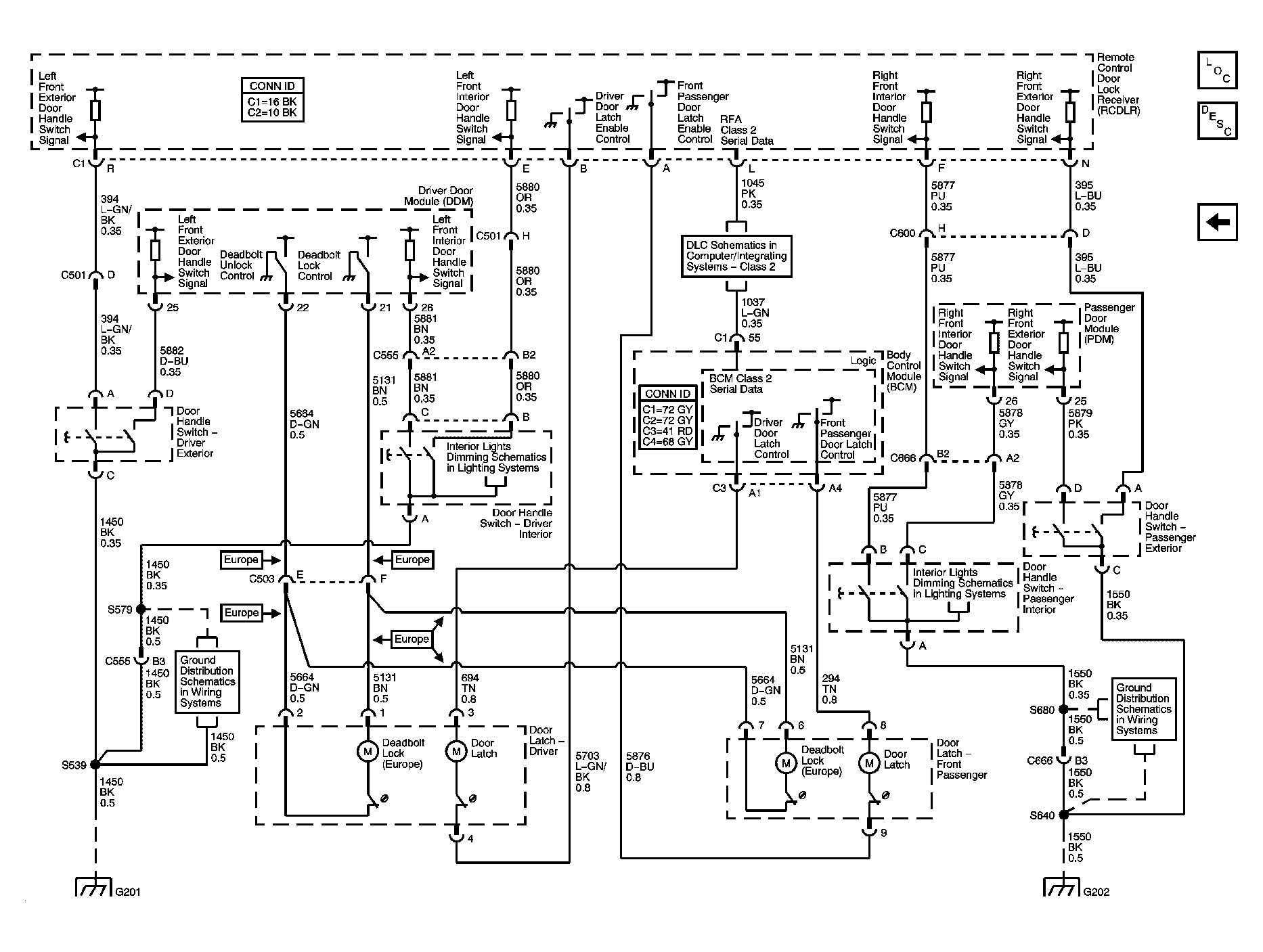

Fig 2: Actuators and Handle Switches Schematic
GM1199359Courtesy of GENERAL MOTORS CORP.
