Navigation System Schematics

Fig 1: Navigation System Except Japan Schematic

GM1205400

Courtesy of GENERAL MOTORS CORP.

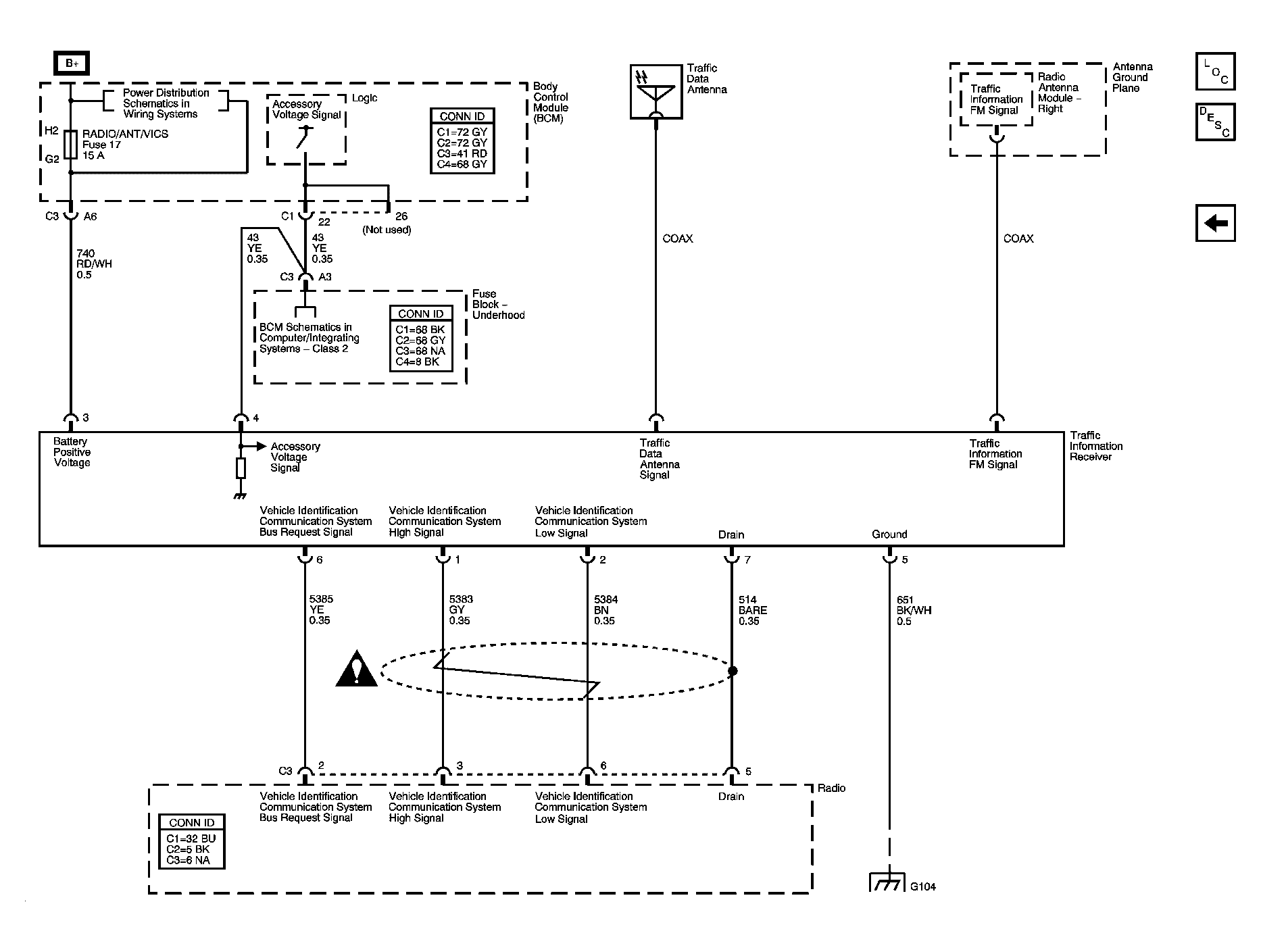

Fig 2: Navigation System Japan Schematic

GM1205401

Courtesy of GENERAL MOTORS CORP.
