Installation Procedure

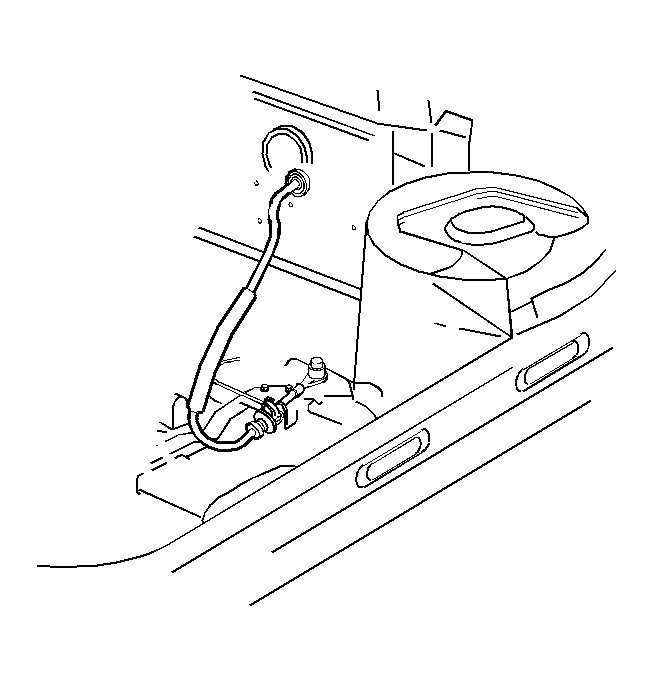

    Fig 1: Identifying Shift Control Cable
    GM98414Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control cable to the vehicle.

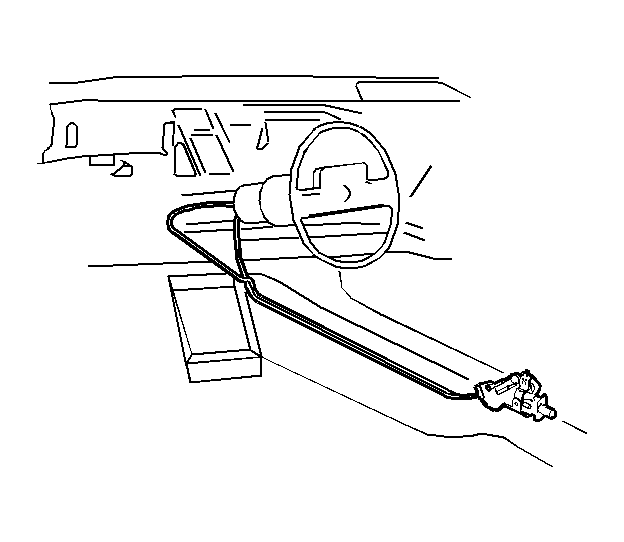

    2. Fig 2: View of Shift Control Cable
    GM98412Courtesy of GENERAL MOTORS CORP.
  2. Install the cable end cap to the floor shift assembly.
  3. Install the console center trim panel. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages and Console.
  4. Install the left closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Left (LHD) or Closeout/Insulator Panel Replacement - Left (RHD) in Instrument Panel, Gages and Console.

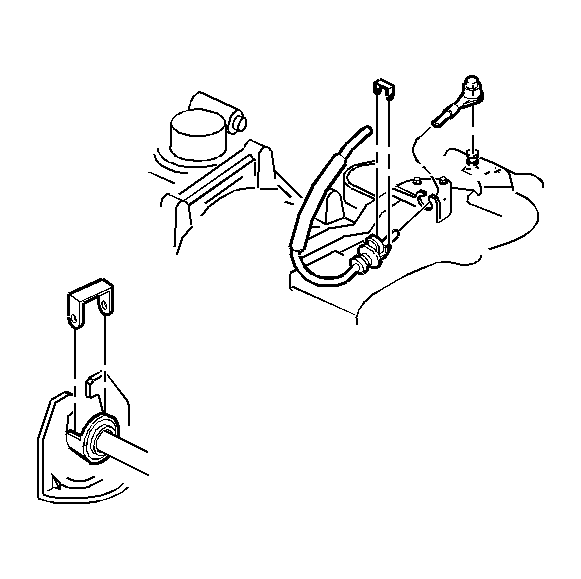

    5. Fig 3: View of Cable End Cap
    GM98413Courtesy of GENERAL MOTORS CORP.
  5. Install the cable into the retaining bracket. Push down on the locking tab.
  6. Install the cable end cap to the transmission position switch lever.
