Seat Belt Component Views

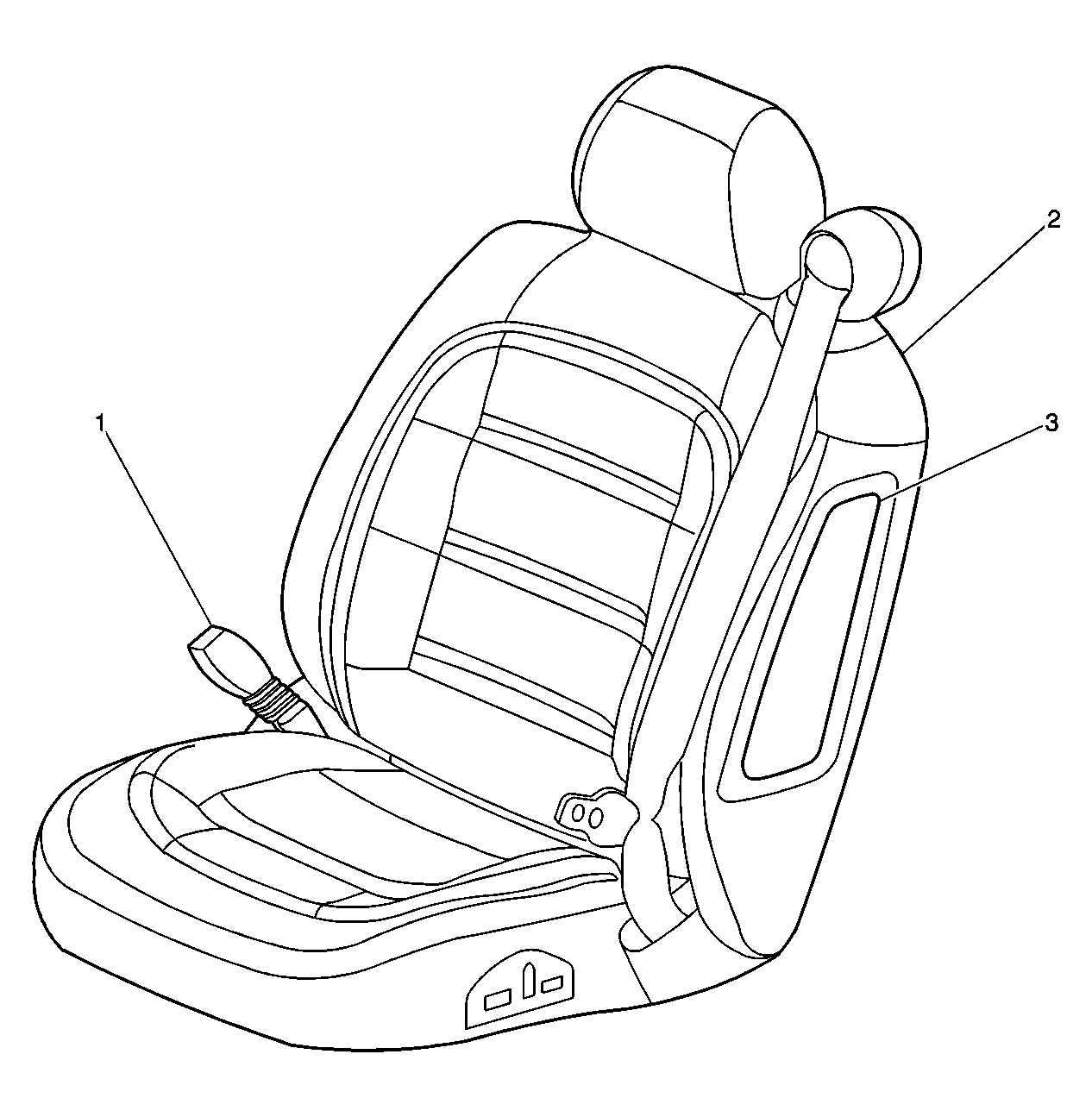

Fig 1: Passenger Compartment, On the Left Front Seat Component View
GM513285Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - LF with Seat Belt Switch Internal (RF similar)
2 Driver Seat (Passenger similar)
3 Inflatable Restraint Side Impact Module - LF (RF similar)
