Outside Mirror Schematics

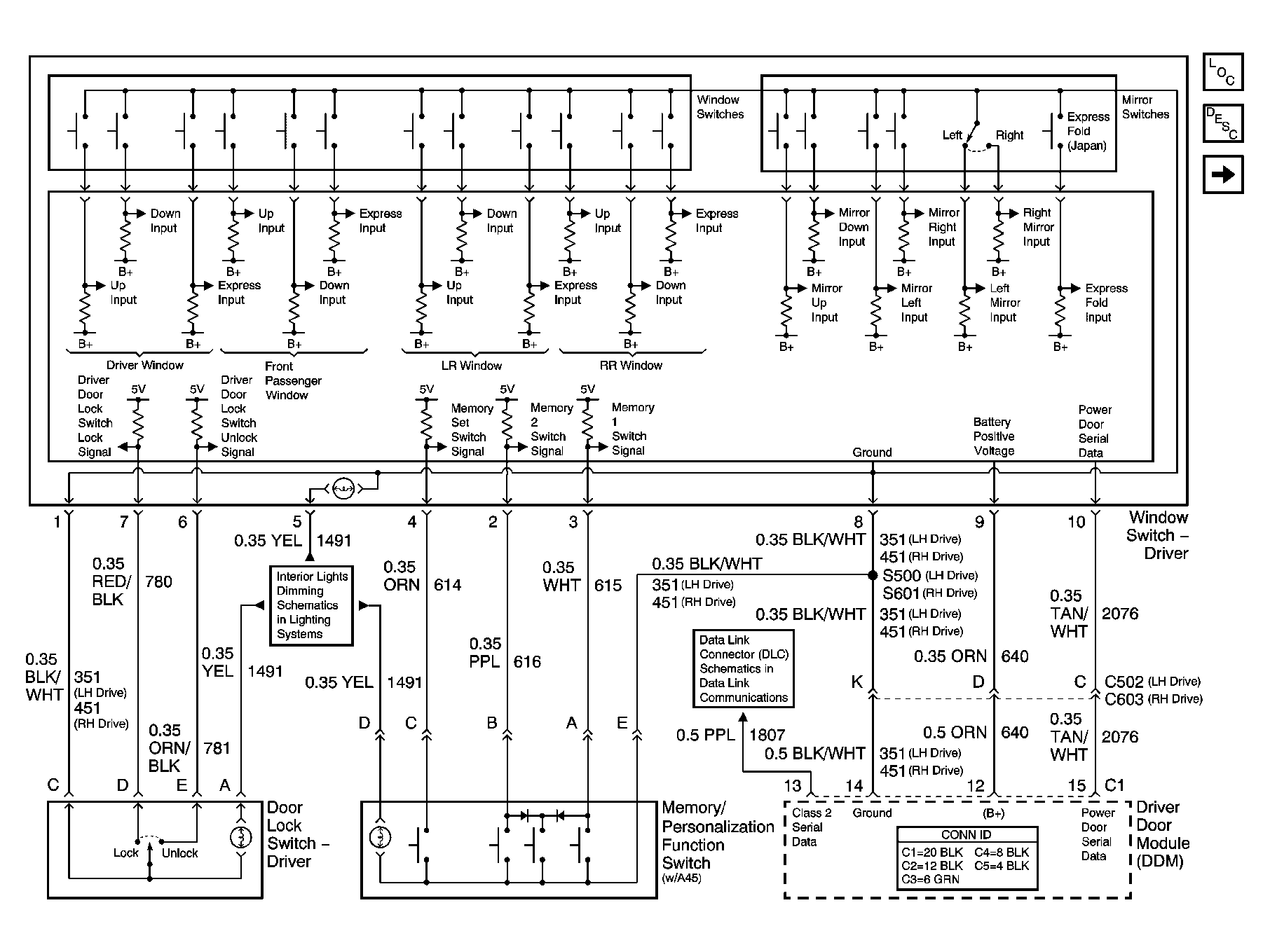

Fig 1: Power Mirror (w/A45) Schematic

GM642381

Courtesy of GENERAL MOTORS CORP.

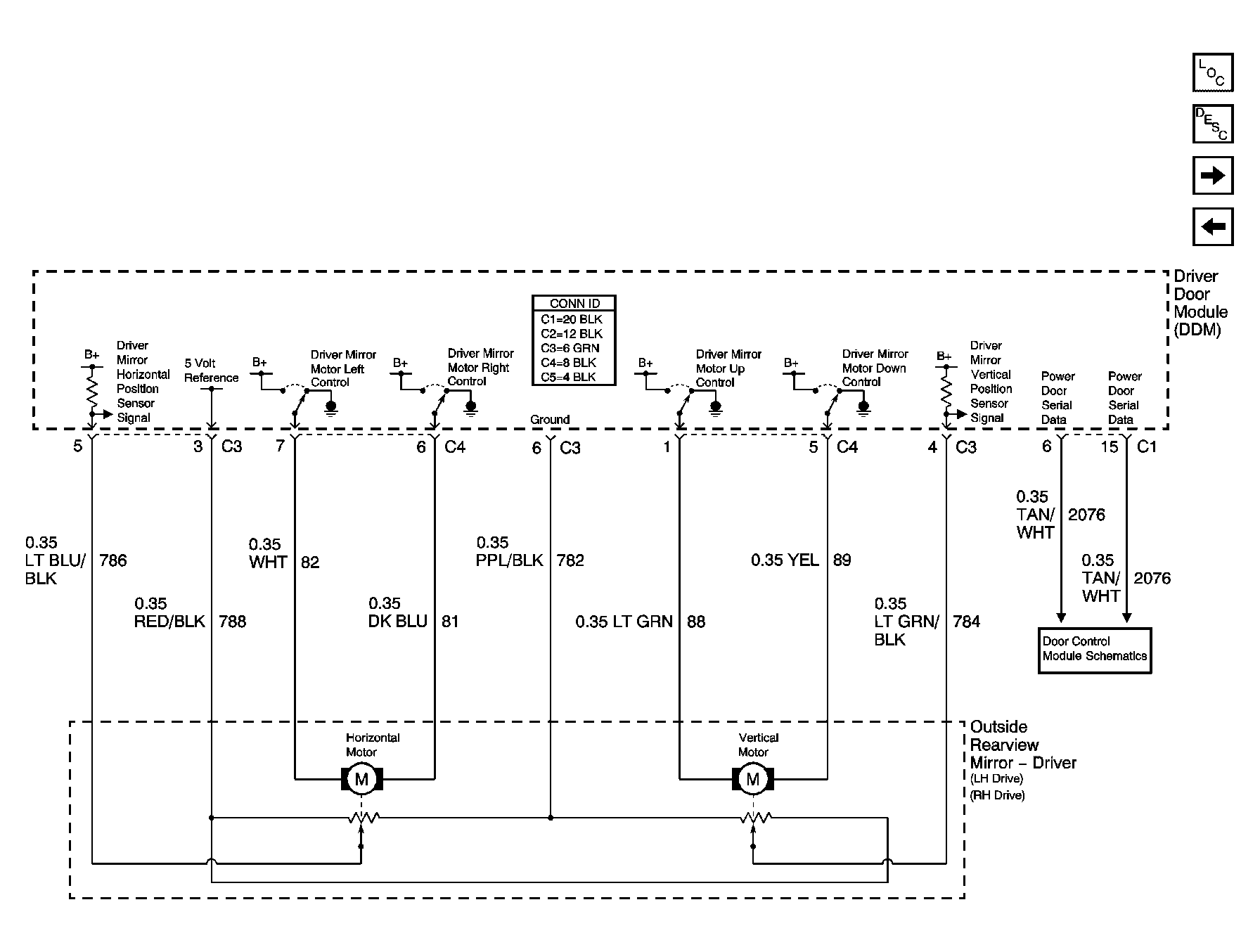

Fig 2: Driver Power Mirror (w/A45) Schematic

GM794875

Courtesy of GENERAL MOTORS CORP.

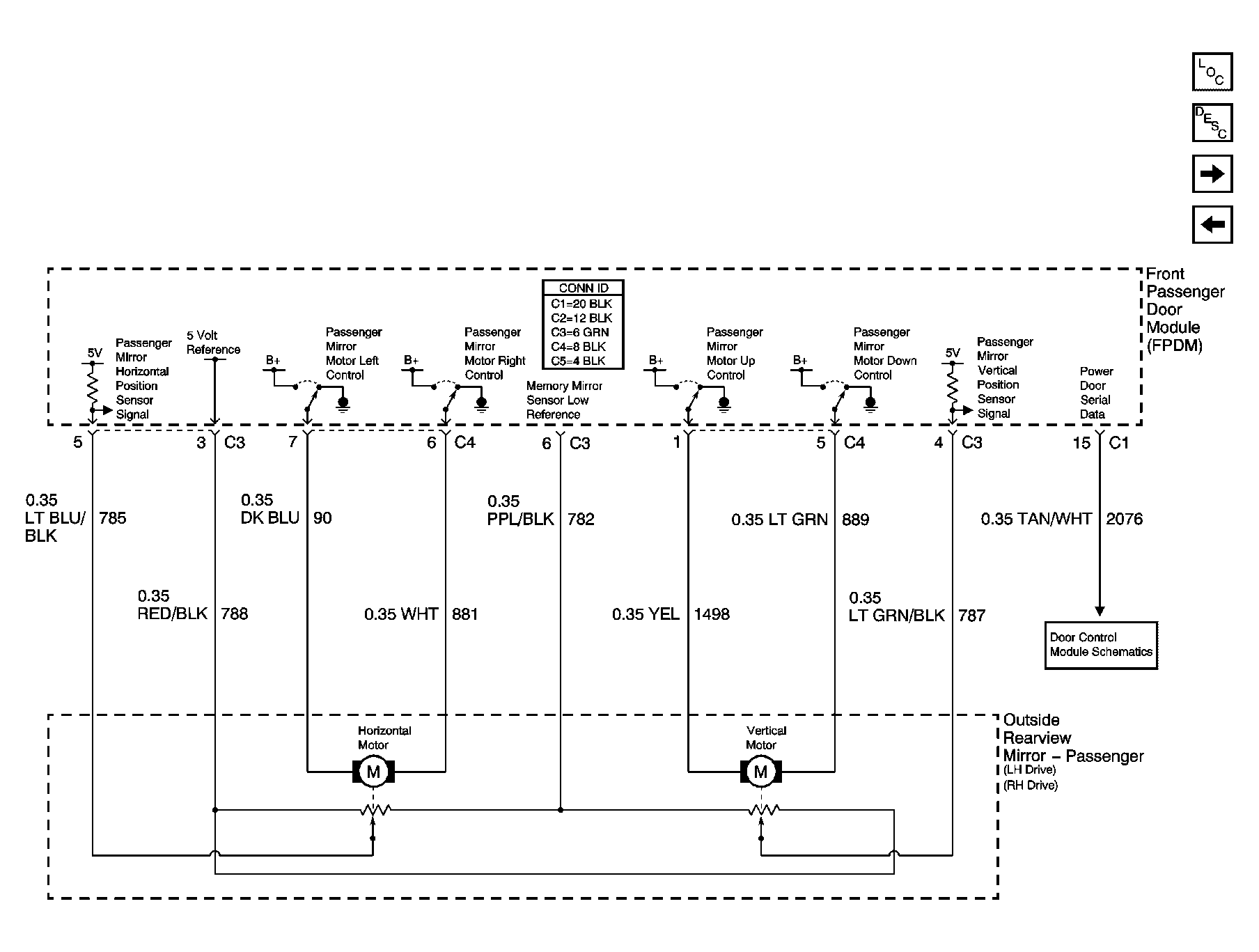

Fig 3: Passenger Power Mirror (w/A45) Schematic

GM794876

Courtesy of GENERAL MOTORS CORP.

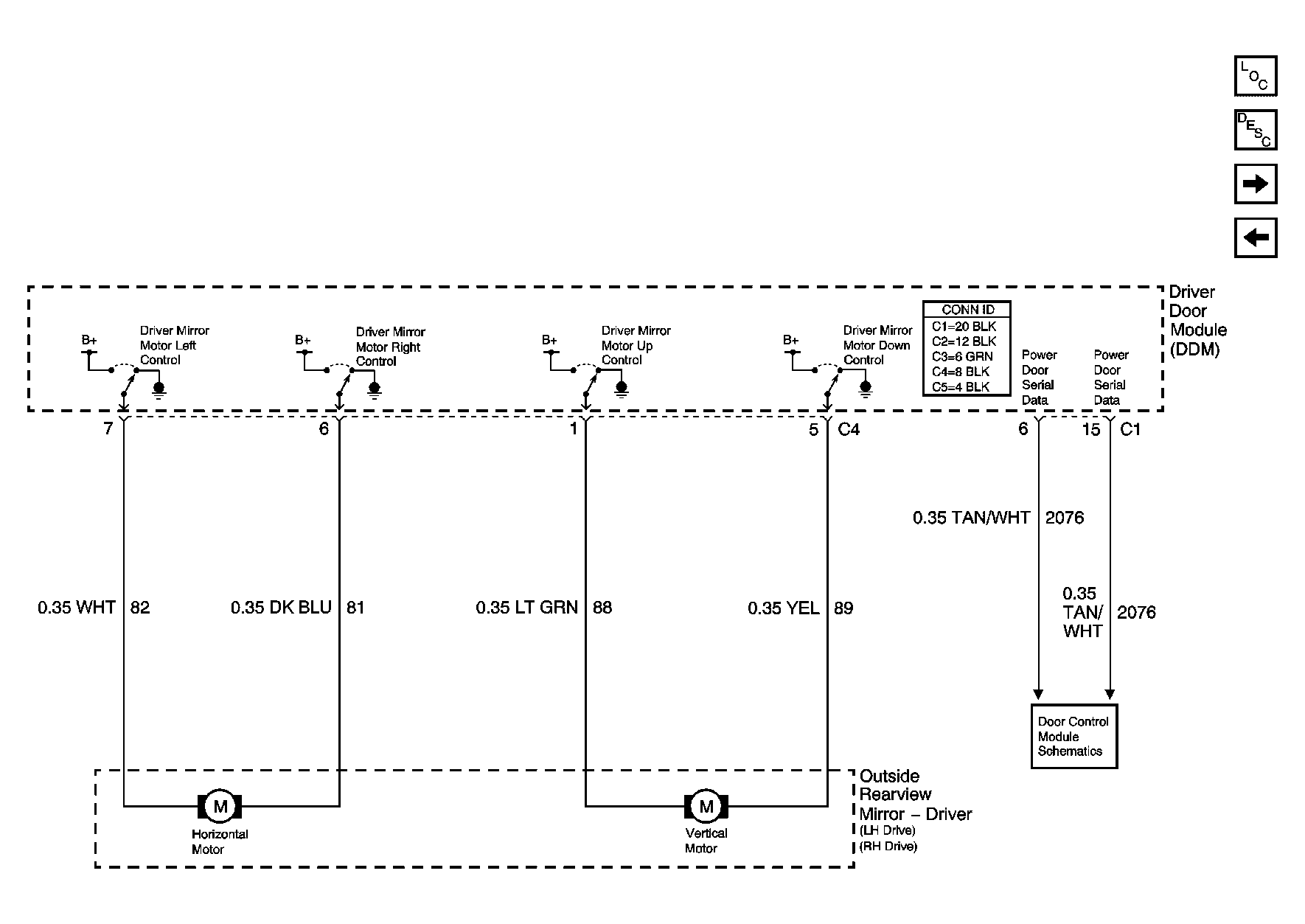

Fig 4: Driver Power Mirror (w/o A45) Schematic

GM794878

Courtesy of GENERAL MOTORS CORP.

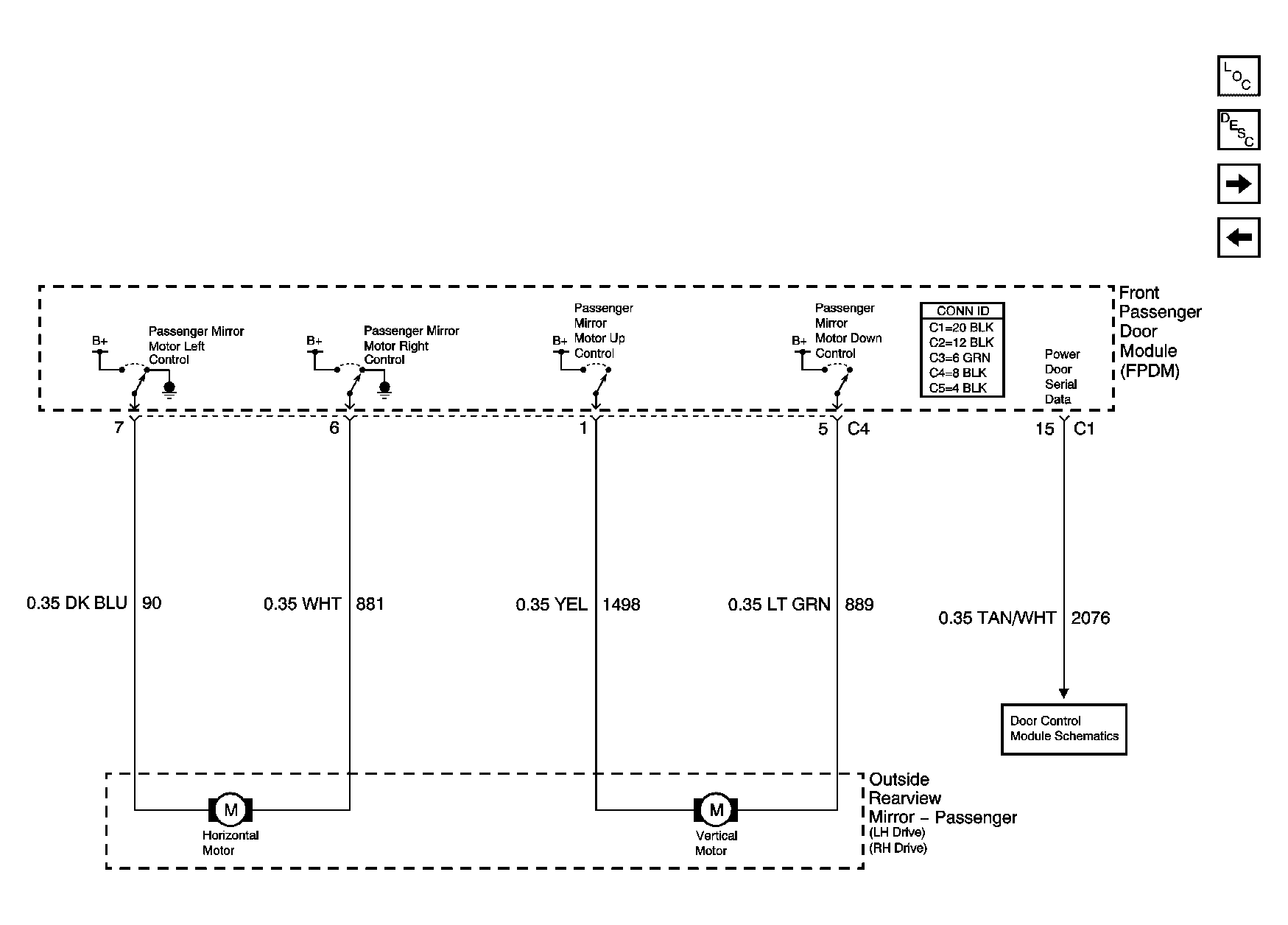

Fig 5: Passenger Power Mirror (w/o A45) Schematic

GM794879

Courtesy of GENERAL MOTORS CORP.

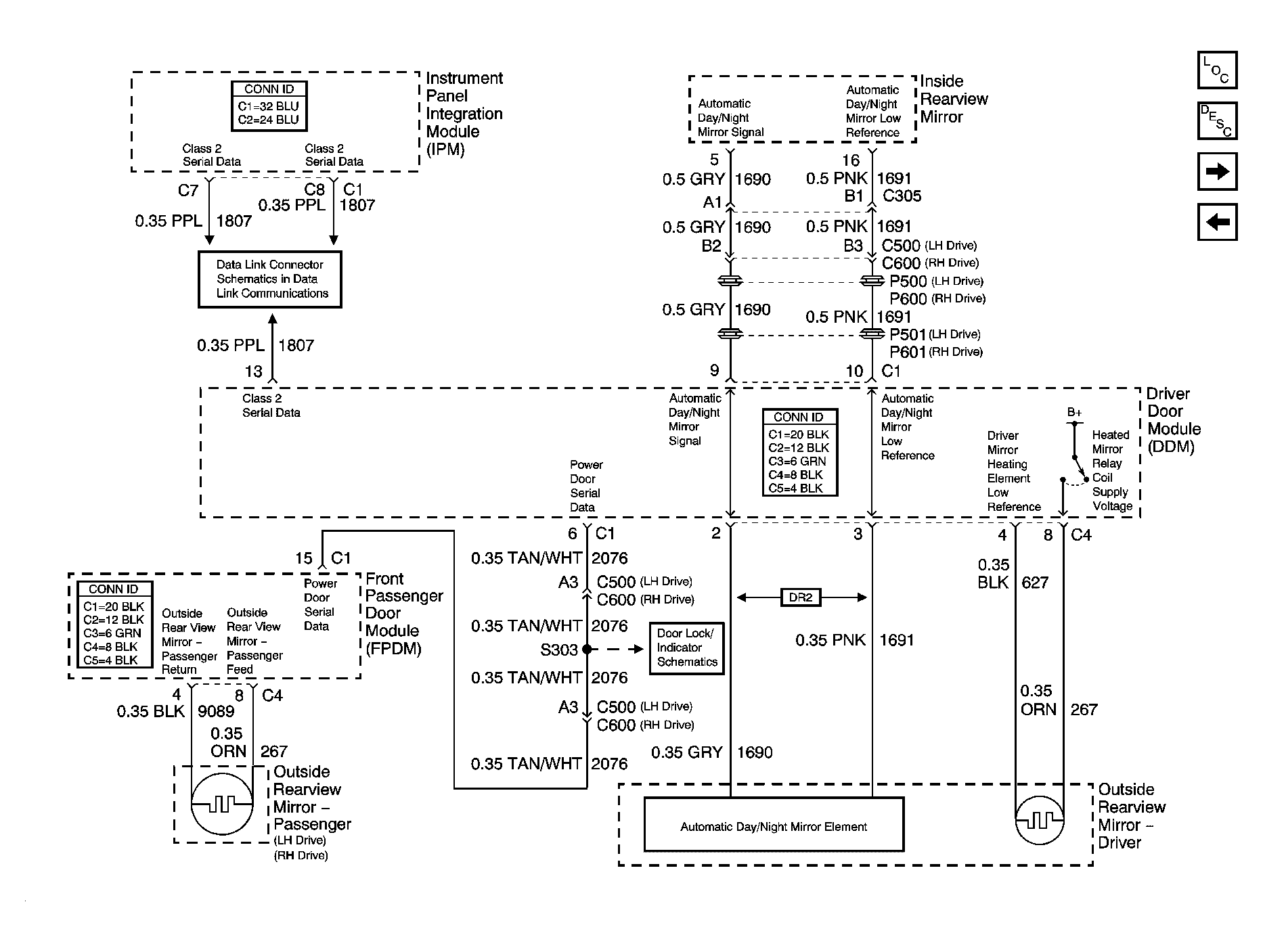

Fig 6: Heated Mirrors Schematic

GM794880

Courtesy of GENERAL MOTORS CORP.

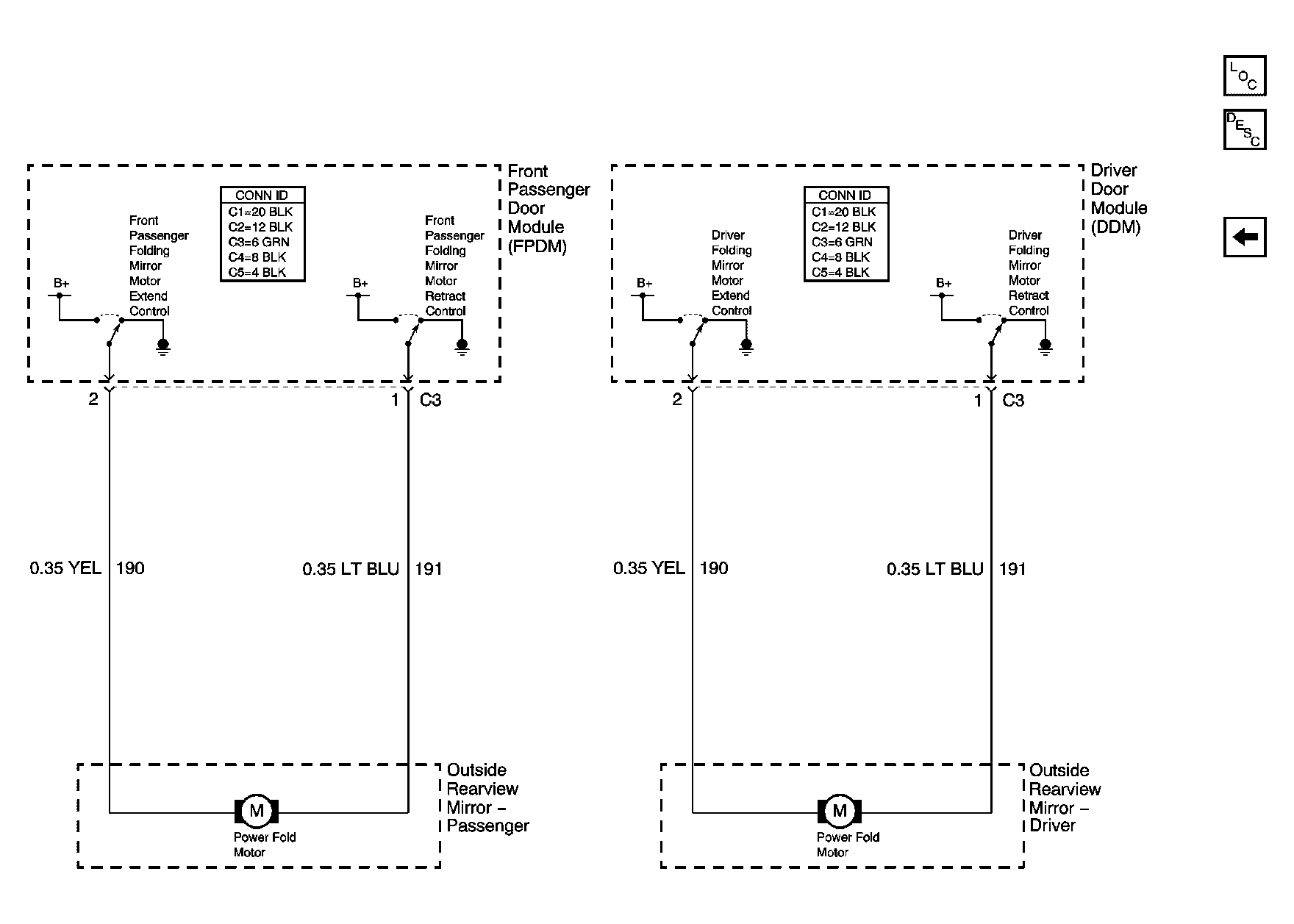

Fig 7: Express Folding Mirrors Schematic

GM794882

Courtesy of GENERAL MOTORS CORP.
