Door Lock/Indicator Schematics

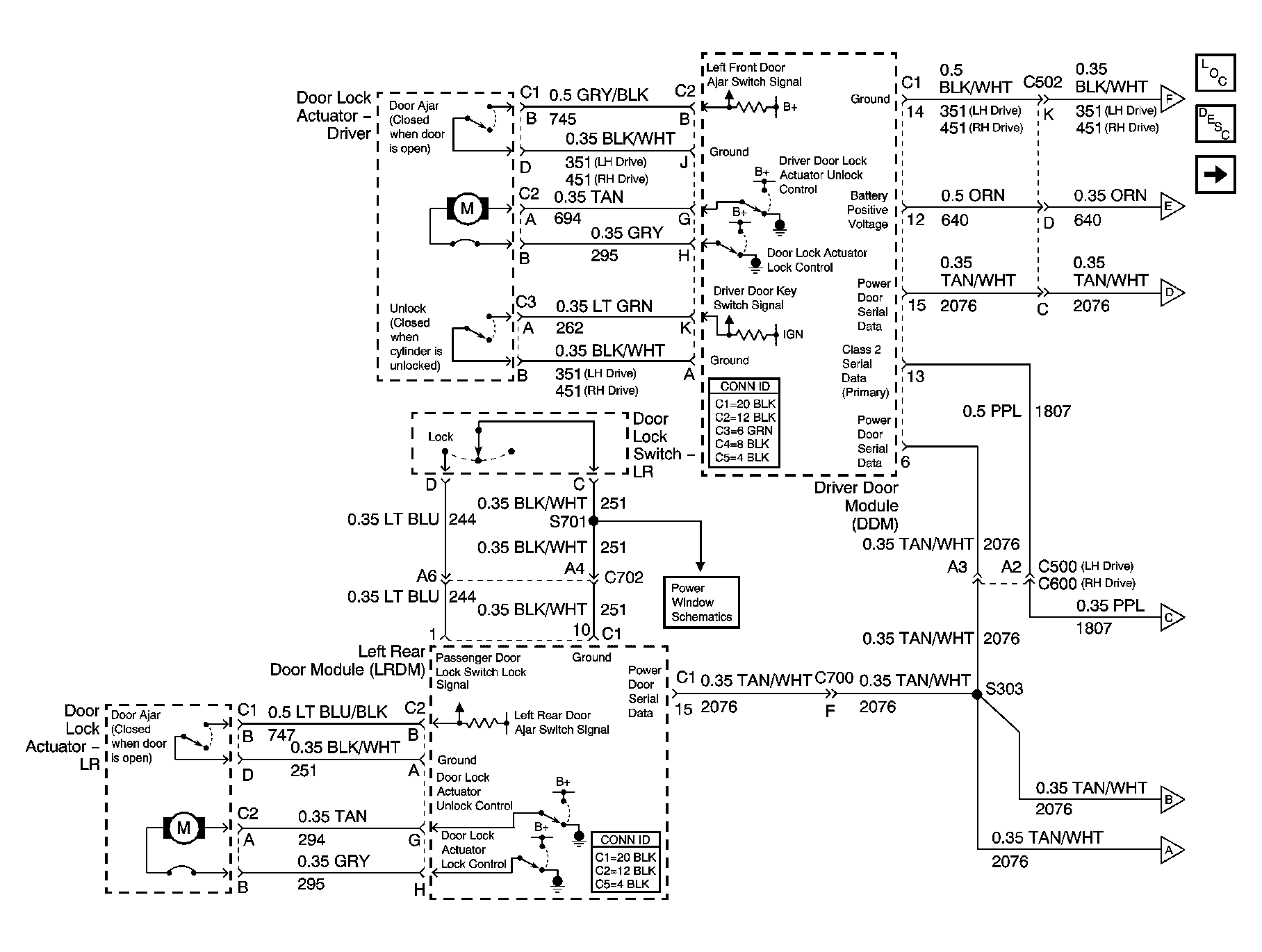

Fig 1: Driver and LR Doors Schematic

GM794865

Courtesy of GENERAL MOTORS CORP.

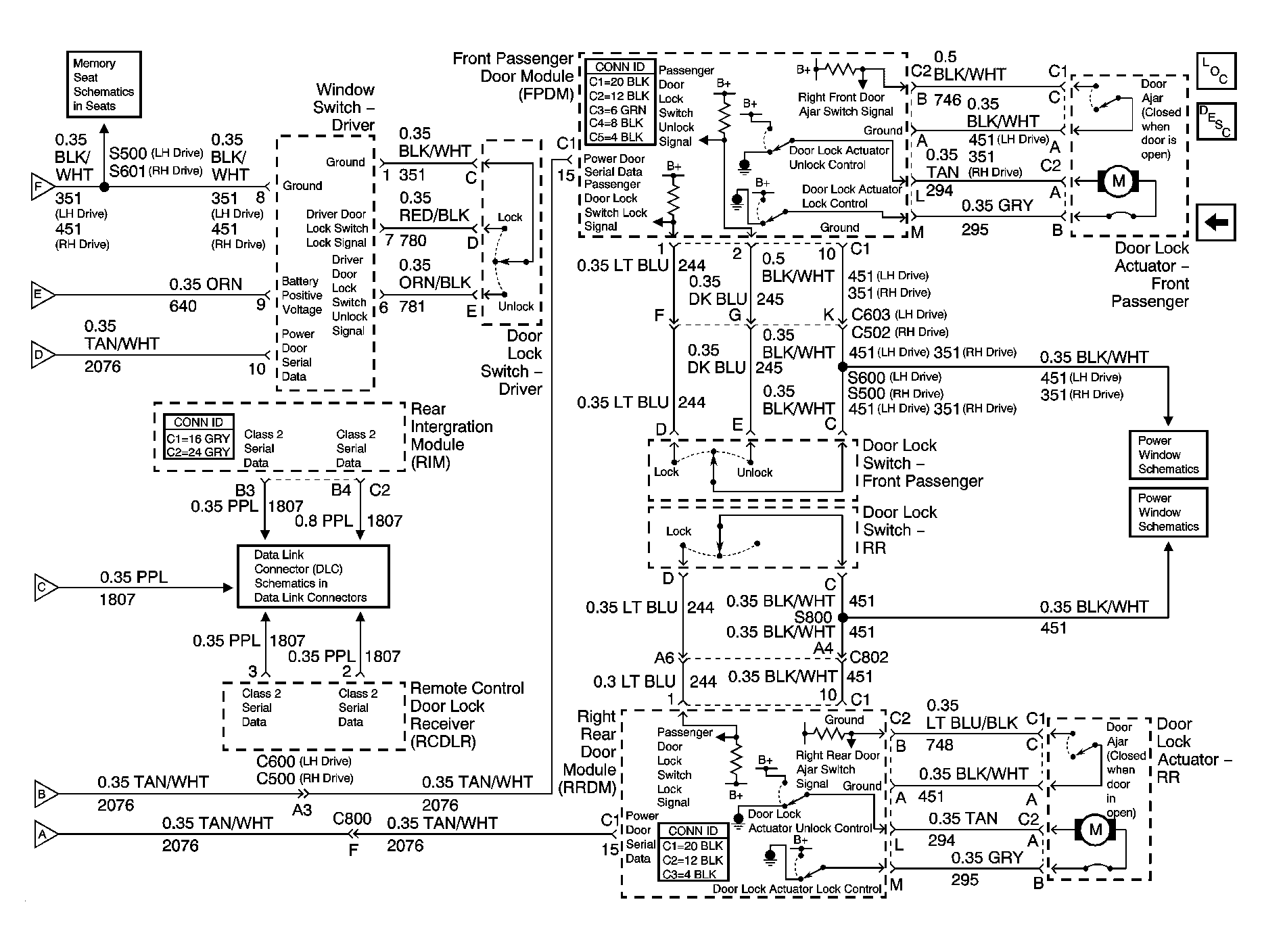

Fig 2: Front Passenger and RR Doors Schematic

GM794866

Courtesy of GENERAL MOTORS CORP.
