Removal Procedure

  1. Open the door.
  2. Remove the sill plate. Refer to Door Sill Plate Replacement - Front in Interior Trim.
  3. Remove the hinge pillar trim panel. Refer to Trim Panel Replacement - Hinge Pillar in Interior Trim.
  4. Remove the windshield pillar molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  5. Remove the weatherstrip from the rear side door opening. Peel the unit away from channel, pulling the weatherstrip from the pinchweld flange.

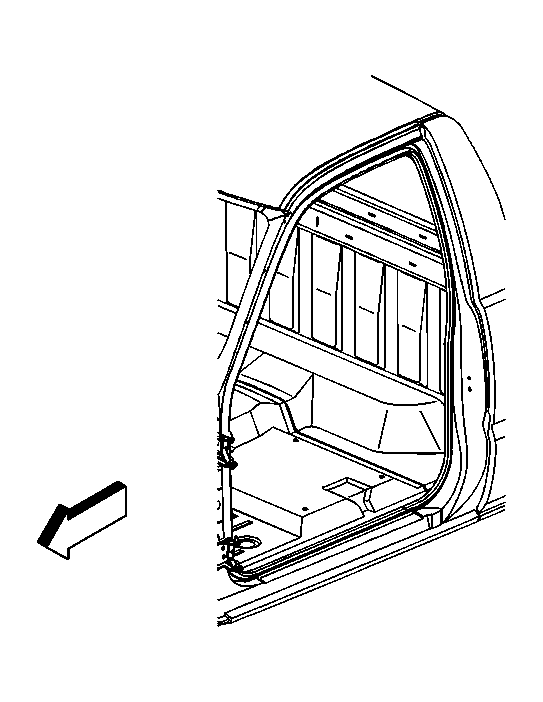

    6. Fig 1: Removing Front Door Opening Weatherstrip
    GM373633Courtesy of GENERAL MOTORS CORP.
