Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door (With YE9 Early Production)  or Trim Panel Replacement - Side Front Door (With YE9 Late Production) .
  2. Remove inside door handle. Refer to Door Handle Replacement - Inside .
  3. Note location of wiring and remove through deflector.
  4. Using a flat-bladed tool, separate the bond between the sealer and the door.
  5. Pull the waterproof sealing tape from the deflector.
  6. Remove the water deflector.

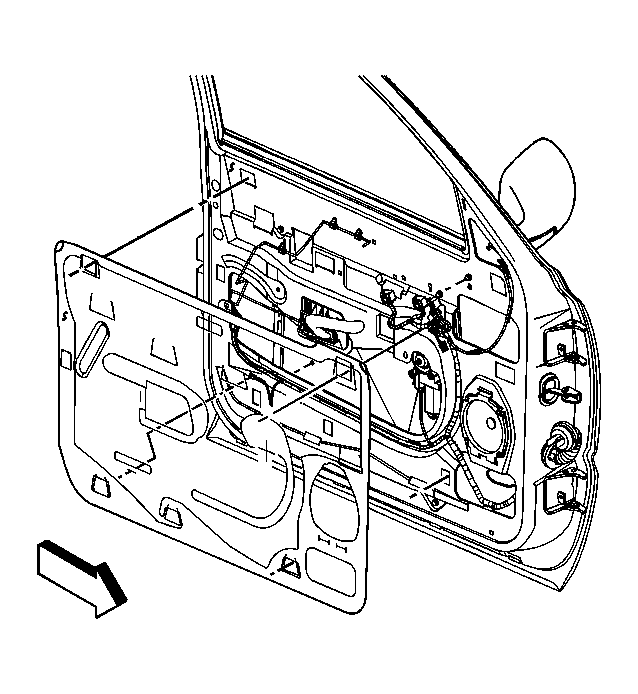

    7. Fig 1: Removing Front Door Water Deflector
    GM348496Courtesy of GENERAL MOTORS CORP.
