Installation Procedure

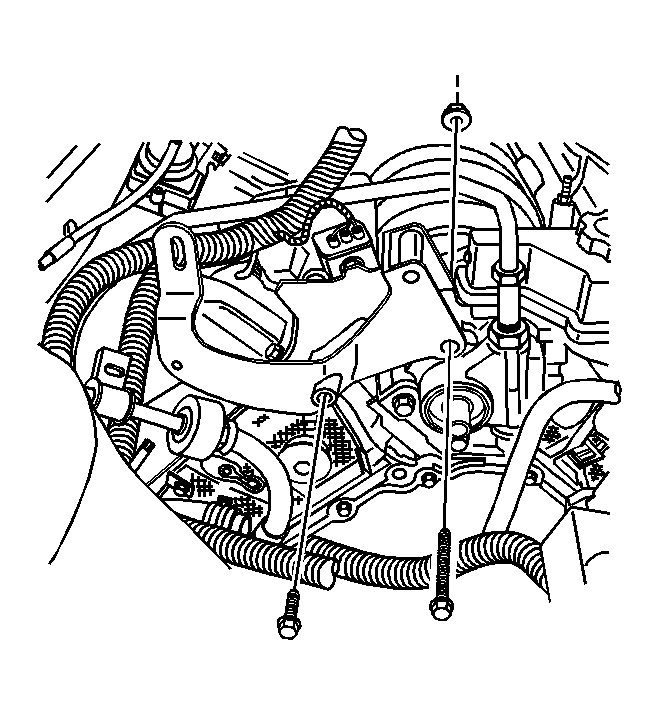

    Fig 1: View Of Auxiliary Generator Bracket & Bolts
    GM761052Courtesy of GENERAL MOTORS CORP.
  1. Position the auxiliary generator bracket to the engine.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts securing the auxiliary generator bracket to the cylinder head and the power steering pump.

    Tighten:  Tighten the auxiliary generator bracket mounting bolts to 30 N.m (22 lb ft).

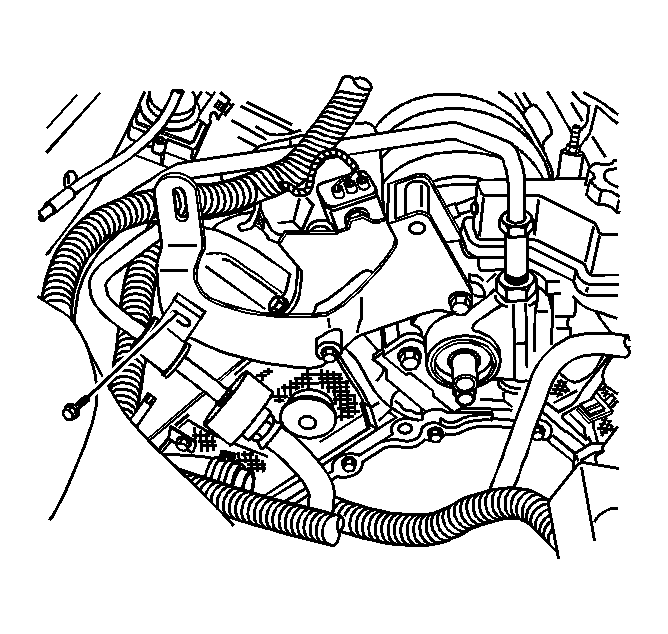

    3. Fig 2: View Of Power Steering Pressure Hose & Bolt
    GM761050Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt securing the power steering pressure hose to the auxiliary generator bracket.

    Tighten:  Tighten the power steering pressure hose to auxiliary generator bracket bolt to 17 N.m (13 lb ft).

  4. Install the power steering pump pulley. Refer to Power Steering Pulley Replacement in Power Steering System.
  5. Install the auxiliary generator. Refer to Generator Replacement - Auxiliary .
