Power Window Schematics

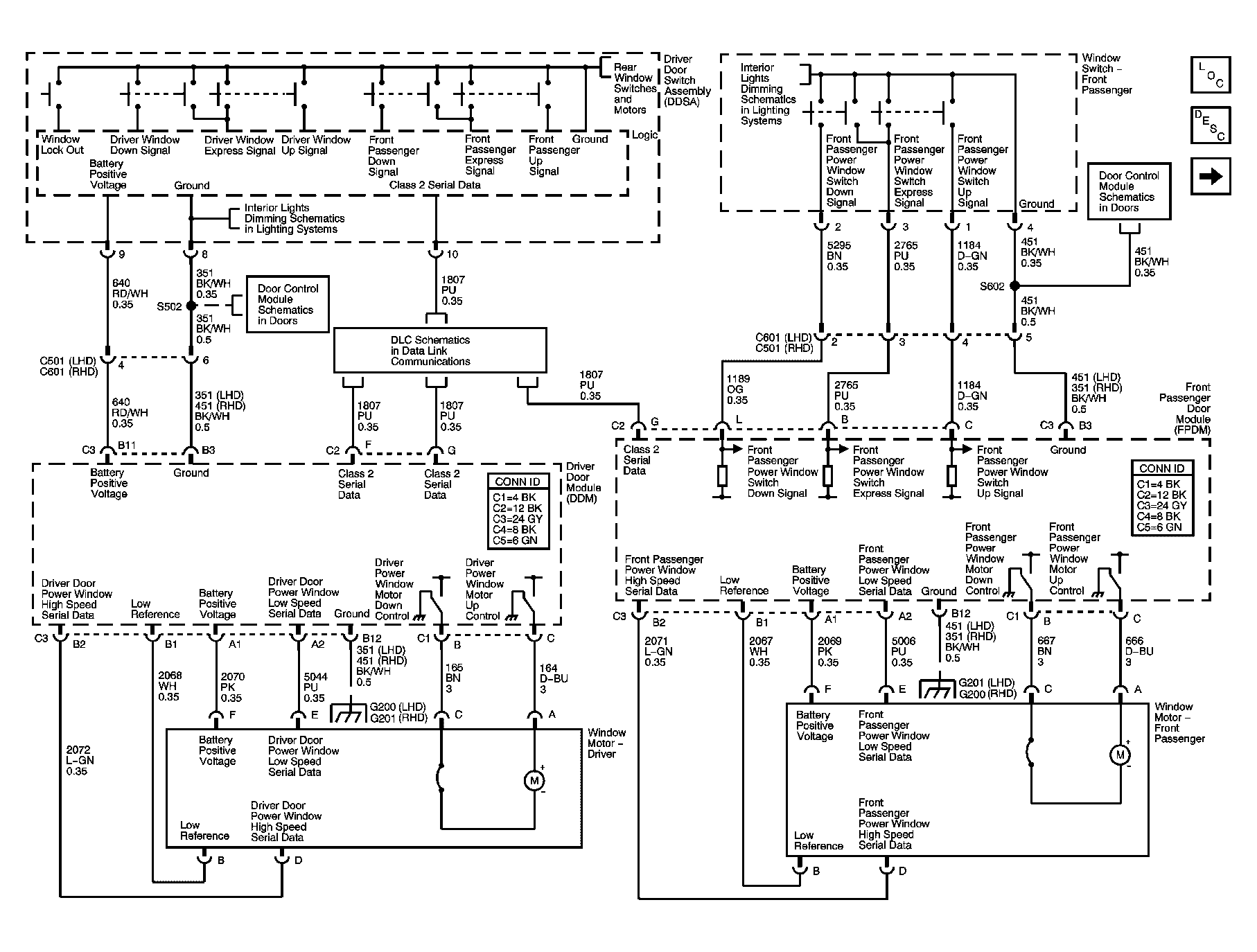

Fig 1: Front Power Window Switches and Motors

GM1317521

Courtesy of GENERAL MOTORS CORP.

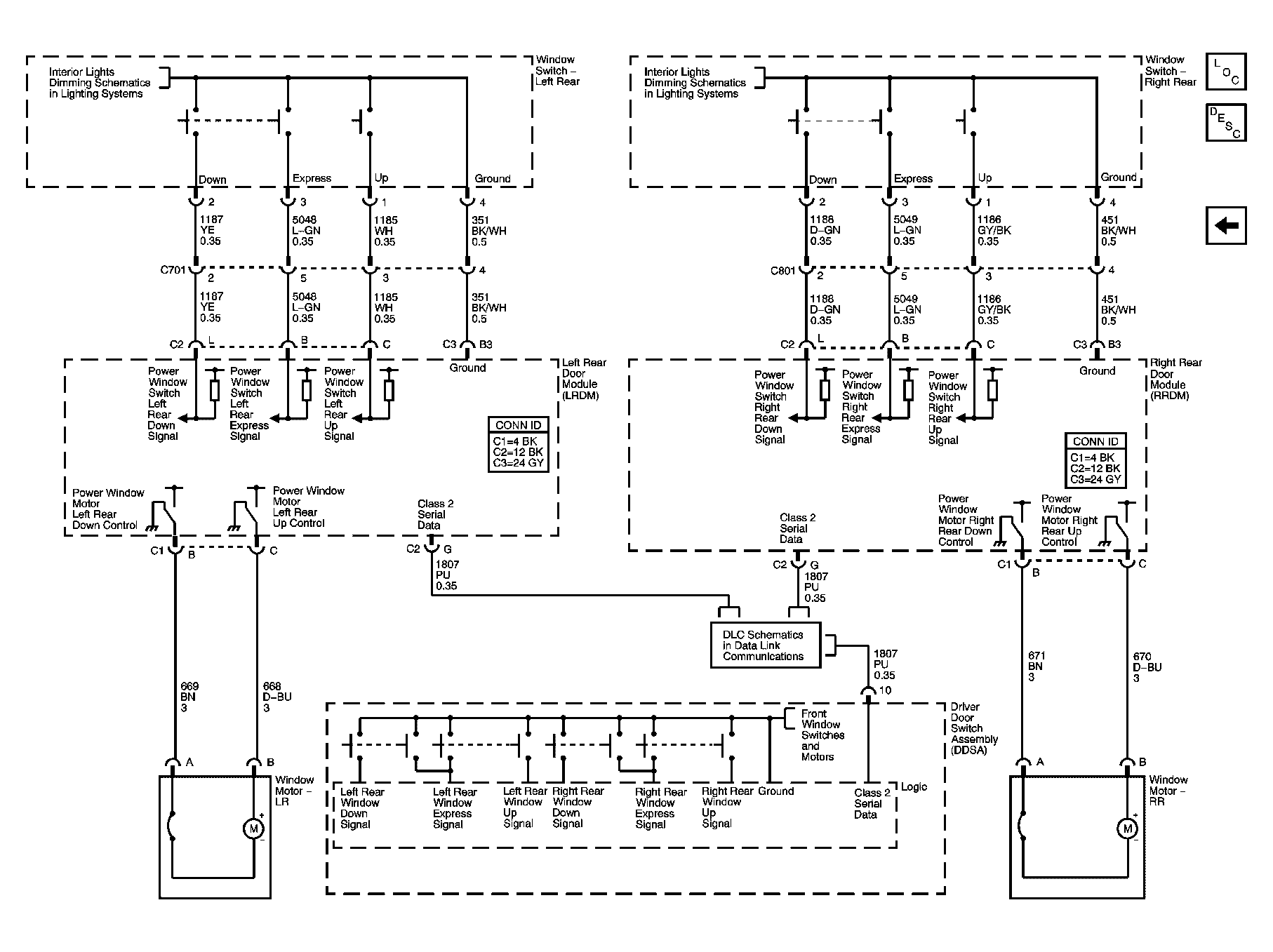

Fig 2: Rear Power Window Switches and Motors

GM1317527

Courtesy of GENERAL MOTORS CORP.
