Power Window Schematics (Rear Power Windows)

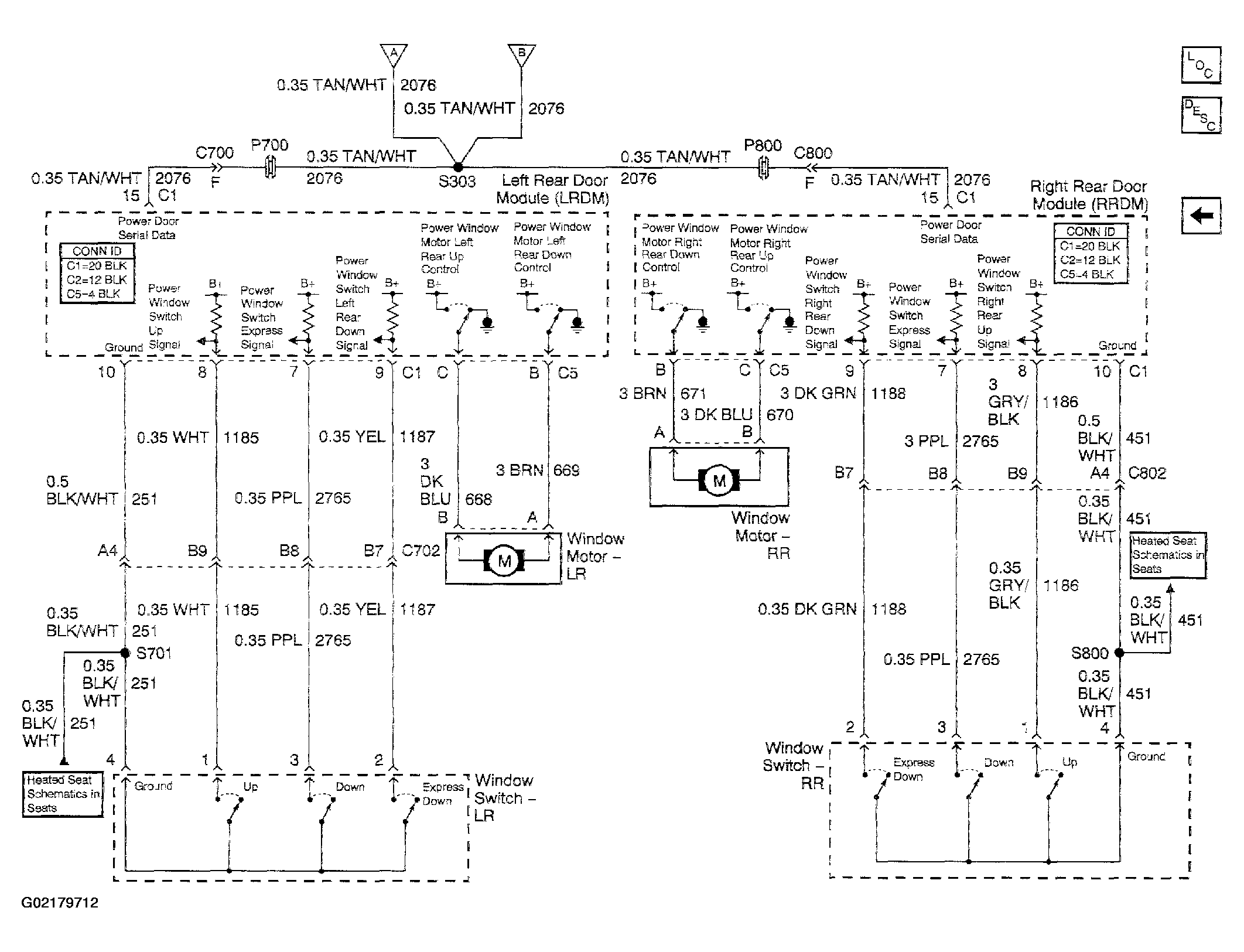

Fig 1: Power Window Schematics (Rear Power Windows)

G02179712

Courtesy of GENERAL MOTORS CORP.
