Cruise Control Inoperative/Malfunctioning

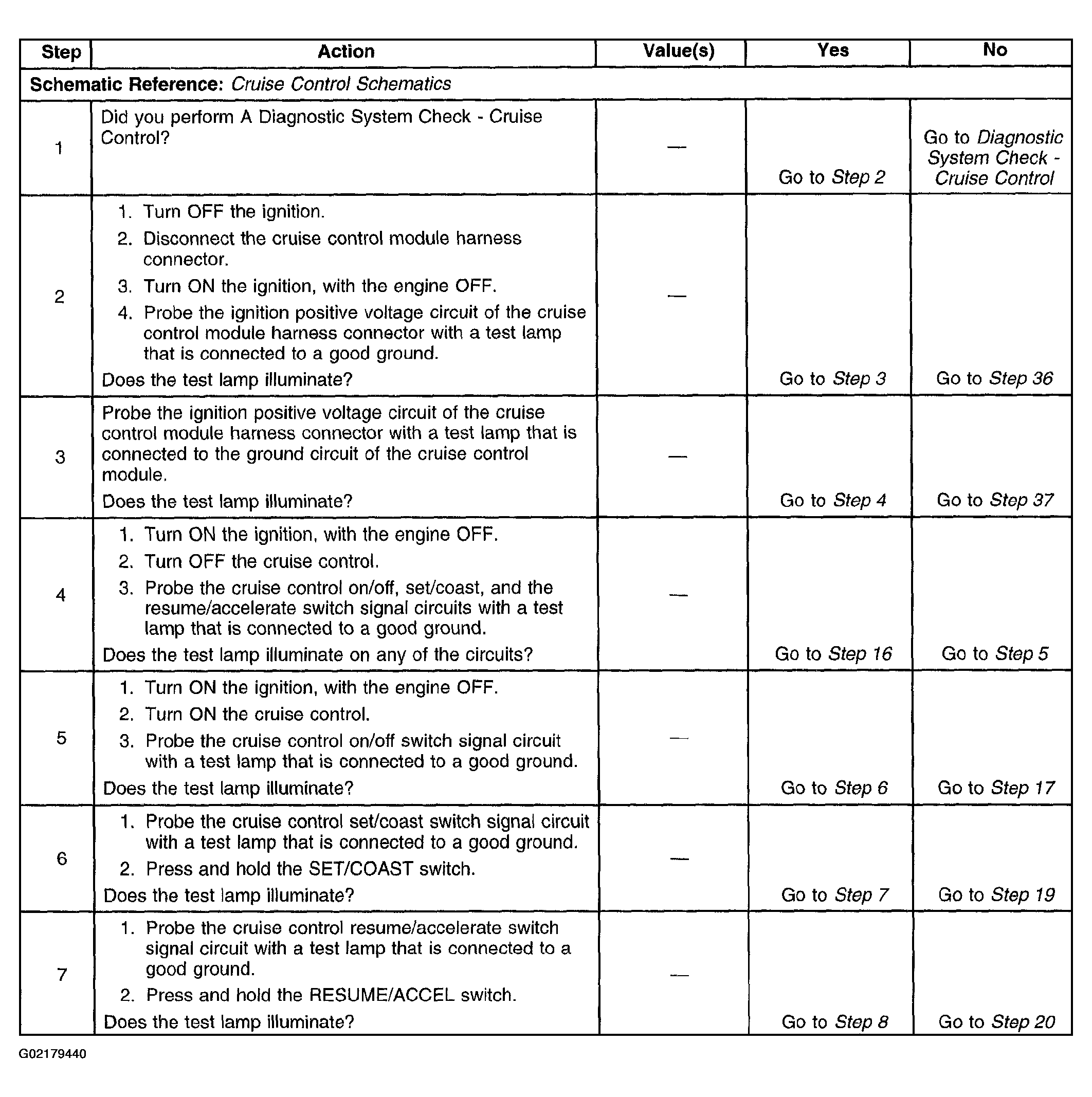

Fig 1: Cruise Control Inoperative/Malfunctioning (Steps 1 - 7)

Courtesy of GENERAL MOTORS CORP.

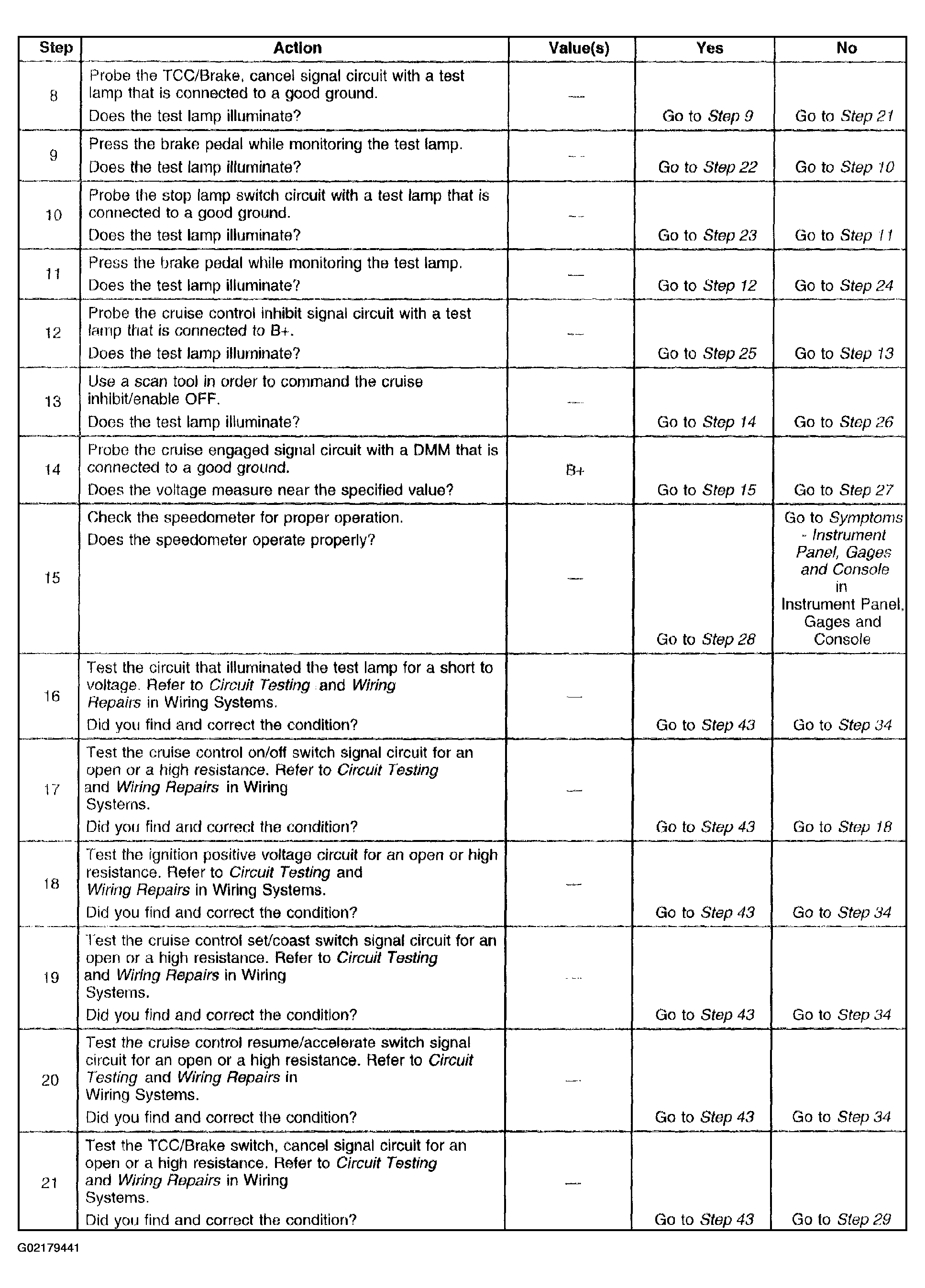

Fig 2: Cruise Control Inoperative/Malfunctioning (Steps 8 - 21)

Courtesy of GENERAL MOTORS CORP.

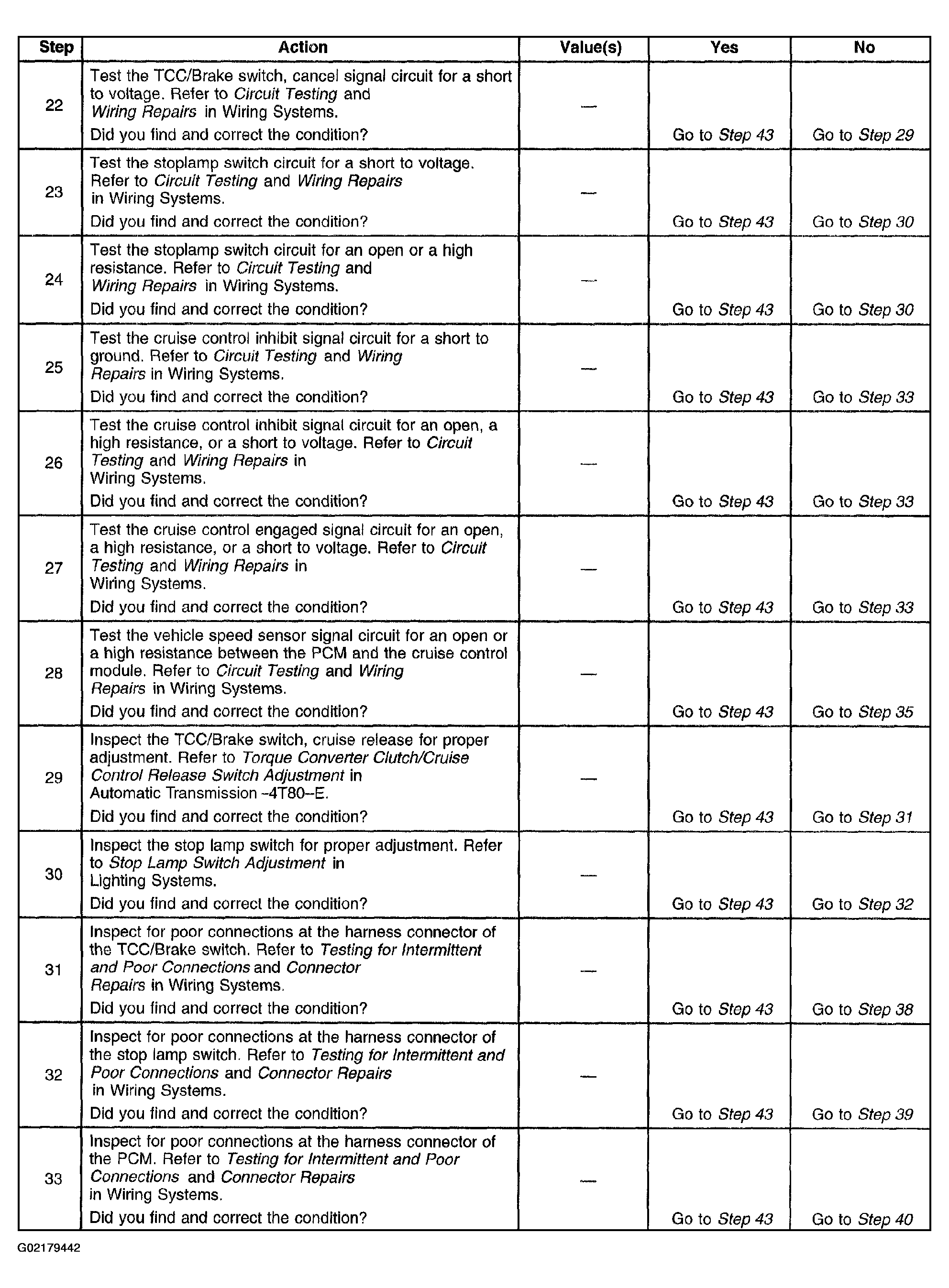

Fig 3: Cruise Control Inoperative/Malfunctioning (Steps 22 - 33)

Courtesy of GENERAL MOTORS CORP.

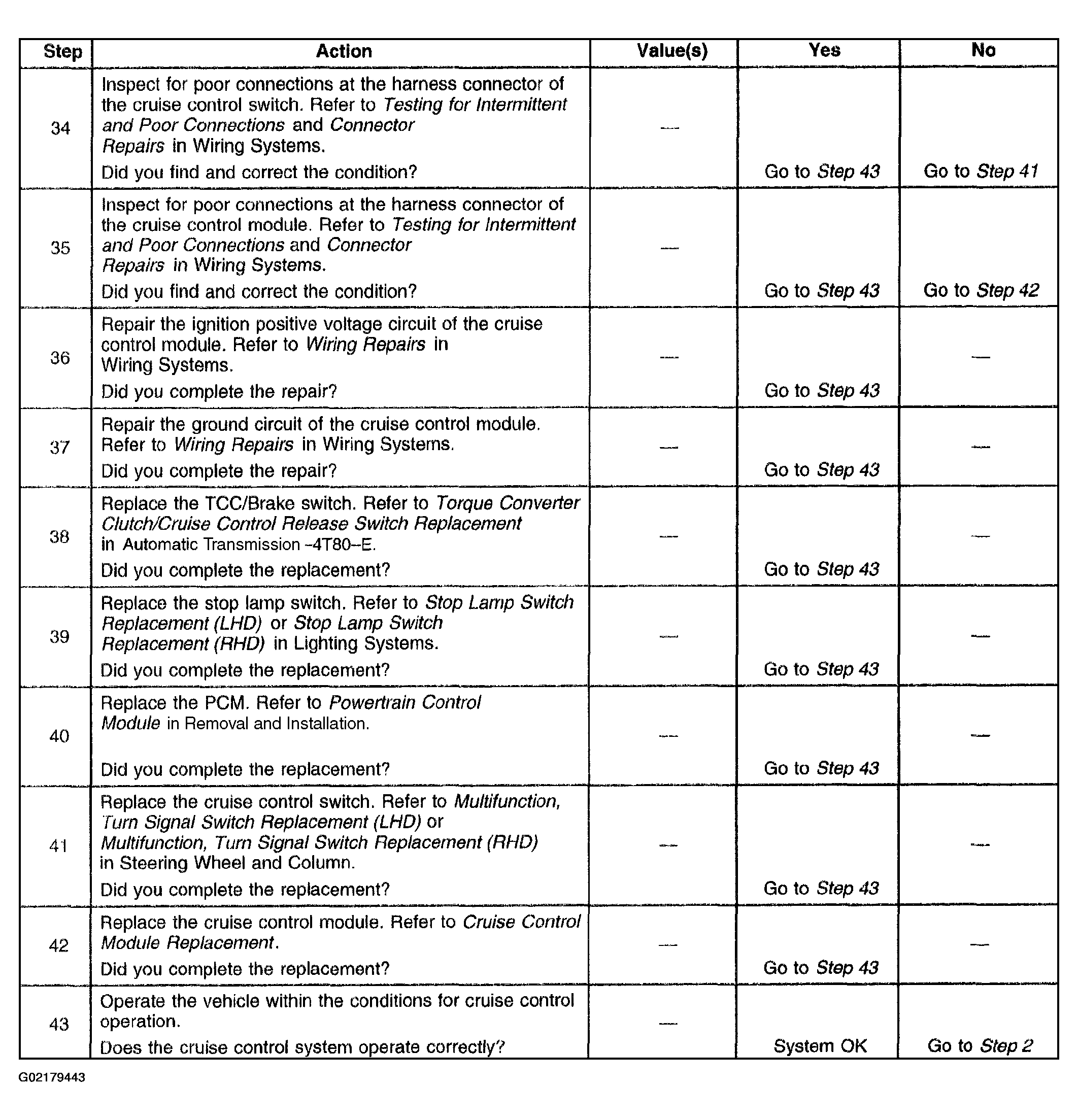

Fig 4: Cruise Control Inoperative/Malfunctioning (Steps 34 - 43)

Courtesy of GENERAL MOTORS CORP.
